Toyota CAMRY 点火线圈和火花塞 /电热塞 — Figure 1901

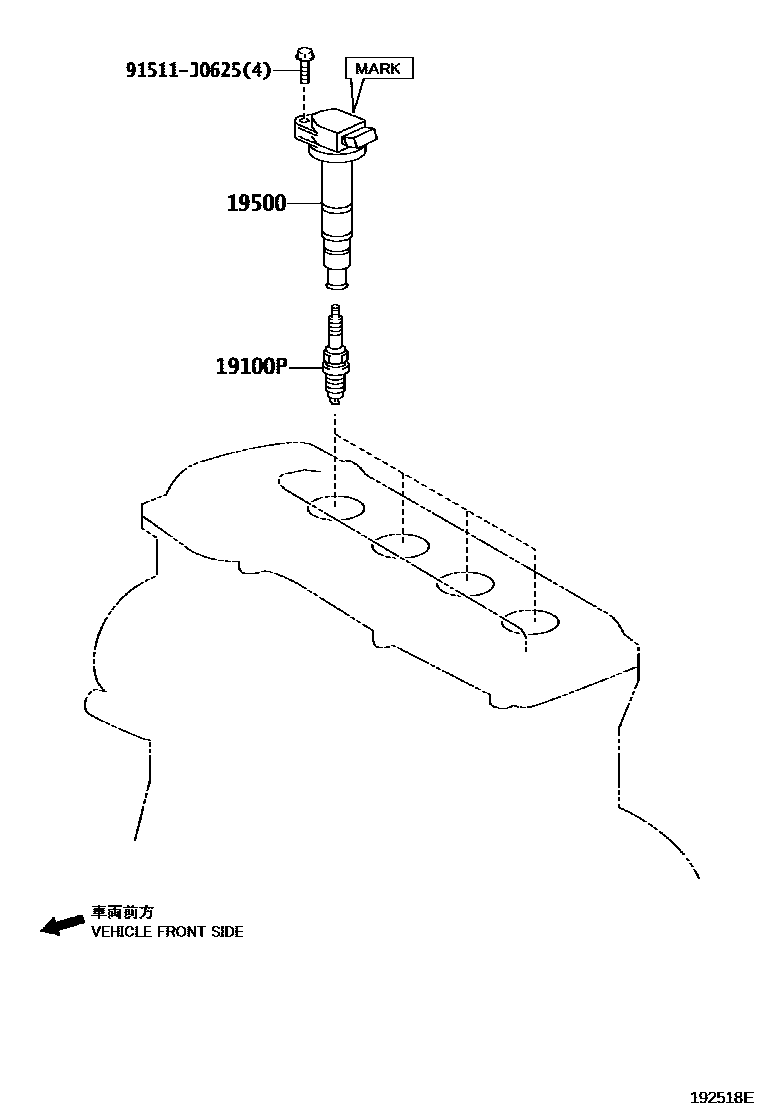

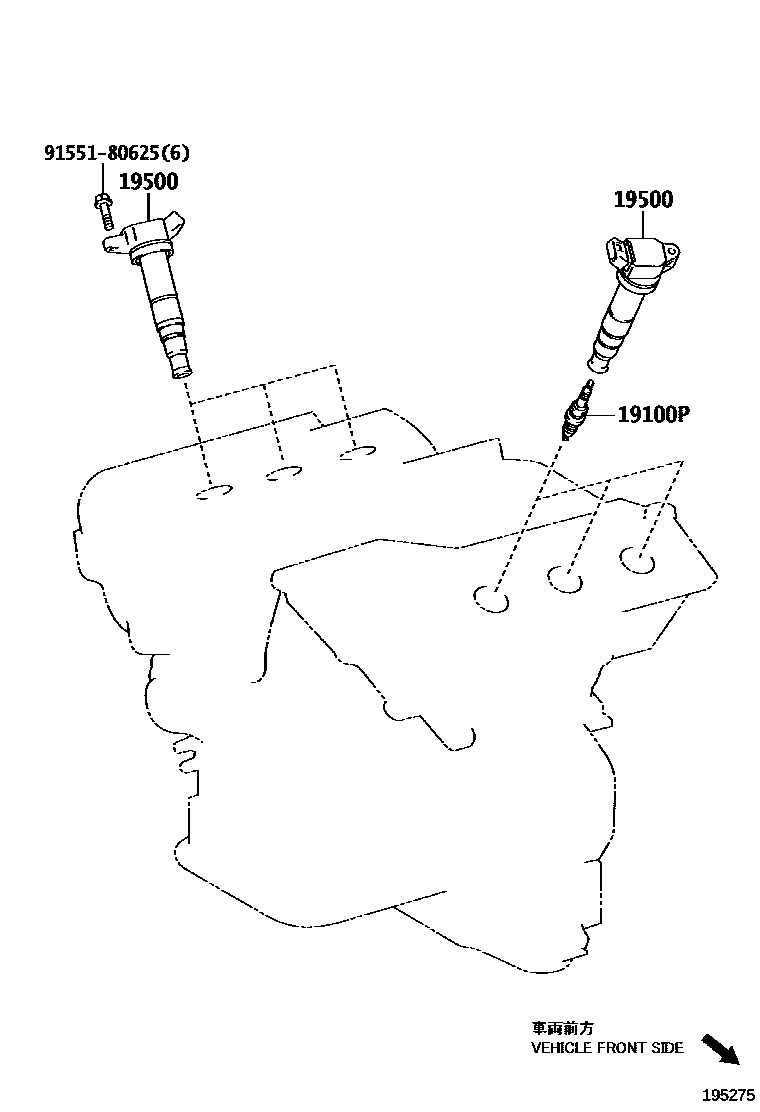

Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01210 · 90919-01237 · 90919-01240 · 90919-01247 · 90919-T1010 · 90919-T1012 |
| 19500 | Ignition coil assembly | 90919-02244 · 90919-02248 · 90919-02251 · 90919-02255 · 90919-02260 · 90919-02266 |
