Toyota CAMRY vacuum tube — Figure 1708

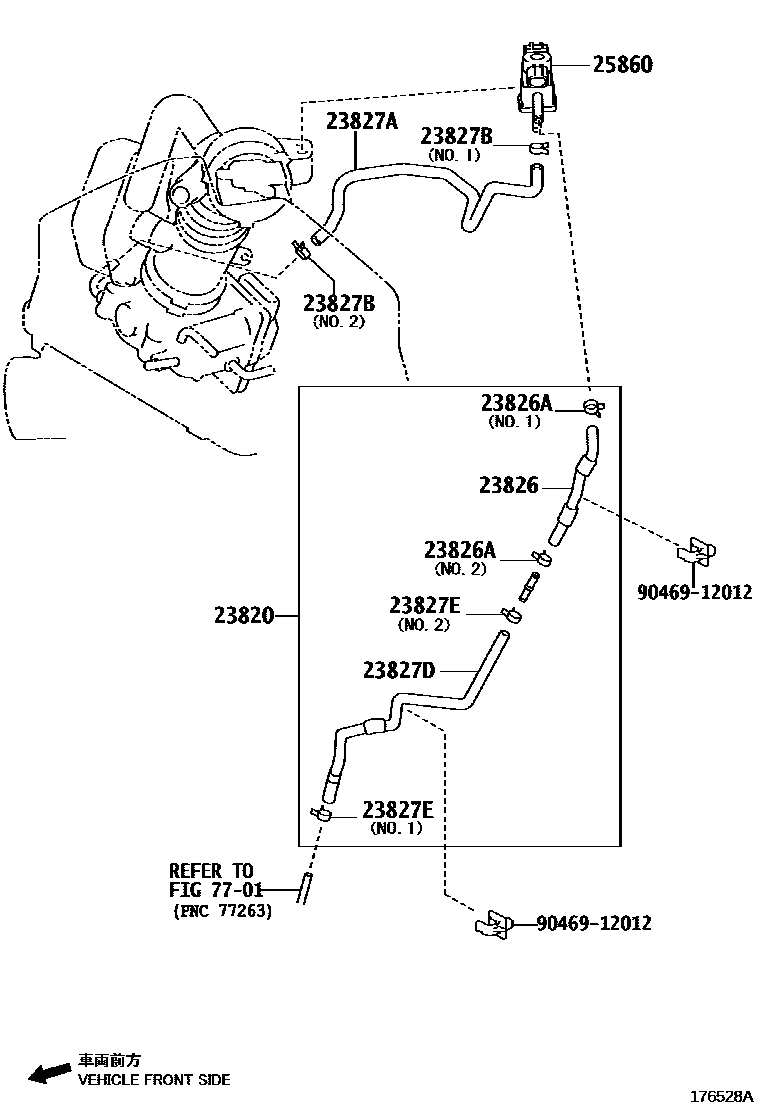

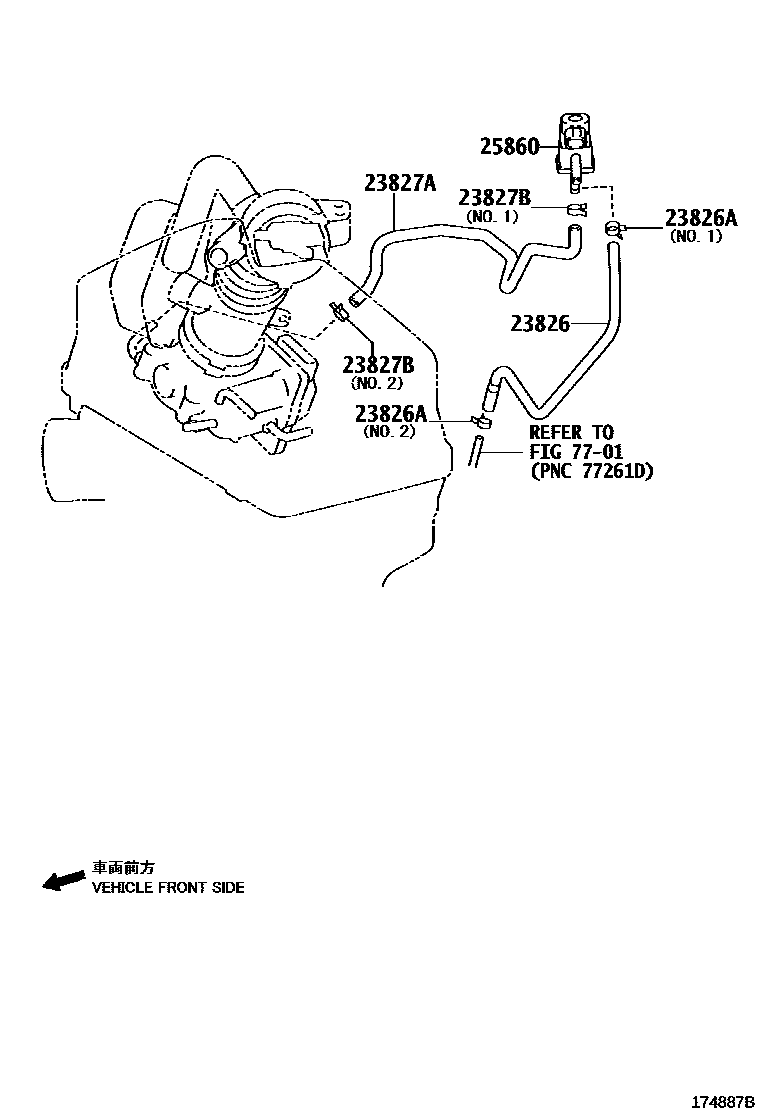

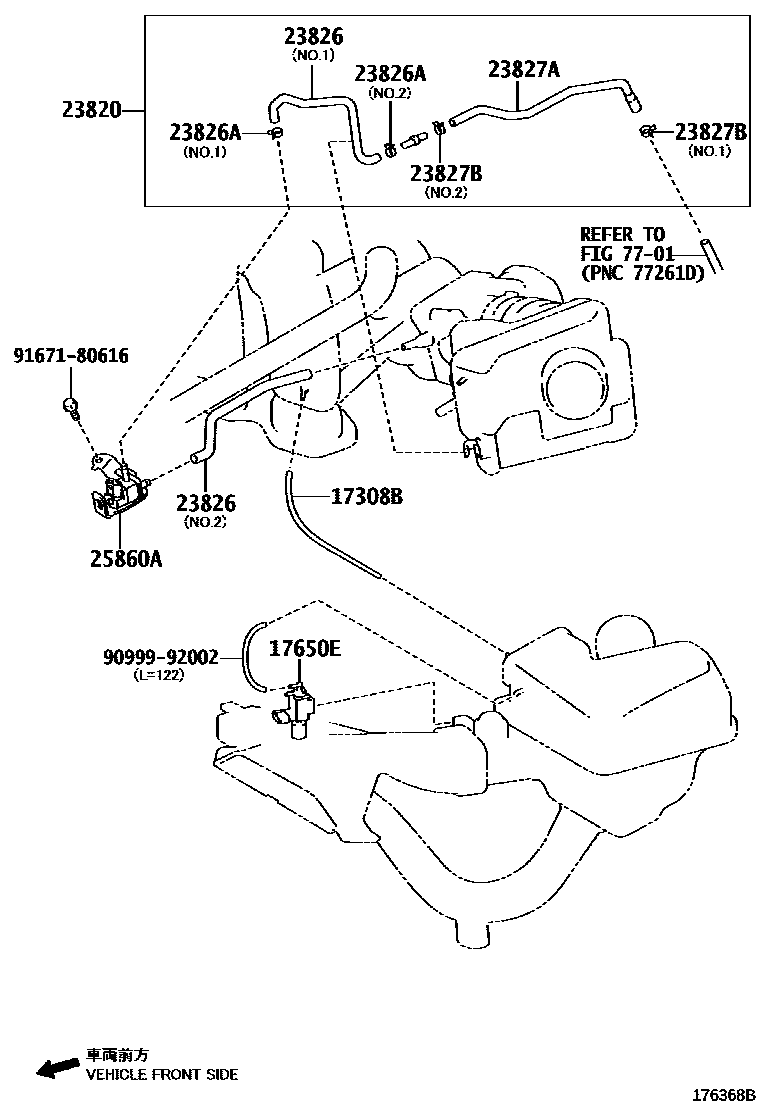

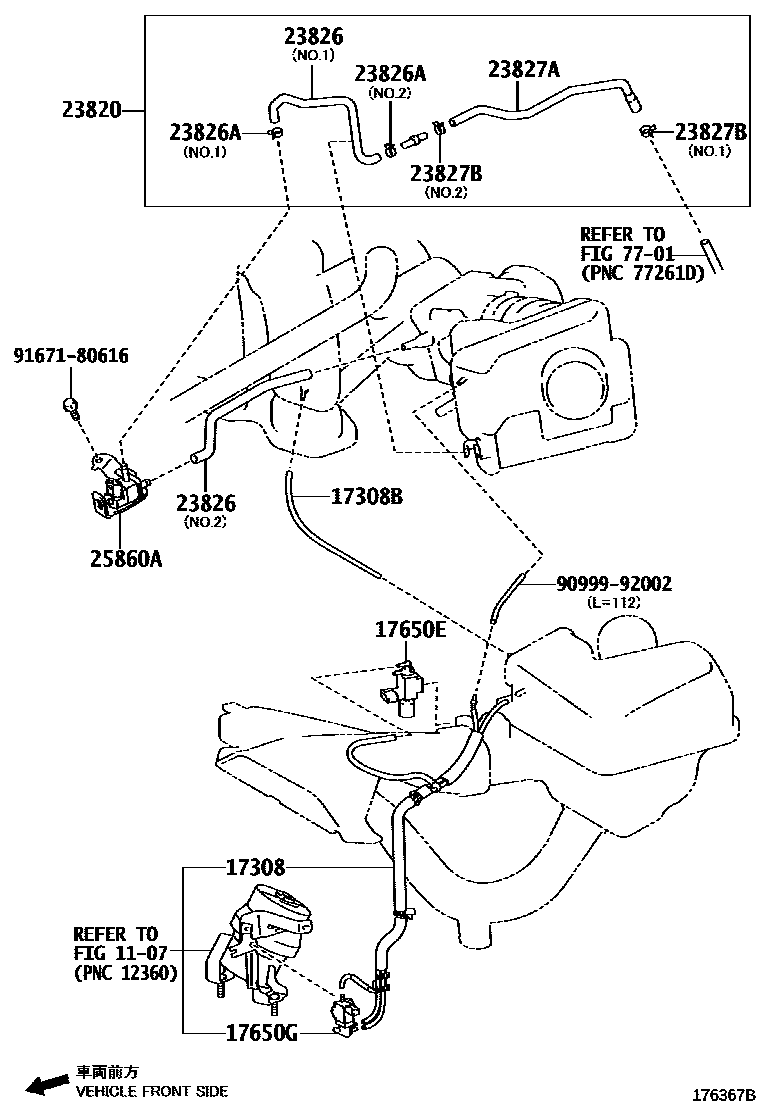

Toyota CAMRY EPC diagram 1708, vacuum tube, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-31010 · 17308-31011 |
| 17308B | Vacuum hose sub-assembly | 17308-31030 · 90999-92003 |
| 17650E | Vacuum switch valve | 90910-12088 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12204 |
| 23820 | Fuel vapor supply hose assembly | 23820-0H180 · 23820-31050 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0H130 · 23826-0H150 · 23826-0H310 · 23826-0P060 · 23826-0P070 · 23826-31080 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 96132-51100 · 96132-51300 |
| 23827A | No. 2 fuel vapor supply hose | 23826-0H140 · 23826-0H160 · 23827-0P040 · 23827-0P050 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-11003 · 96132-51000 · 96132-51100 · 96132-51300 |
| 23827D | No. 2 fuel vapor supply hose | 23827-0H130 |
| 23827E | Clamp (for No. 2 fuel vapor supply hose) | 96132-51100 · 96132-51300 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0H120 · 25860-28160 |
| 25860A | No. 1 vacuum switch valve | 25860-31070 |
