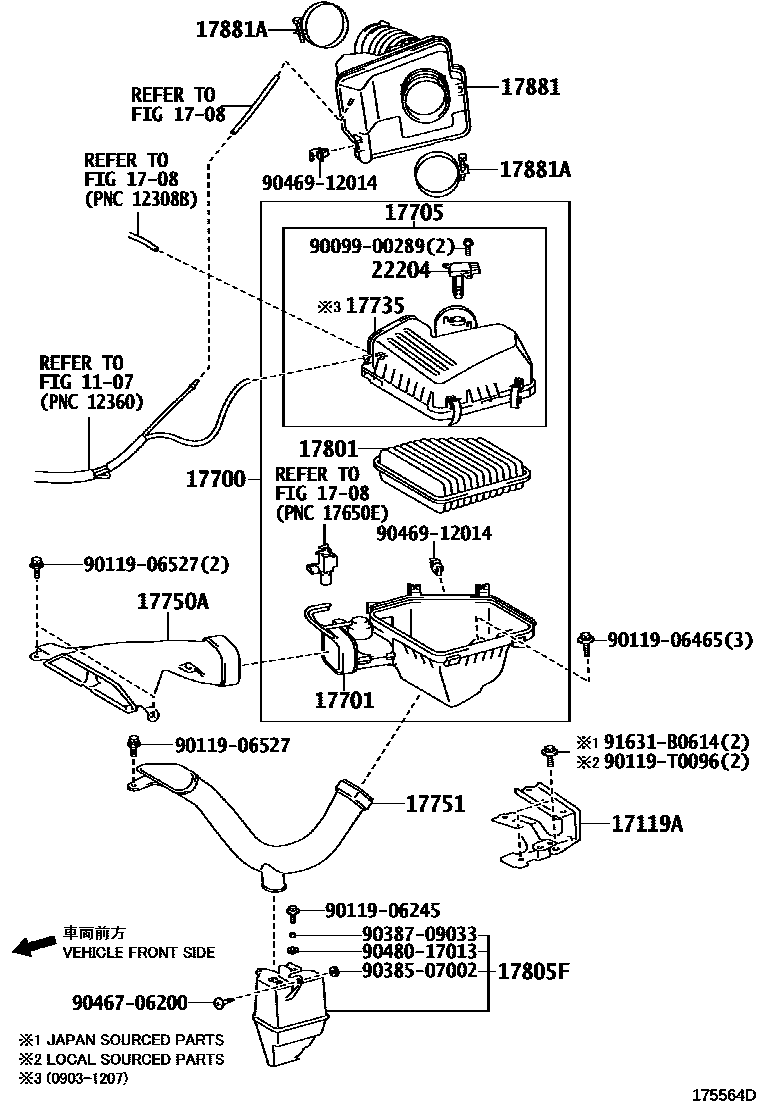

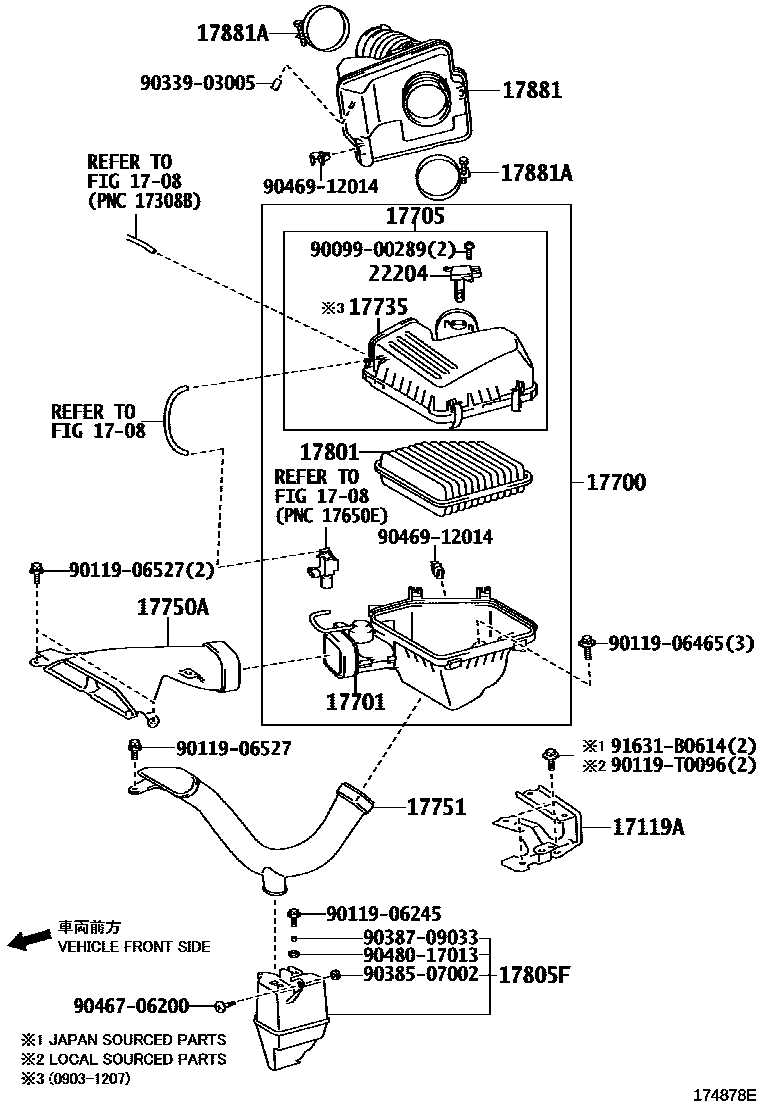

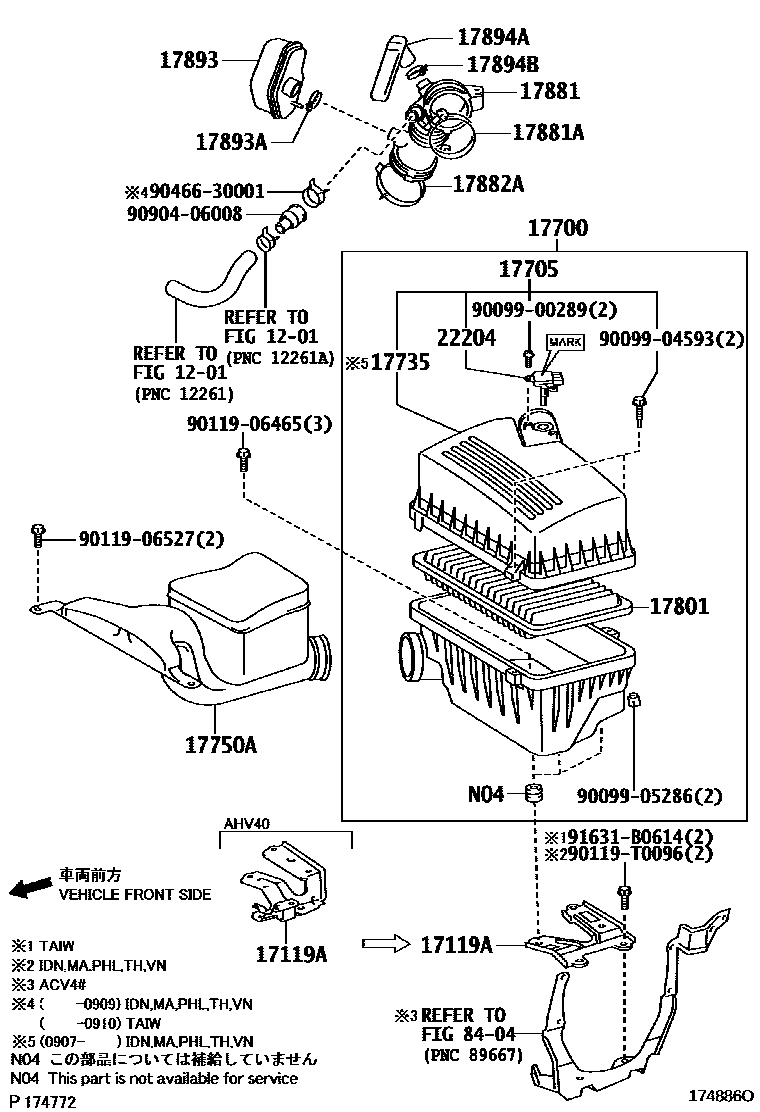

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-0H030 · 17119-0H040 · 17119-31050 |
| 17700 | air filter assembly | 17700-0H110 · 17700-0H111 · 17700-0H120 · 17700-0H121 · 17700-0H122 · 17700-0H140 · 17700-0H141 · 17700-31610 · 17700-31740 · 17700-31741 |
| 17701 | Air filter housing sub-assembly | 17701-31530 |
| 17705 | Air filter cover sub-assembly | 17705-0H110 · 17705-0H111 · 17705-0H112 · 17705-0H120 · 17705-0H121 · 17705-0H122 · 17705-28231 · 17705-28232 · 17705-31160 · 17705-31270 · 17705-31271 |
| 17735 | air filter cover | 17735-0H090 · 17735-28090 · 17735-31120 |
| 17750A | Air filter air inlet assembly | 17750-0H070 · 17750-0H080 · 17750-28040 · 17750-31010 · 17752-0P020 |
| 17751 | No. 1 air filter air inlet | 17751-0P040 · 17751-31120 |
| 17801 | Air filter element sub-assembly | 17801-0H020 · 17801-0H030 · 17801-28030 · 17801-31120 |
| 17805F | Intake resonator sub-assembly | 17805-0P020 · 17805-31020 |
| 17881 | No. 1 air cleaner hose | 17881-0H100 · 17881-0H110 · 17881-0P040 · 17881-31140 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10880 · 96111-10900 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 |
| 17893 | Intake resonator | 17893-0H070 · 17893-0H080 |
| 17893A | hose clamp | 96111-10430 |
| 17894A | No. 2 intake resonator | 17894-0H070 · 17894-0H080 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10400 |
| 22204 | Intake air flow meter assembly | 22204-0H010 · 22204-0P010 · 22204-0T010 · 22204-31010 · 22204-31020 |
