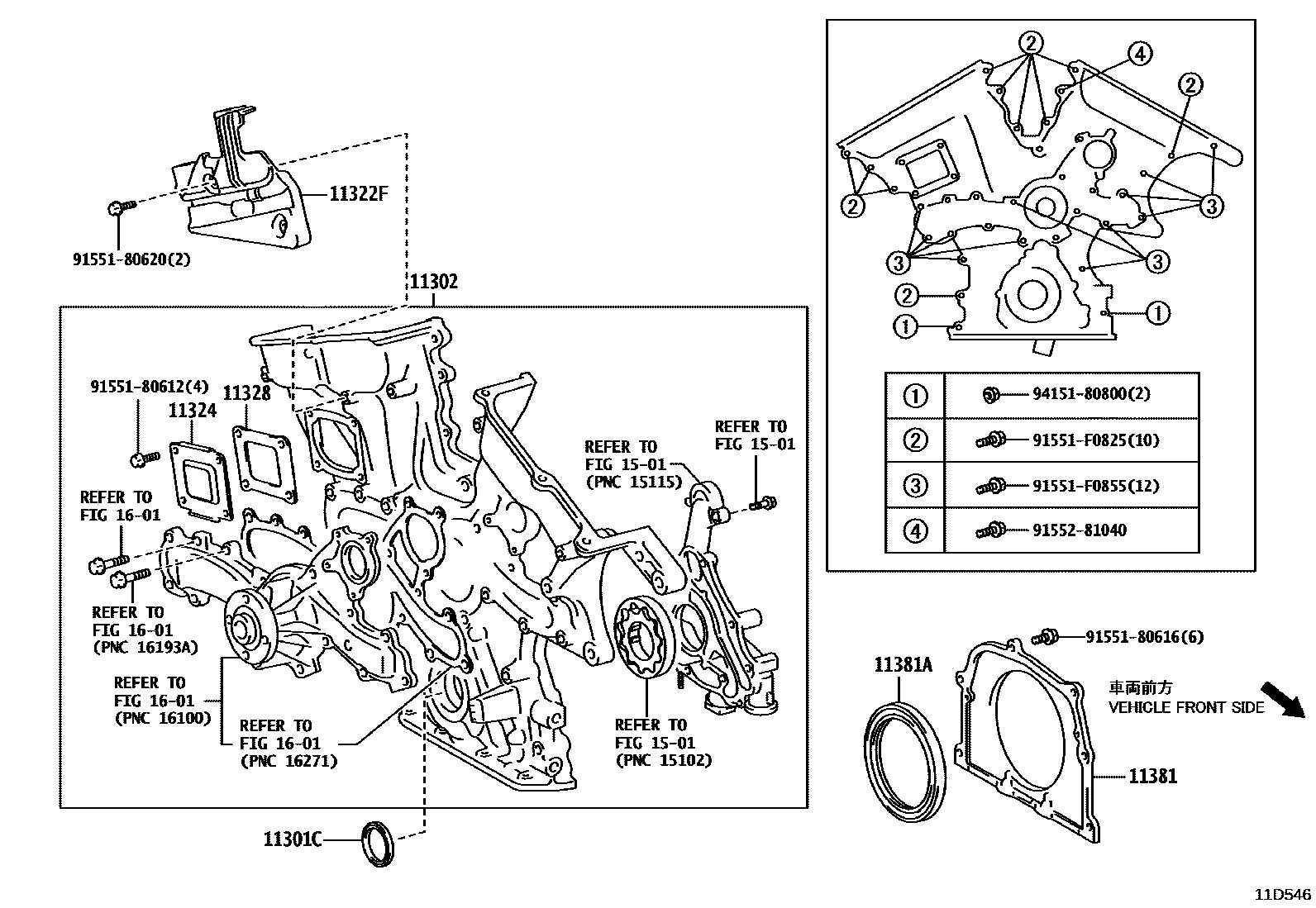

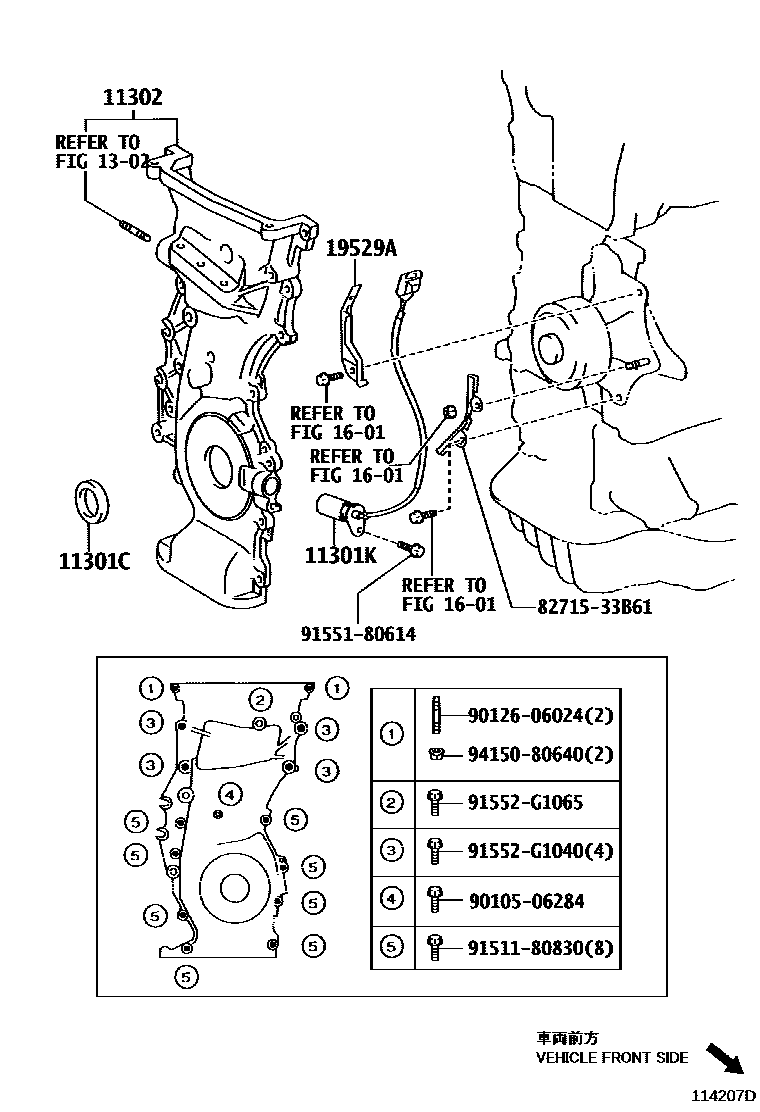

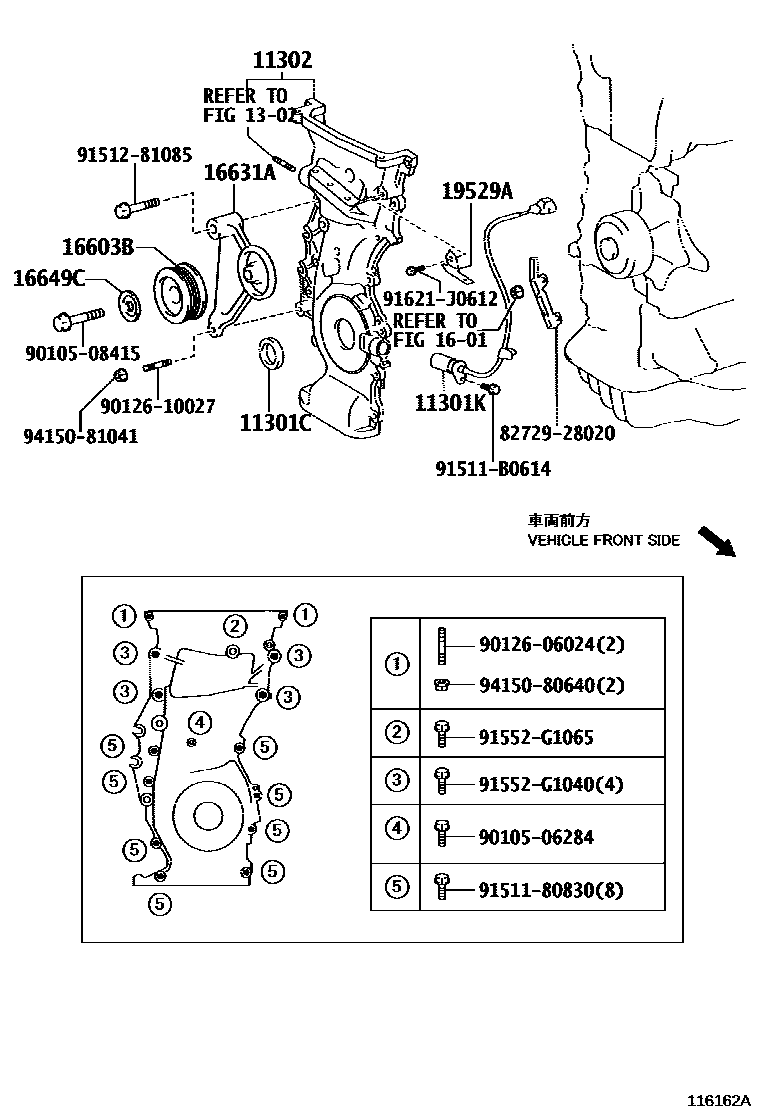

Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106
Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90080-31083 · 90311-38089 · 90311-42037 · 90311-42045 |
| 11301K | crankshaft position sensor | 90919-05047 · 90919-05067 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11310-0H021 · 11310-0H031 · 11310-28071 · 11310-31020 |
| 11322F | No. 2 timing gear cover | 11322-31021 |
| 11324 | Timing chain cover | 11324-31020 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-31030 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-31021 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-92006 · 90311-92009 · 90311-92010 |
| 16603B | Idler gear sub-assembly | 16603-28030 |
| 16631A | Idler gear bracket | 16631-28020 |
| 16649C | Idler cover | 16649-28010 |
| 19529A | card holder | 19529-28010 · 19529-28050 |
