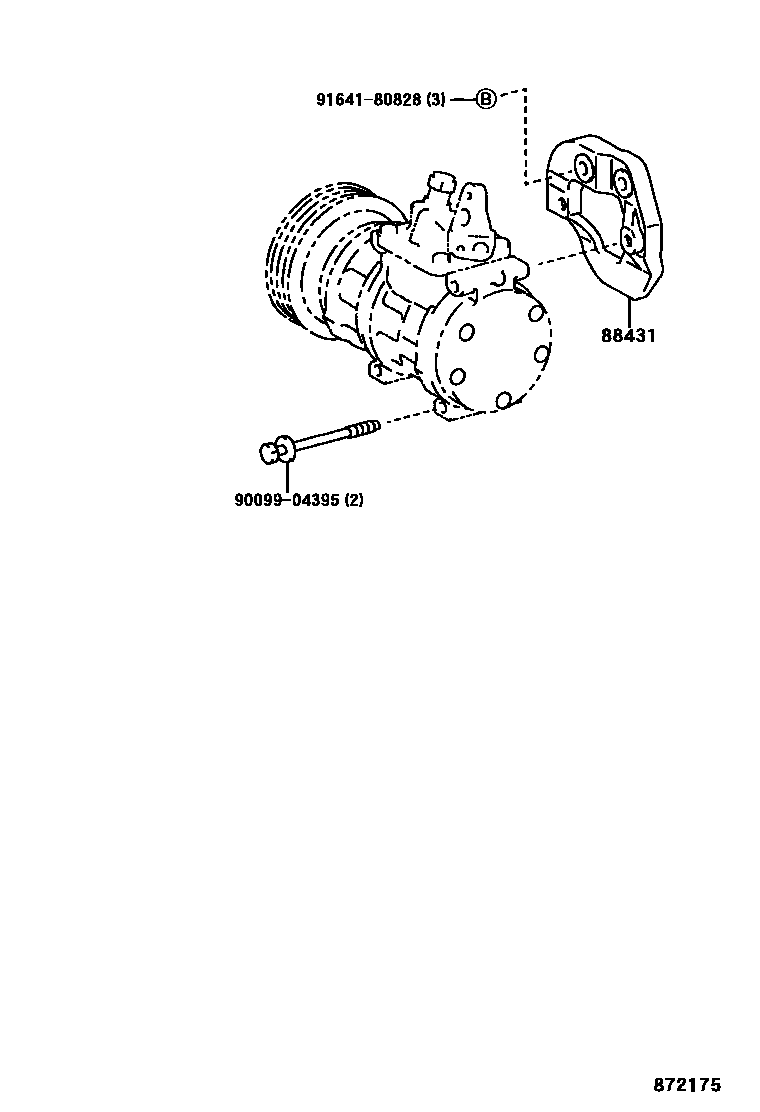

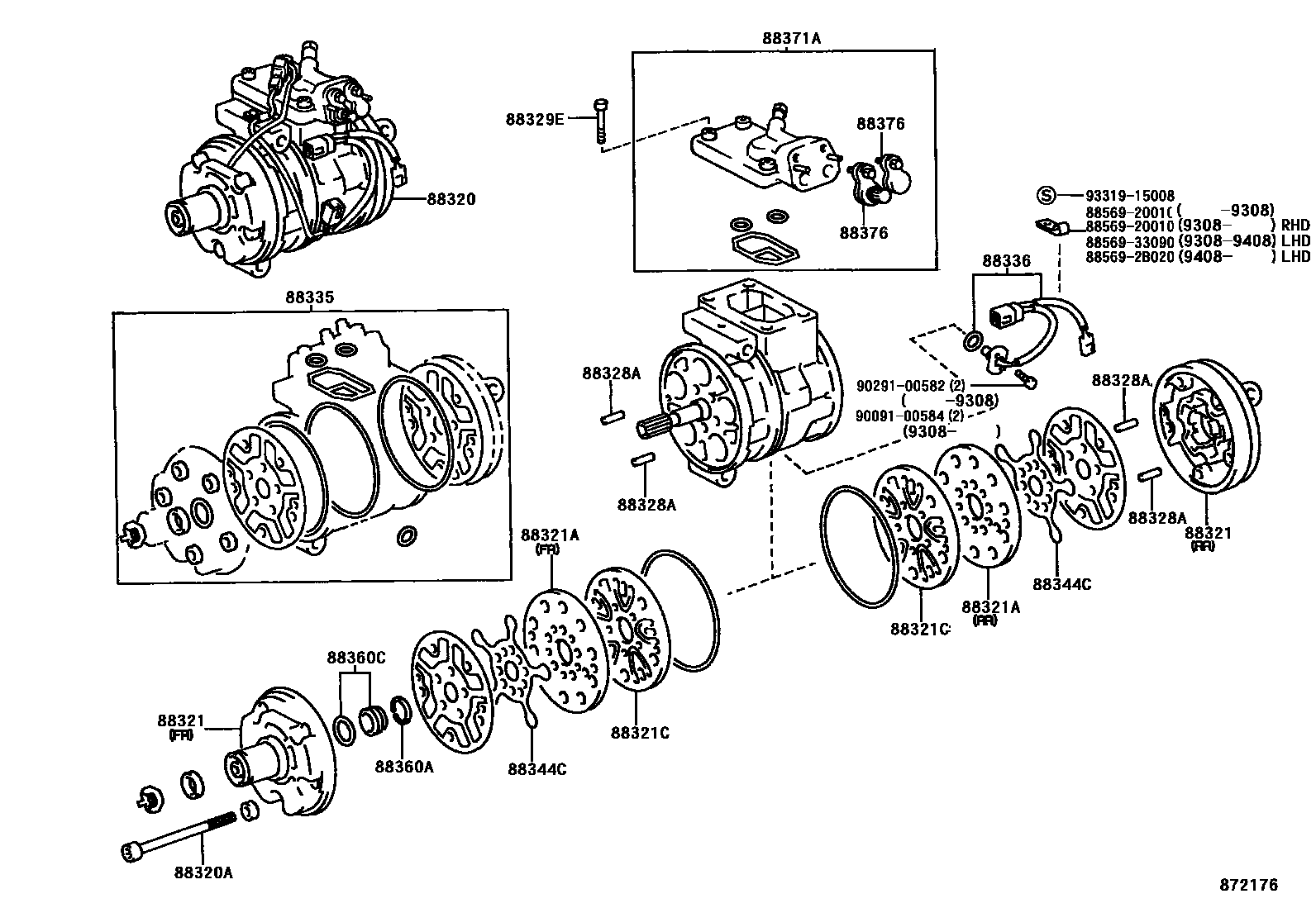

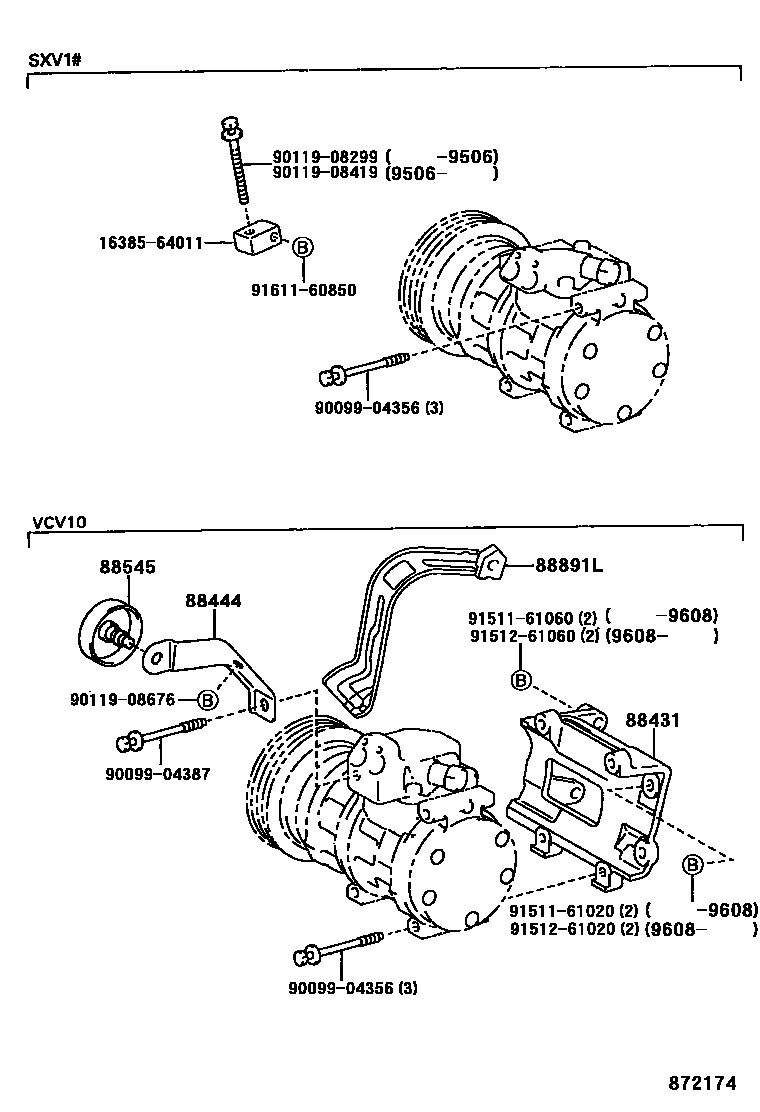

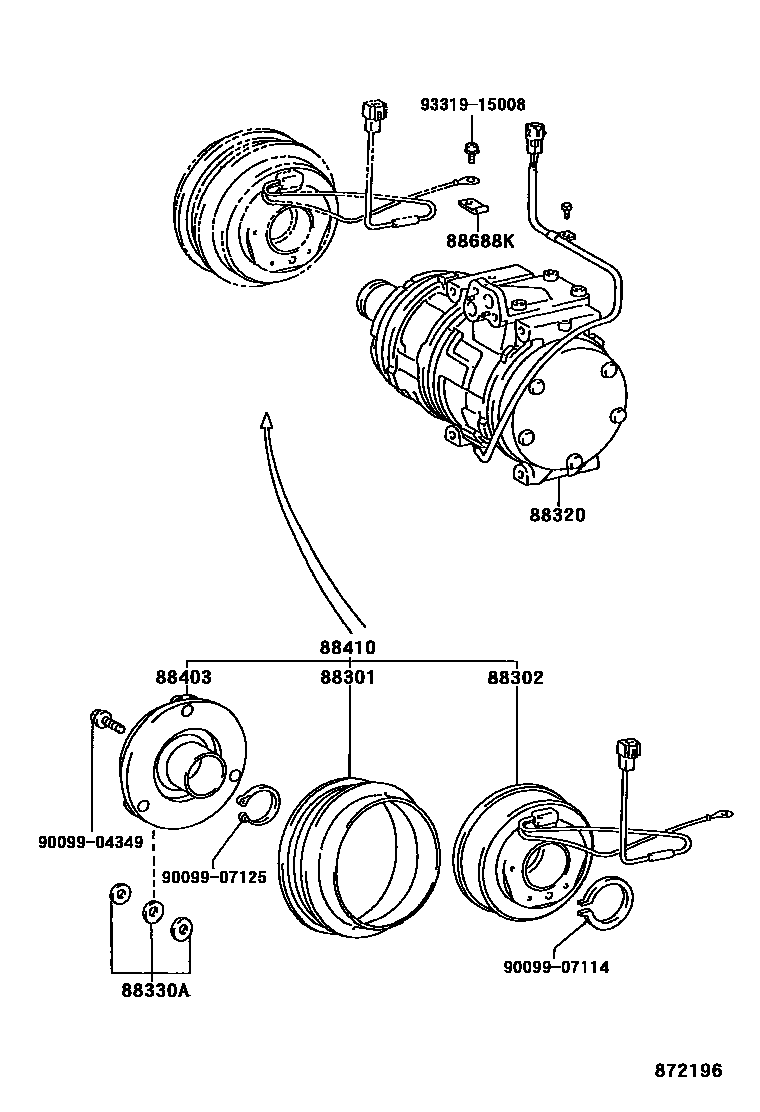

Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-2B030 · 88412-32030 · 88412-33020 · 88412-33030 · 88412-33050 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-22290 · 88411-2B090 · 88411-33010 · 88411-33020 · 88411-33040 |
| 88320 | Cooler Compressor Assembly | 88320-33010 · 88320-33020 · 88320-33040 · 88320-33050 · 88320-33060 · 88320-33070 |
| 88320A | Through bolt | 90099-04108 · 90099-04958 |
| 88321 | Cooler compressor cylinder head | 88321-32010 · 88322-32040 |
| 88321A | Valve sub-assembly | 88341-22010 · 88342-22010 |
| 88321C | suction valve reed | 88343-14020 |
| 88328A | compressor pin | 90099-08058 |
| 88329E | No. 1 compressor bolt | 90099-04924 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88335 | Overhaul gasket assembly | 88335-2B010 · 88335-2B030 · 88335-32010 |
| 88336 | compressor sensor | 88336-2B050 · 88336-33020 · 88336-33030 · 88336-33070 · 88336-33080 |
| 88344C | Discharge valve reed | 88344-22010 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88360C | Shaft seal assembly | 88360-14030 · 88360-2B010 · 88360-2B020 |
| 88371A | suction valve | 88371-33010 · 88371-33020 · 88371-33030 · 88371-33050 · 88371-33070 · 88371-33080 |
| 88376 | blind cover | 88376-17020 · 88376-22020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-16011 · 88403-30290 |
| 88410 | Magnetic Clutch Assembly | 88410-33010 · 88410-33020 · 88410-33030 · 88410-33050 · 88410-33060 · 88410-33070 · 88410-33080 |
| 88431 | Compressor No. 1 mounting bracket | 88431-33010 · 88431-33020 |
| 88444 | Idler gear bracket | 88444-33012 |
| 88545 | Idler gear assembly | 88440-33010 |
| 88688K | Cooler compressor bracket | 88688-33320 · 88688-33330 |
| 88891L | Cooler cover No. 1 | 88891-33041 |
