Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

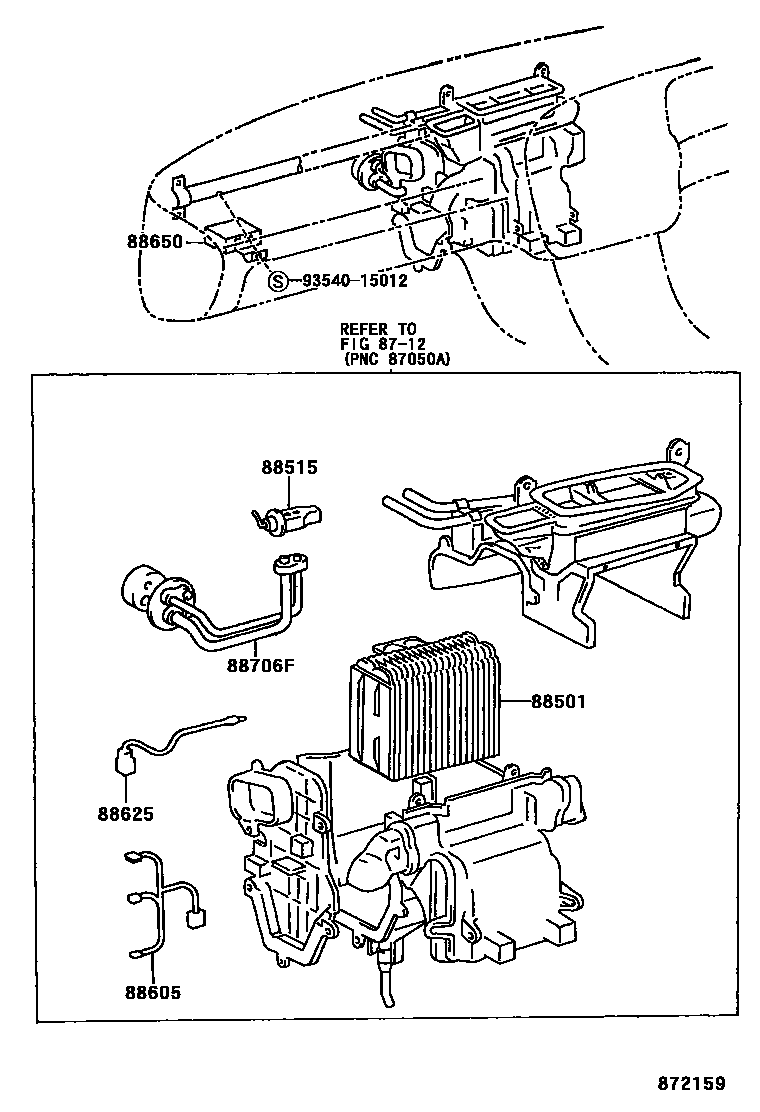

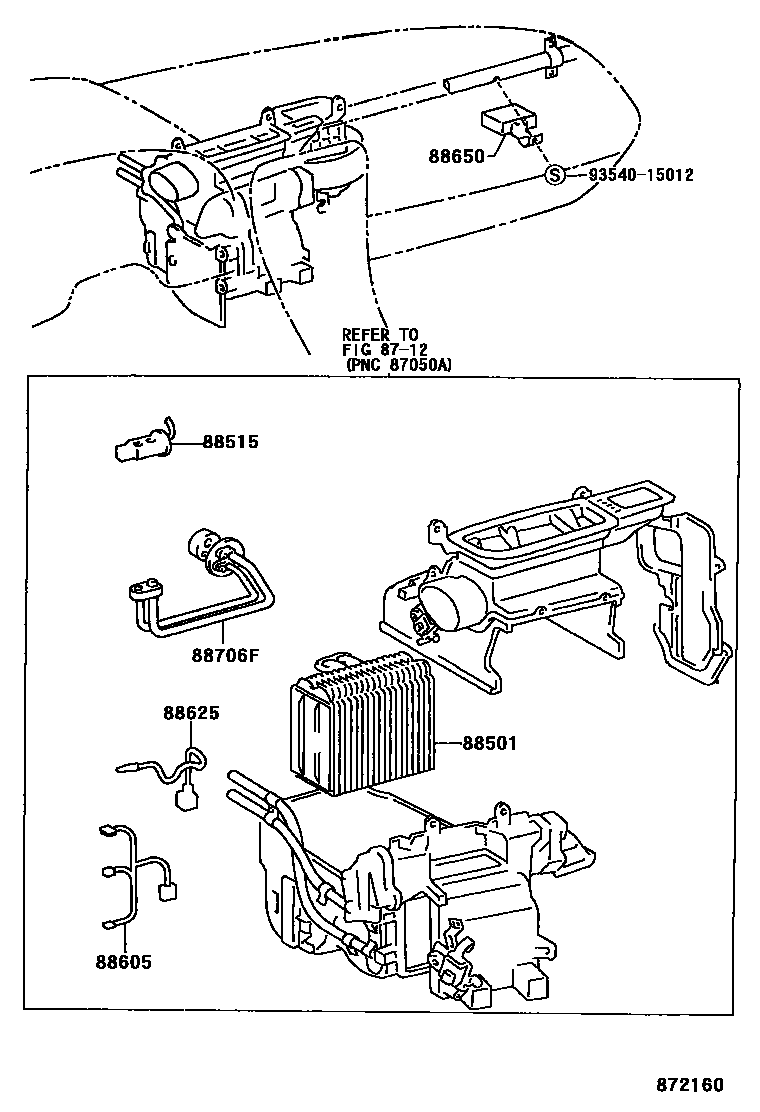

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-33010 · 88501-33040 · 88501-33070 |
| 88515 | Cooler expansion valve | 88515-06030 · 88515-14062 · 88515-20100 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-33010 · 88605-33020 · 88605-33030 · 88605-33040 |
| 88625 | Cooler No. 1 Thermistor | 88625-33060 · 88625-33070 · 88625-33120 · 88625-33130 |
| 88650 | Cooler stabilized amplifier assembly | 88650-33010 · 88650-33020 · 88650-33040 · 88650-33041 · 88650-33050 |
| 88706F | Liquid pipe F sub-assembly | 88706-33020 · 88706-33030 · 88716-33140 · 88716-33150 |
