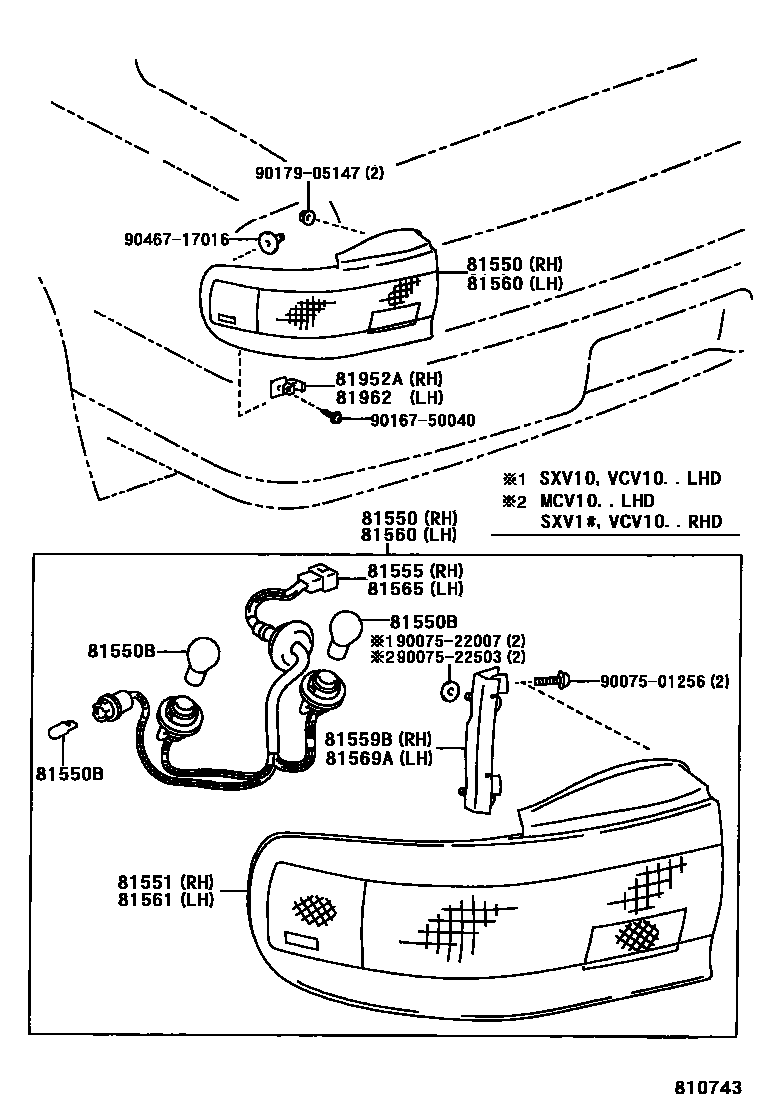

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-33010 · 81550-33011 · 81550-33020 · 81550-33021 · 81550-33022 · 81550-33023 · 81550-33130 |
| 81550B | Bulb (for rear combination lights) | 90981-11020 · 90981-12010 · 99132-11210 · 99132-11270 · 99132-21210 · 99132-21270 |
| 81551 | Right rear combination lamp shade | 81551-33010 · 81551-33011 · 81551-33020 · 81551-33021 · 81551-33022 · 81551-33023 · 81551-33130 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-33010 · 81555-33020 |
| 81559B | Right rear combination light bracket | 81559-33010 |
| 81560 | Left rear combination light assembly | 81560-33010 · 81560-33011 · 81560-33020 · 81560-33021 · 81560-33022 · 81560-33023 · 81560-33130 |
| 81561 | Left rear combination lamp shade | 81561-33010 · 81561-33011 · 81561-33020 · 81561-33021 · 81561-33022 · 81561-33023 · 81561-33130 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-33010 · 81555-33020 |
| 81569A | Left rear combination light bracket | 81569-33010 |
| 81952A | Right rear light cover | 61663-33010 |
| 81962 | Left rear light cover | 61664-33010 |
