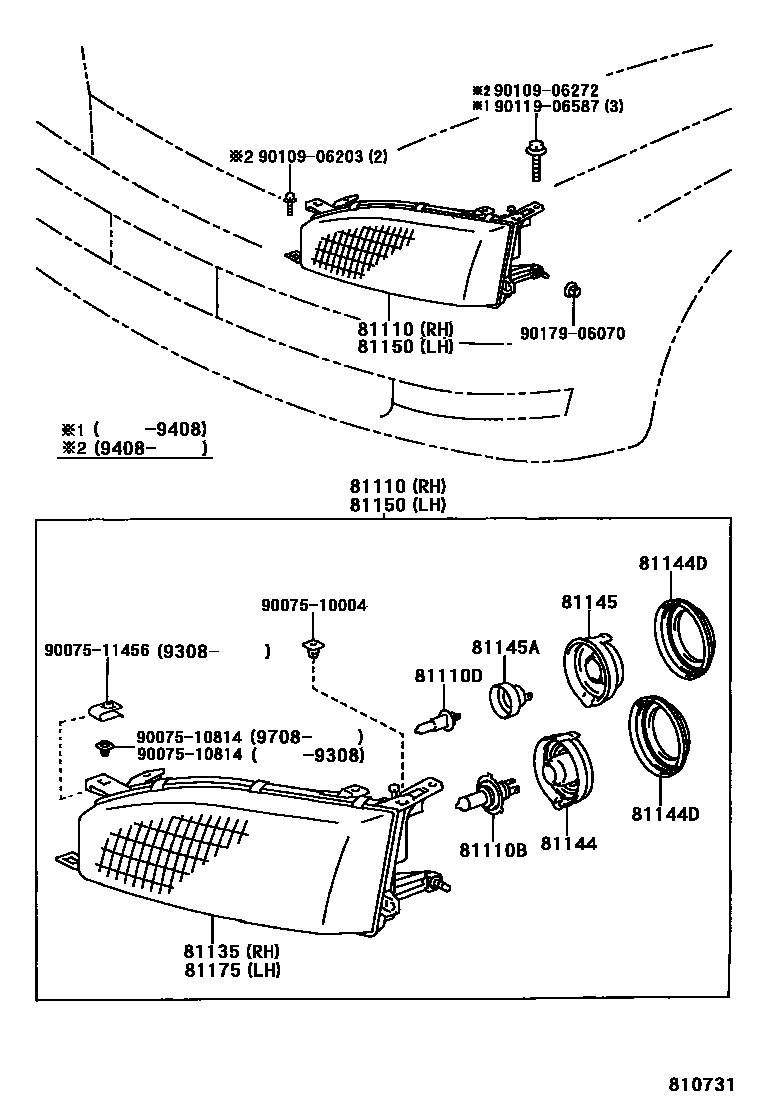

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-33050 · 81110-33051 · 81110-33052 · 81110-33100 · 81110-33101 · 81110-33102 · 81110-33250 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-22004 |
| 81110D | Bulb (for headlight No. 2) | 90981-13017 |
| 81135 | Right headlight assembly assembly | 81130-33050 · 81130-33052 · 81130-33100 · 81130-33102 · 81130-33250 |
| 81144 | No. 1 headlight cover | 90075-99058 |
| 81144D | headlight lock cover | 90075-99057 |
| 81145 | No. 2 headlight cover | 90075-99058 |
| 81145A | Adapter assembly | 90075-99081 · 90075-99123 |
| 81150 | Left headlight assembly | 81150-33050 · 81150-33051 · 81150-33052 · 81150-33110 · 81150-33111 · 81150-33112 · 81150-33250 |
| 81175 | Left headlight assembly assembly | 81170-33050 · 81170-33052 · 81170-33110 · 81170-33112 · 81170-33250 |
