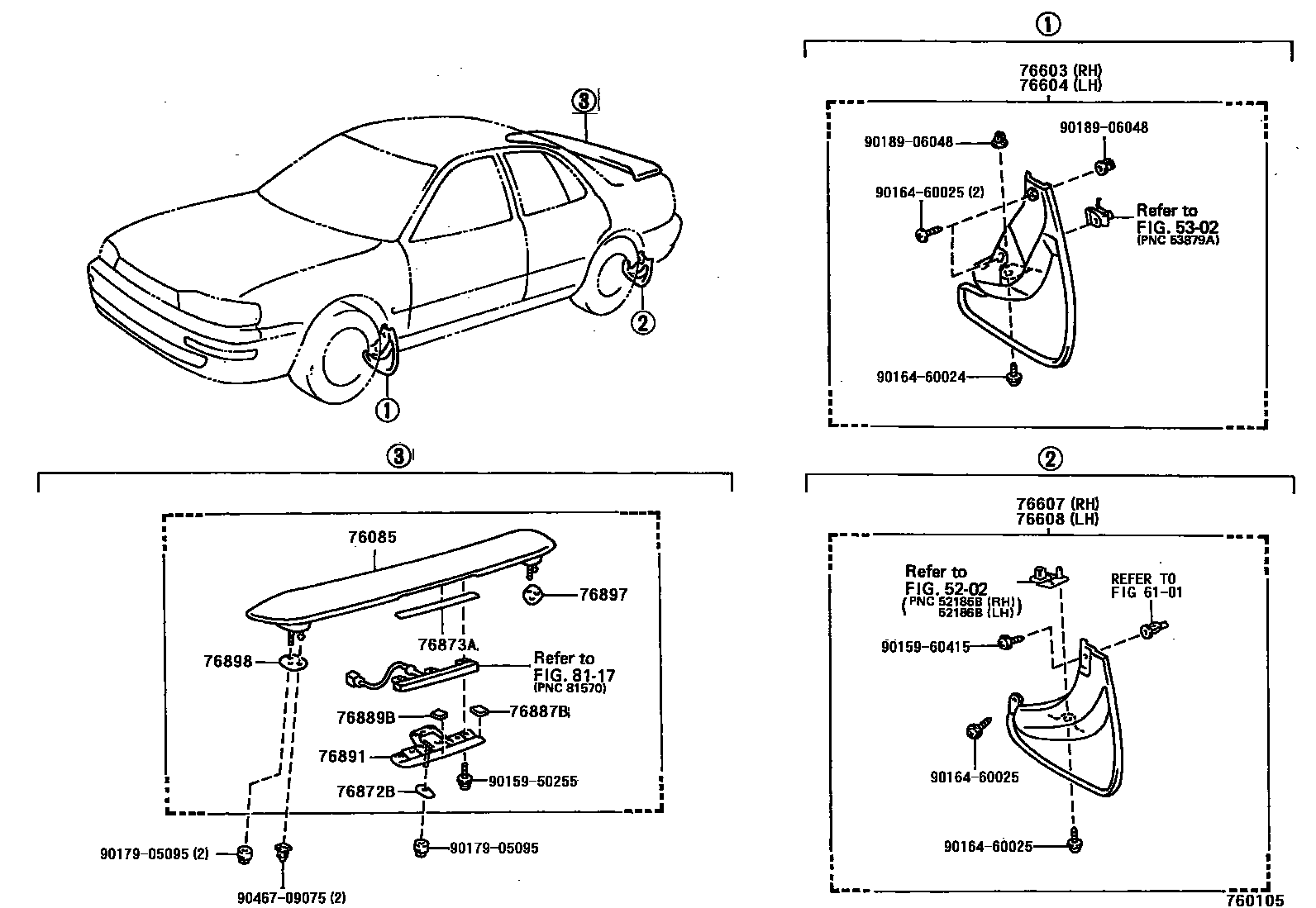

Toyota CAMRY 挡泥板和扰流板 — Figure 7601
Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76871-33900 · 76871-33902 |
| 76603 | Right front fender fender sub-assembly | 76621-39225 |
| 76604 | Left front fender fender sub-assembly | 76622-39225 |
| 76607 | Right rear side fender sub-assembly | 76625-39305 |
| 76608 | Left rear side fender sub-assembly | 76626-39305 |
| 76872B | Rear center spoiler protective strip | 76872-33010 |
| 76873A | Right rear spoiler protective strip | 76873-32020 |
| 76887B | No. 2 rear spoiler protection strip | 76887-32010 |
| 76889B | No. 1 rear spoiler seal | 76889-32020 |
| 76891 | No. 1 rear spoiler | 76891-33900 |
| 76897 | Right rear spoiler protection strip | 76897-33020 |
| 76898 | Left rear spoiler protection strip | 76898-33020 |
