Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 29 PNC and OE references.

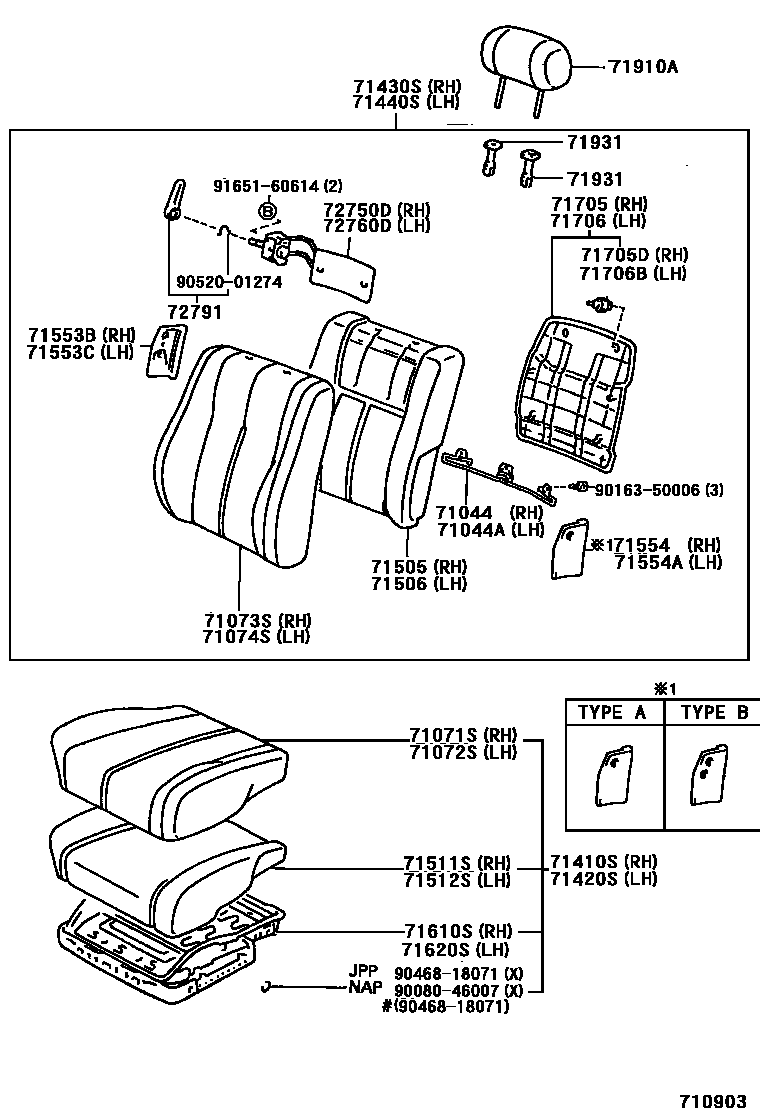

Toyota CAMRY 前排座椅和座椅滑轨 EPC diagram — 710903
前排座椅和座椅滑轨 — 710903 (199208 – 999999)

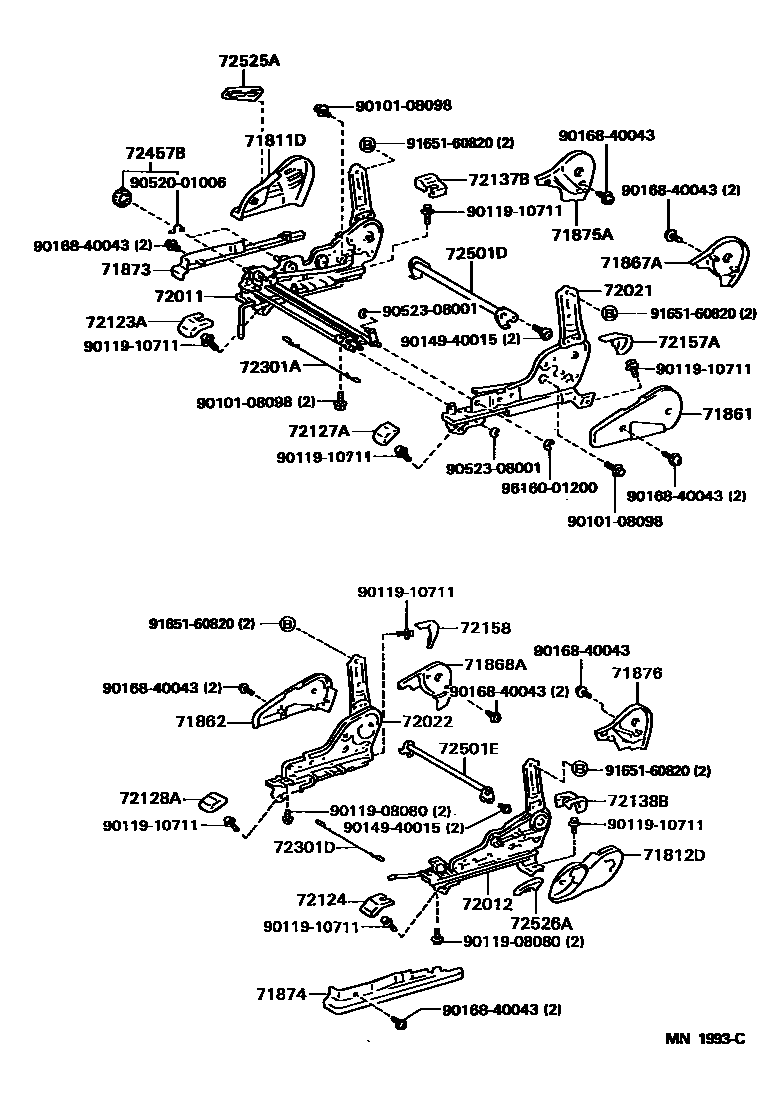

Toyota CAMRY 前排座椅和座椅滑轨 EPC diagram — MN1993C
前排座椅和座椅滑轨 — MN1993C (199208 – 999999)

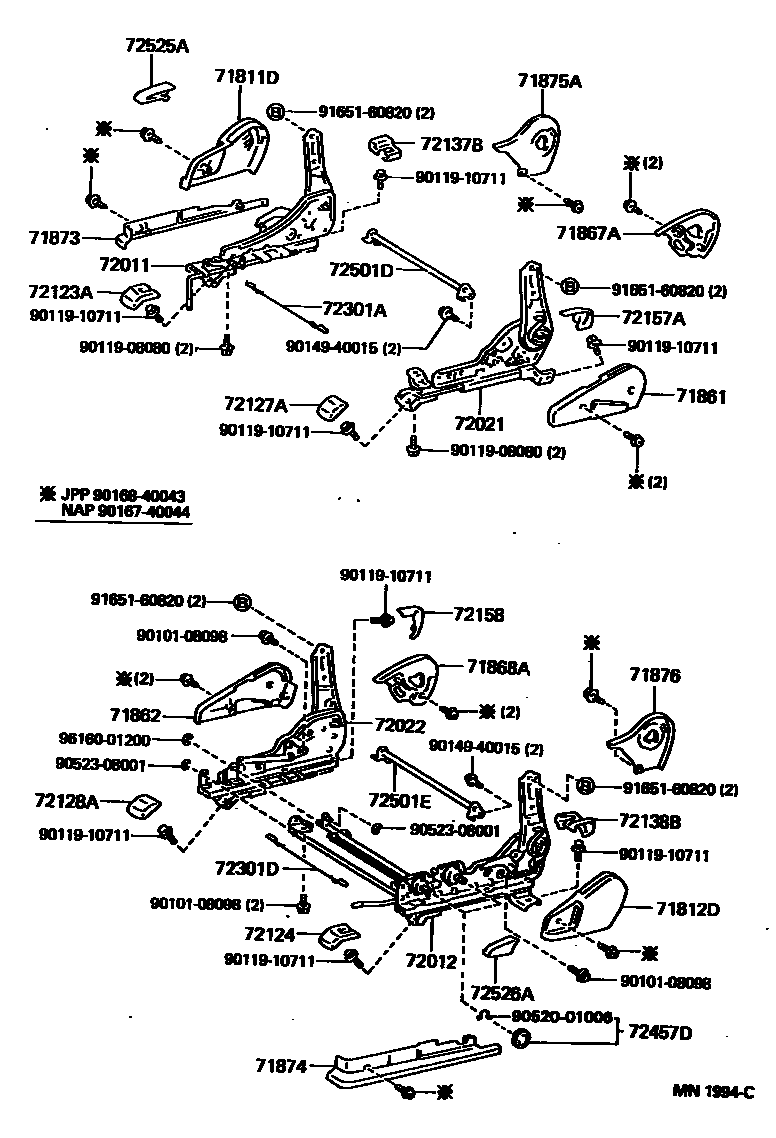

Toyota CAMRY 前排座椅和座椅滑轨 EPC diagram — MN1994C
前排座椅和座椅滑轨 — MN1994C (199208 – 999999)

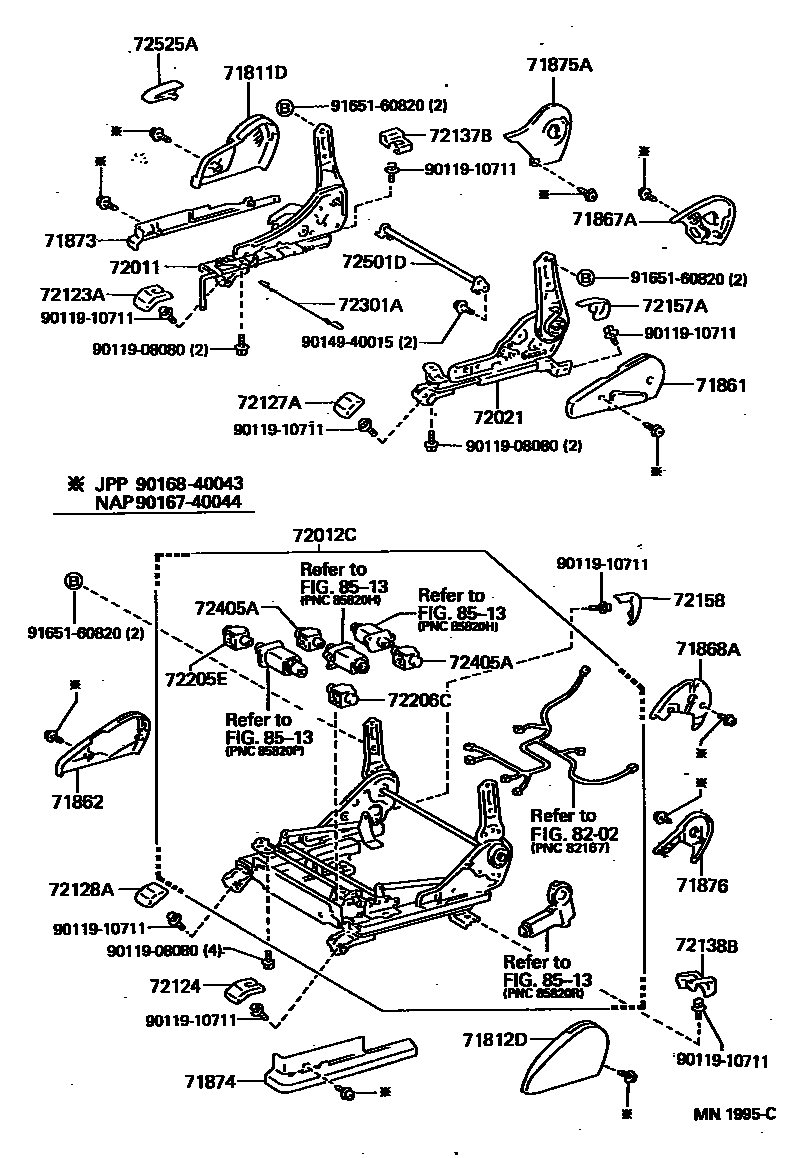

Toyota CAMRY 前排座椅和座椅滑轨 EPC diagram — MN1995C
前排座椅和座椅滑轨 — MN1995C (199208 – 999999)

PNC and OE references

PNCPart nameOE numbers
71044Steel wire sub-assembly under the front right seat backrest71044-32010
71044ASteel wire sub-assembly under the front left seat backrest71044-32010
71071SFront right seat cushion cover (for split seats)71071-33080
71505Front right seat back cushion sub-assembly with frame71505-33010 · 71505-33020 · 71505-33030 · 71505-33040
71506Front left seat back cushion sub-assembly with frame71505-33010 · 71505-33030 · 71505-33040 · 71506-33010 · 71506-33020
71511SFront right seat cushion cushion (for split seats)71511-32150 · 71511-33030 · 71511-33040
71512SFront left seat cushion cushion (for split seats)71511-32150 · 71511-33030 · 71511-33040 · 71512-33010 · 71512-33020 · 71512-33050 · 71512-33060
71553BFront B seat back cushion71553-33010 · 71553-33020 · 71553-33030 · 71553-33040
71553CFront C seat back cushion71553-33010 · 71553-33020 · 71553-33030 · 71553-33040
71554Front C seat back cushion71554-33010 · 71554-33020 · 71554-33030 · 71554-33040
71554AFront center seat back cushion71554-33010 · 71554-33020 · 71554-33030 · 71554-33040
71610SFront right seat cushion spring assembly (for split seats)71610-32090 · 71610-32100
71620SFront left seat cushion spring assembly (for split seats)71620-32030 · 71620-33010 · 71620-33020
71705DFront seat back panel clip71769-33010
71706BFront seat back panel clip71769-33010
72011Front right seat outer adjuster sub-assembly72011-33030 · 72011-33031 · 72011-33100
72012Front left seat outer adjuster sub-assembly72012-33031 · 72012-33040 · 72012-33041 · 72012-33100 · 72012-33110
72012CFront left seat adjuster sub-assembly72020-33010 · 72020-33011
72021Front right seat inner adjuster sub-assembly72021-33030 · 72021-33031 · 72021-33100
72022Front left seat inner adjuster sub-assembly72022-33031 · 72022-33040 · 72022-33041 · 72022-33100 · 72022-33110
72205ENo. 1 electric seat shell sub-assembly72205-50020
72206CNo. 2 electric seat shell sub-assembly72206-22020
72301ARight seat slide rail balance harness sub-assembly72301-33010
72301DLeft seat slide rail balance harness sub-assembly72301-33010
72405AFront vertical seat shell sub-assembly72405-24020
72501DRight seat back recline adjuster connecting pipe sub-assembly72345-33020
72501ELeft seat back recline adjuster connecting pipe sub-assembly72345-33020
72750DRight lumbar support adjuster assembly72750-33010
72760DLeft lumbar support adjuster assembly72760-33010
