Toyota CAMRY 前门车窗升降器和合页 — Figure 6704

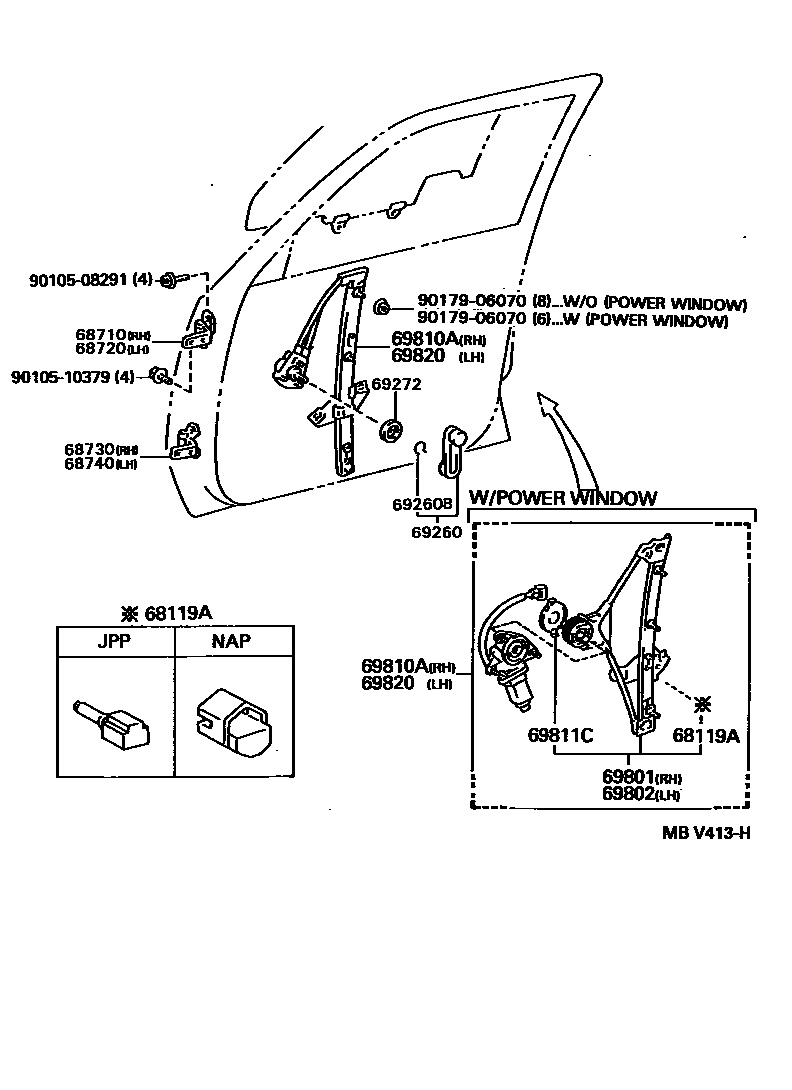

Toyota CAMRY EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68119A | No. 1 window lift glass bracket cushion | 69887-33010 |
| 68710 | Right front door upper hinge assembly | 68710-32040 |
| 68720 | Left front door upper hinge assembly | 68720-32040 |
| 68730 | Right front door lower hinge assembly | 68730-32030 |
| 68740 | Left front door lower hinge assembly | 68730-32030 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01002 |
| 69272 | Front door window lift inner handle plate | 69285-22010 |
| 69801 | Right front door window lifter sub-assembly | 69801-32060 |
| 69802 | Left front door window lifter sub-assembly | 69802-32050 |
| 69810A | Right front door window lift assembly | 69810-06012 · 69810-32100 · 69810-32110 |
| 69811C | Front door power window lift base plate | 69811-32040 |
| 69820 | Left front door window lift assembly | 69820-06012 · 69820-32090 · 69820-32110 |
