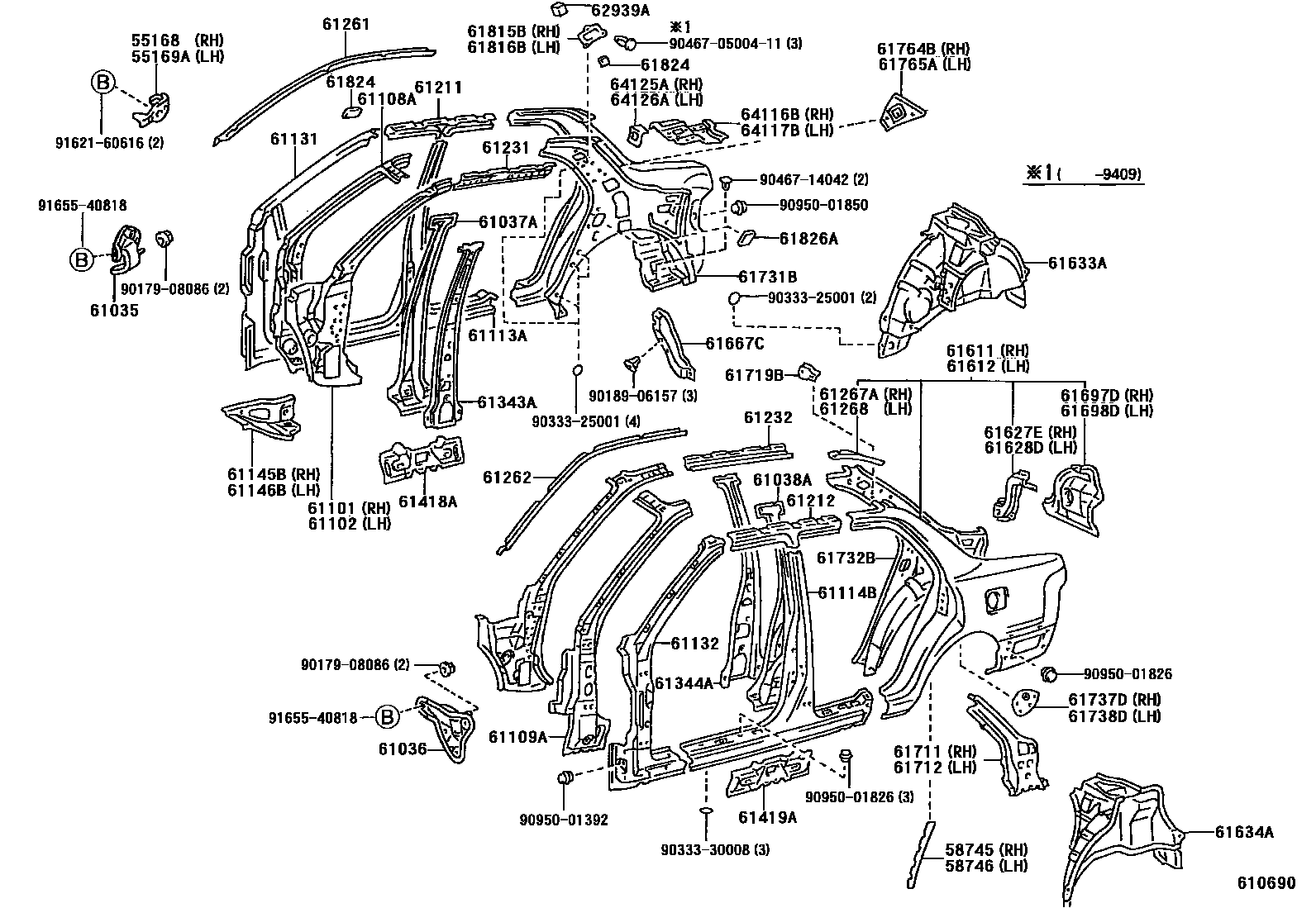

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 1 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55168 | Right front fender mounting bracket | 55168-32010 |
| 55169A | Left front fender mounting bracket | 55169-32010 |
| 58745 | Right front side panel protector | 58745-33010 |
| 58746 | Left front side panel protector | 58746-33010 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61165-33010 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61166-33010 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-33020 · 61037-33060 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-33020 · 61038-33060 |
| 61101 | Right front wall side panel sub-assembly | 61101-33904 · 61101-33905 |
| 61102 | Left front wall side panel sub-assembly | 61102-33906 · 61102-33907 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-06902 · 61108-06904 · 61108-33901 · 61108-33904 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-33901 · 61109-33904 |
| 61113A | No. 2 right outer panel | 61113-32011 |
| 61114B | No. 2 left outer panel | 61114-32011 |
| 61131 | Right body outer front upper pillar | 61131-32111 |
| 61132 | Left body outer front upper pillar | 61132-32111 |
| 61145B | Right body front pillar lower corner panel | 61145-33010 |
| 61146B | Left body front pillar lower corner panel | 61146-33010 |
| 61211 | Roof right outer longitudinal beam | 61211-32070 |
| 61212 | Roof left outer longitudinal beam | 61212-32070 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-33010 · 61231-33030 |
| 61232 | Roof left inner longitudinal beam | 61232-33010 · 61232-33030 |
| 61261 | Drainage channel on the right side of the roof | 61261-32060 |
| 61262 | Drainage channel on the left side of the roof | 61262-32060 |
| 61267A | Roof right rear gutter | 61267-33010 |
| 61268 | Roof left rear gutter | 61268-33010 |
| 61343A | Right body inner center pillar | 61343-33010 · 61343-33020 |
| 61344A | Left body inner center pillar | 61344-33010 · 61344-33020 |
| 61418A | Right side door sill panel reinforcement | 61418-32020 |
| 61419A | Left side rocker panel reinforcement | 61419-32020 |
| 61611 | Right side hoarding | 61601-33011 · 61601-33021 |
| 61612 | left side panel | 61602-33011 |
| 61627E | Right rear side panel lower extension | 61627-33010 |
| 61628D | Left rear side panel lower extension | 61628-33010 |
| 61633A | Right wheel housing lining panel | 61603-33030 |
| 61634A | Left side wheel housing lining panel | 61604-33030 · 61604-33090 |
| 61667C | No. 1 side panel seal | 61667-33010 |
| 61697D | Right side enclosure end cover | 61697-33012 |
| 61698D | Left side enclosure end cover | 61698-33012 |
| 61711 | Roof right side outer panel | 61711-33010 |
| 61712 | Roof left outer panel | 61712-33010 |
| 61719B | roof inner bracket | 61719-33010 |
| 61731B | Roof right inner panel | 61731-33010 · 61731-33050 |
| 61732B | Roof left inner panel | 61732-33010 |
| 61737D | Roof right inner reinforcement | 61737-33010 |
| 61738D | Roof left inner reinforcement | 61738-33010 |
| 61764B | Seat belt anchor reinforcement for seat No. 2, right | 61764-33010 |
| 61765A | Seat belt anchor reinforcement for No. 2 left seat | 61765-33010 |
| 61815B | Right inner upper cover of the roof | 61815-33010 · 61815-33030 |
| 61816B | Roof left inner upper cover | 61815-33030 · 61816-33010 |
| 61824 | Noise Control Panel No. 1 | 61824-20100 |
| 61826A | Noise Control Panel No. 3 | 61826-30030 |
| 62939A | Side ventilation silencers | 62939-33010 |
| 64116B | Right rear upper reinforcement | 64116-33010 |
| 64117B | Left rear upper reinforcement | 64117-33010 |
| 64125A | Upper right back panel bracket | 64125-33010 |
| 64126A | Upper left back panel bracket | 64126-33010 |
