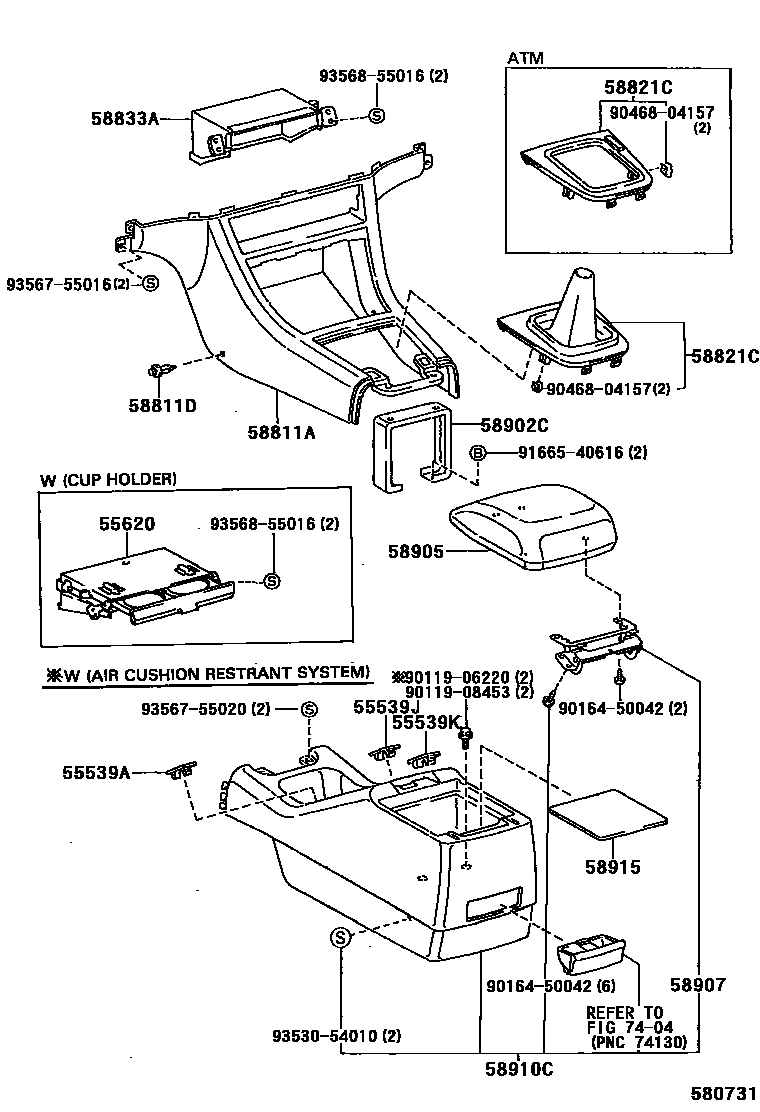

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58902C | Armrest box mounting bracket sub-assembly | 58902-33010 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-33010 |
| 58915 | Armrest box bottom panel | 58915-33010 · 58915-33011 · 58915-33020 |
