Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705

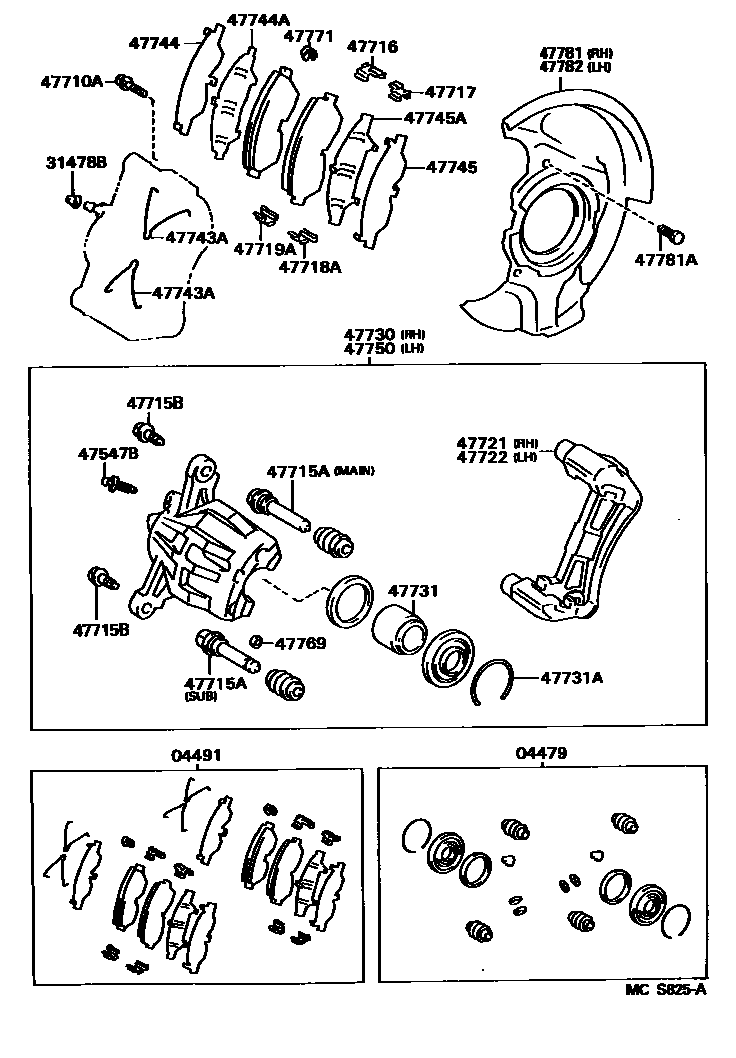

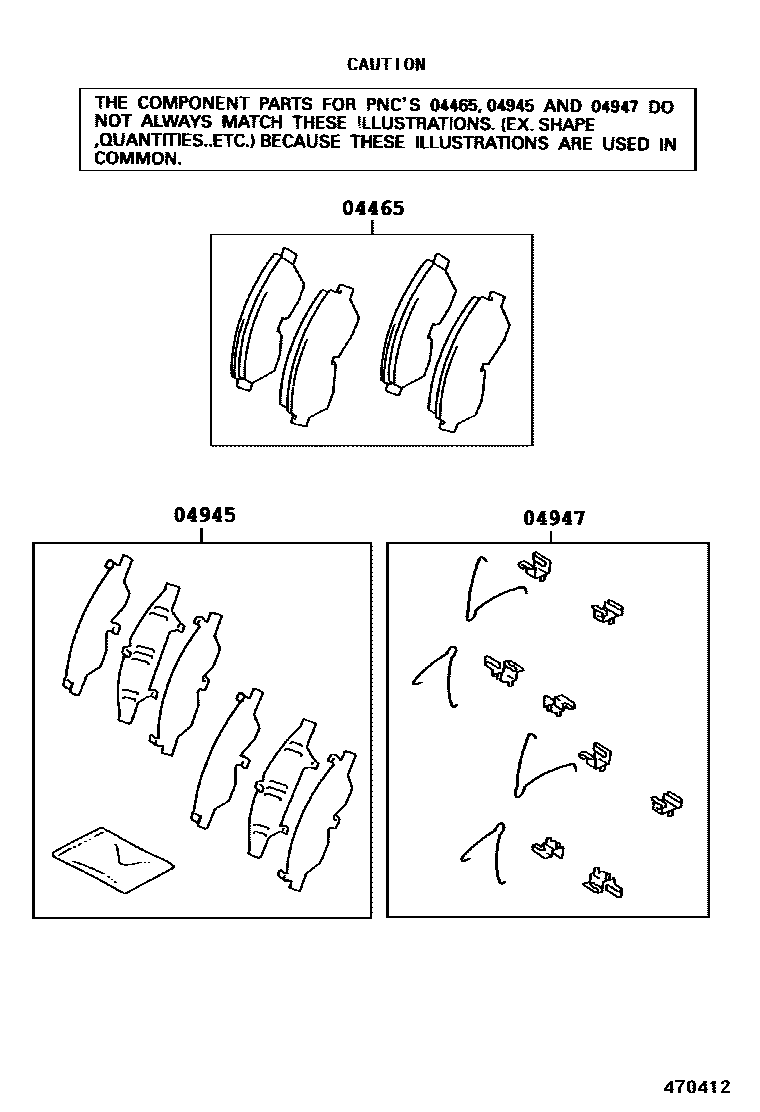

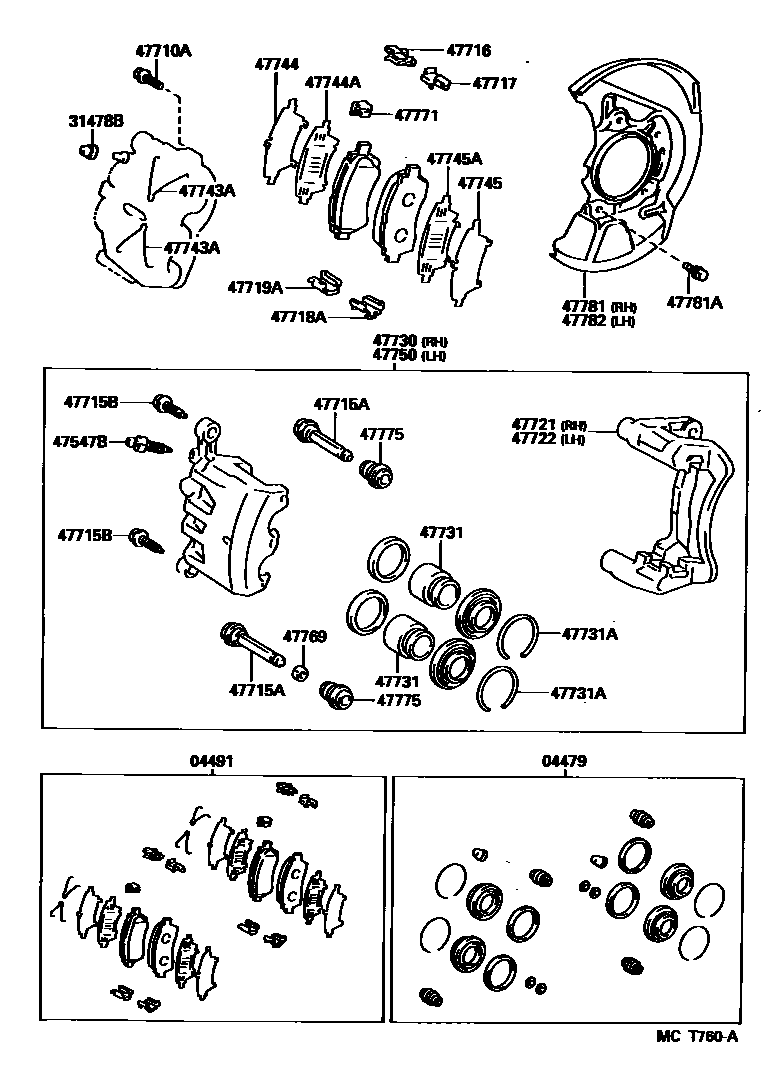

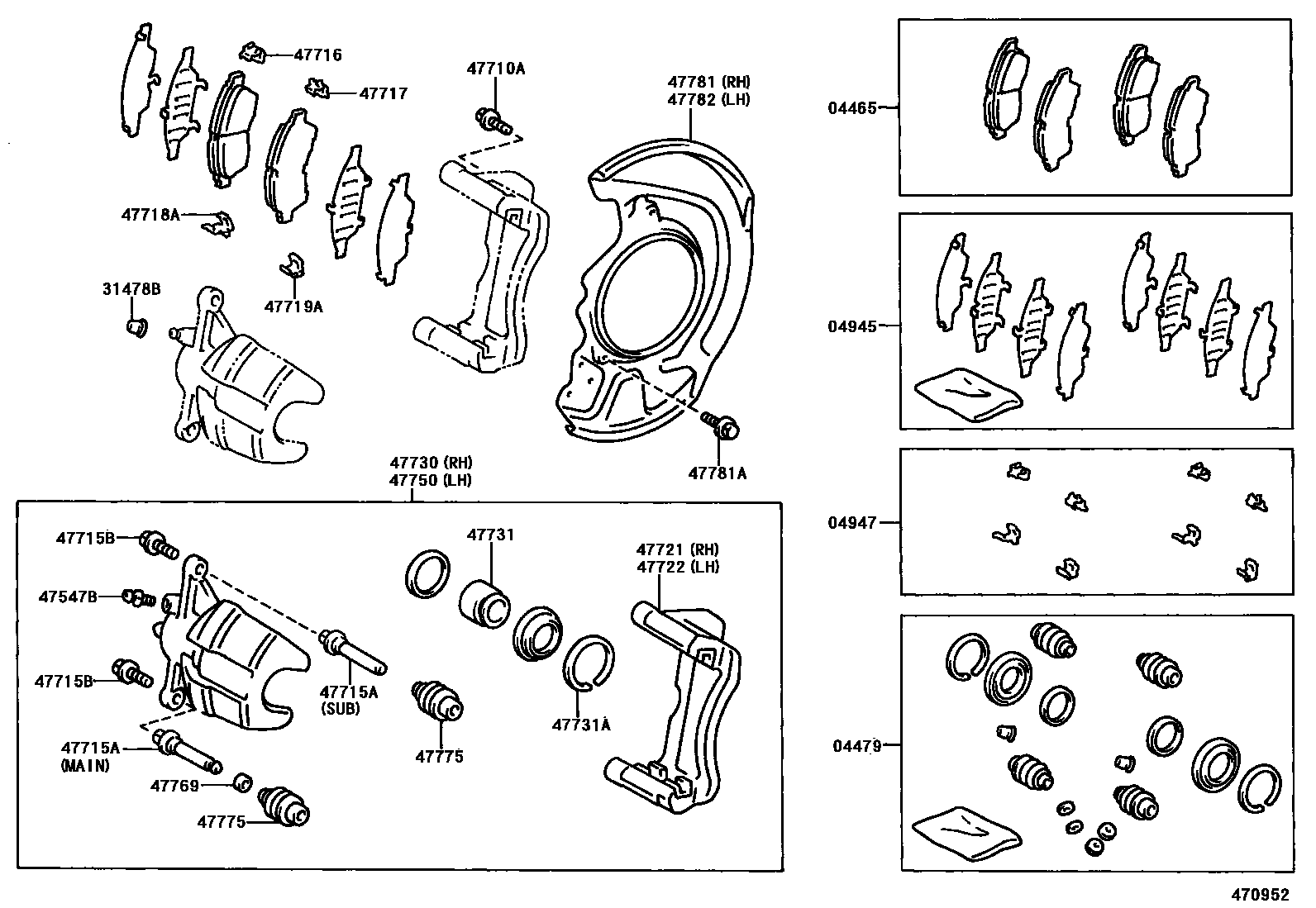

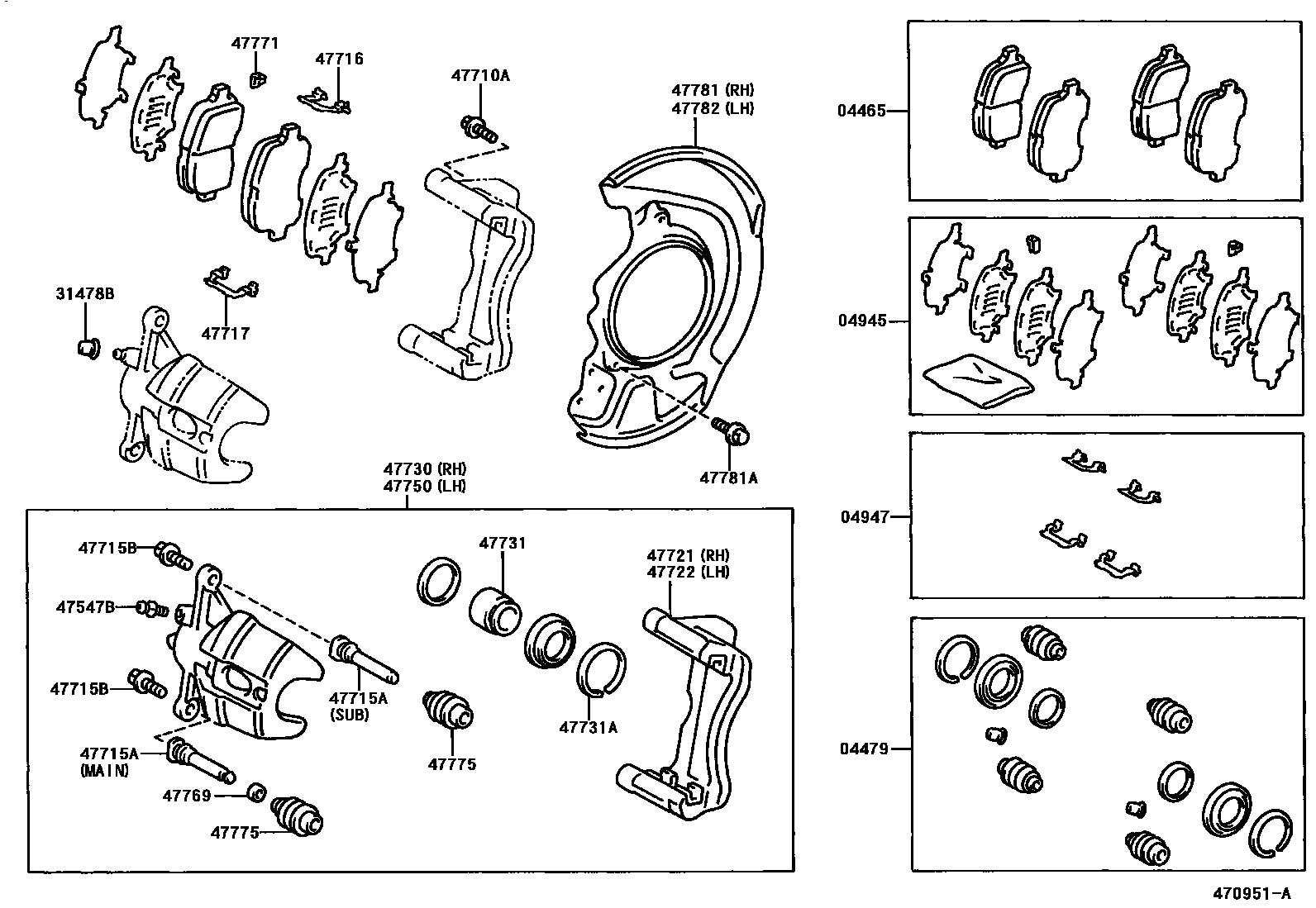

Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 5 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-33020 · 04465-33050 · 04465-33060 · 04465-33070 · 04465-33130 |
| 04479 | Front disc brake cylinder assembly | 04479-20170 · 04479-33010 · 04479-33130 · 04479-50080 |
| 04491 | Front disc brake pad assembly | 04491-33010 · 04491-33011 · 04491-33030 · 04491-33040 · 04491-33041 · 04491-33042 · 04491-33080 · 04491-33100 · 04491-33110 |
| 04945 | Front silencer gasket assembly | 04945-33010 · 04945-33020 · 04945-33030 · 04945-33040 |
| 04947 | Front disc brake mounting kit | 04947-33040 · 04947-33050 · 04947-33060 · 04947-33070 · 04947-33080 · 04947-33100 · 04947-33120 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47715-22070 · 47715-22080 · 47715-24010 · 47715-33010 · 47715-33030 · 47715-33040 · 47715-50010 · 47715-50030 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90105-08164 · 90105-08346 · 90109-08214 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-33010 · 47716-33030 · 47716-33031 · 47716-33050 · 47716-33080 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47716-33020 · 47716-33040 · 47716-33041 · 47716-33060 · 47716-33080 |
| 47718A | No. 3 pad support plate (for front disc brake) | 47717-20150 · 47717-33010 · 47717-33030 · 47717-33031 |
| 47719A | No. 4 pad support plate (for front disc brake) | 47717-20160 · 47717-33020 · 47717-33040 · 47717-33041 |
| 47721 | Right front disc brake cylinder retainer | 47721-33010 · 47721-33020 · 47721-33040 · 47721-33050 · 47721-33080 · 47721-33090 · 47721-33091 |
| 47722 | Left front disc brake cylinder retainer | 47721-33080 · 47722-33010 · 47722-33020 · 47722-33030 · 47722-33050 · 47722-33060 · 47722-33061 |
| 47730 | Right front disc brake cylinder assembly | 47730-33030 · 47730-33040 · 47730-33070 · 47730-33080 · 47730-33110 · 47730-33111 · 47730-33120 |
| 47731 | Front disc brake piston | 47731-20190 · 47731-33010 · 47731-33030 · 47731-33050 |
| 47731A | retaining ring (for front disc brake piston) | 90522-49001 · 90522-66001 · 90522-67001 |
| 47743A | Silencer spring (for front disc brake) | 47743-33010 · 47743-50030 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47745-33010 · 47745-33020 · 47745-33030 |
| 47744A | No. 3 silencer gasket (for front disc brake) | 47744-33010 · 47744-33020 · 47744-33030 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47745-33010 · 47745-33020 · 47745-33030 |
| 47745A | No. 4 silencer gasket (for front disc brake) | 47744-33010 · 47744-33020 · 47744-33030 |
| 47750 | Left disc brake cylinder assembly | 47750-33030 · 47750-33040 · 47750-33070 · 47750-33080 · 47750-33110 · 47750-33111 · 47750-33120 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-33020 · 47769-50010 |
| 47771 | No. 1 pad wear indicator plate | 47771-33010 · 47771-50010 |
| 47775 | Bushing boot (for front disc brake) | 47775-20080 · 47775-33020 · 47775-50010 |
| 47781 | Right front disc brake dust cover | 47703-33010 · 47703-33020 · 47781-33010 · 47781-33020 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 |
| 47782 | Left front disc brake dust cover | 47704-33010 · 47704-33020 · 47782-33010 · 47782-33020 |
