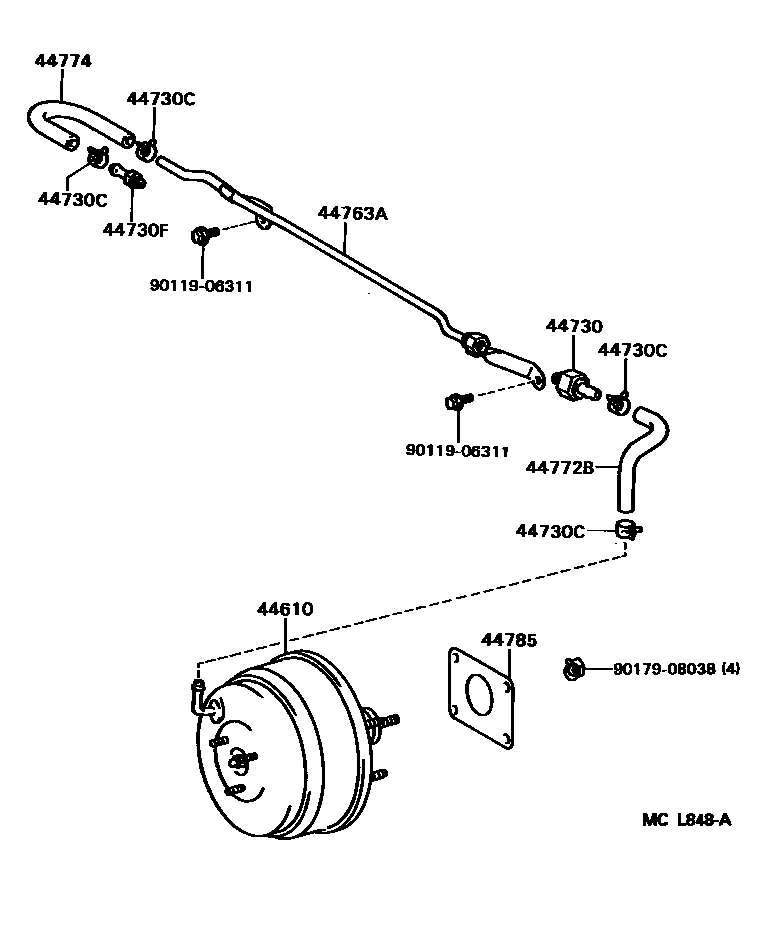

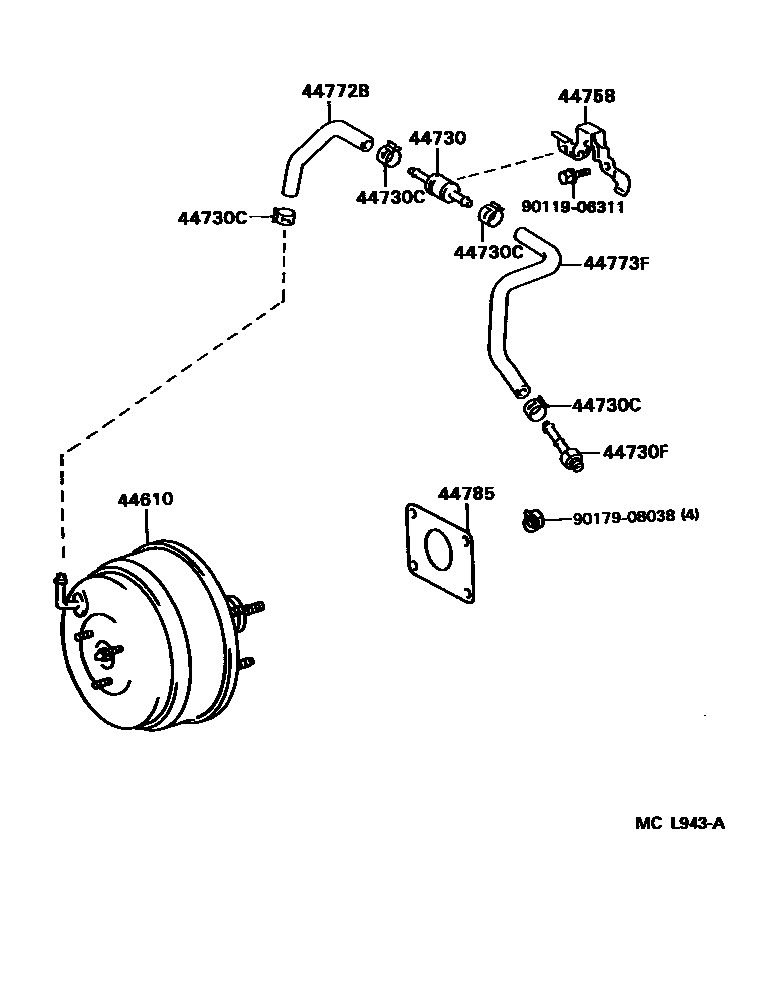

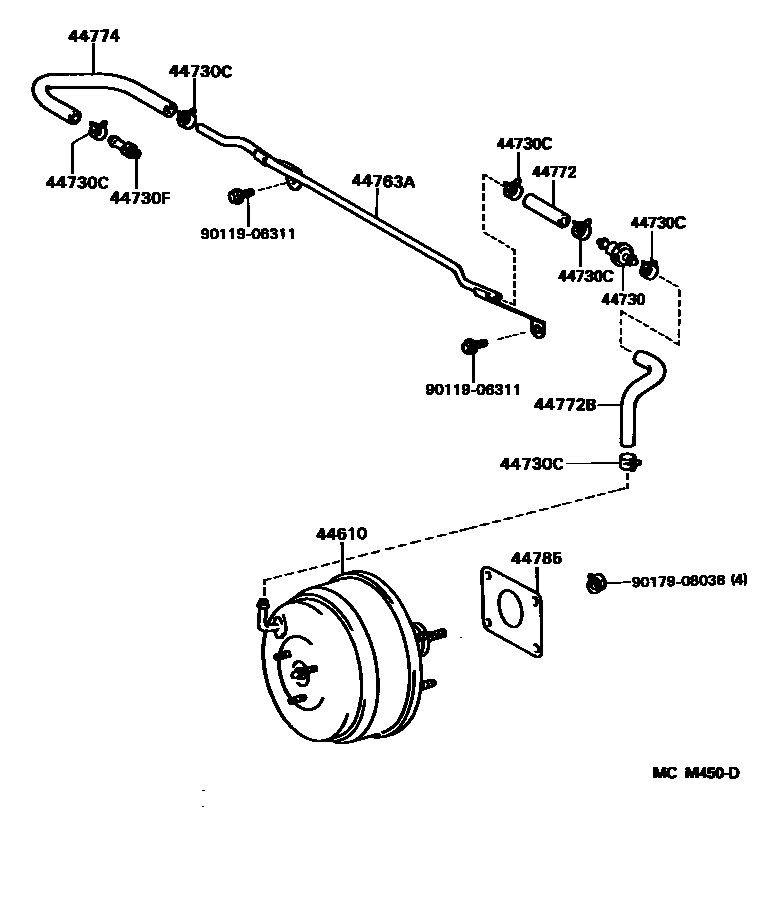

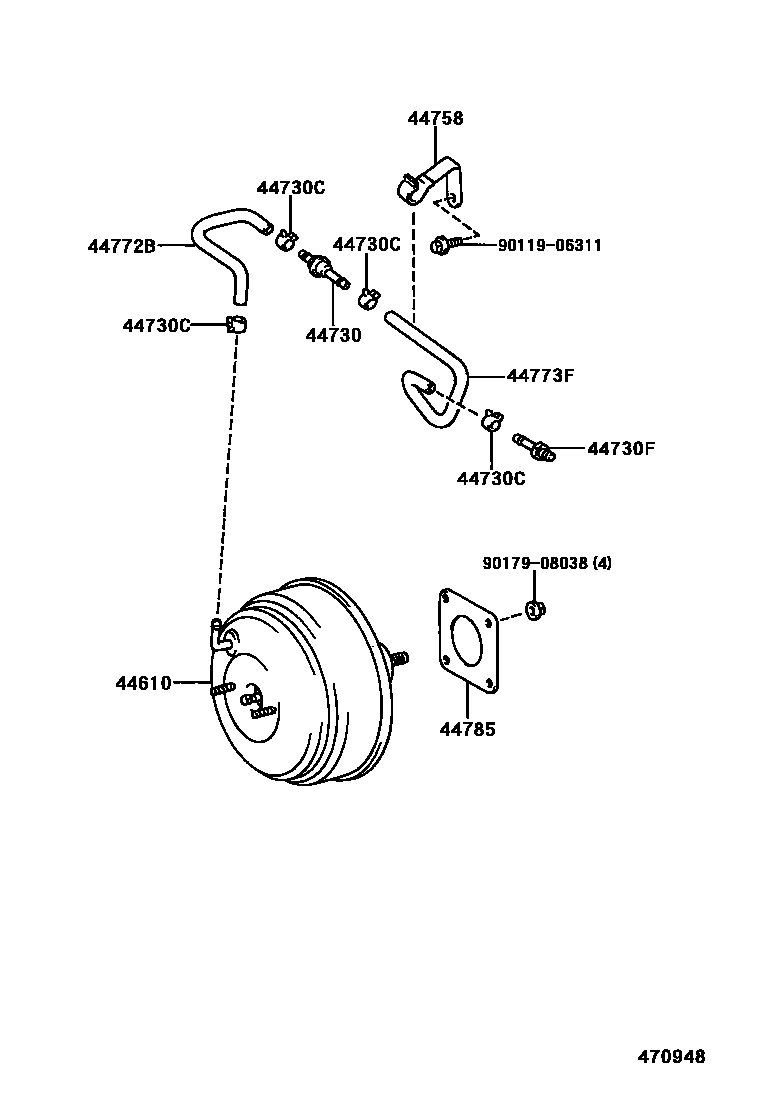

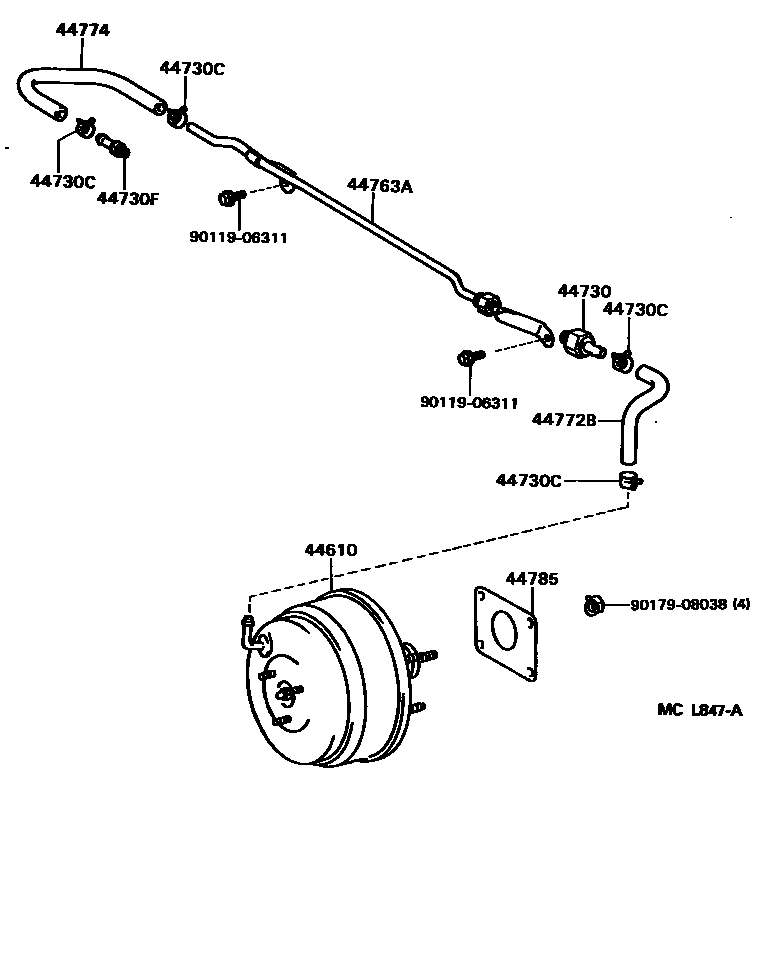

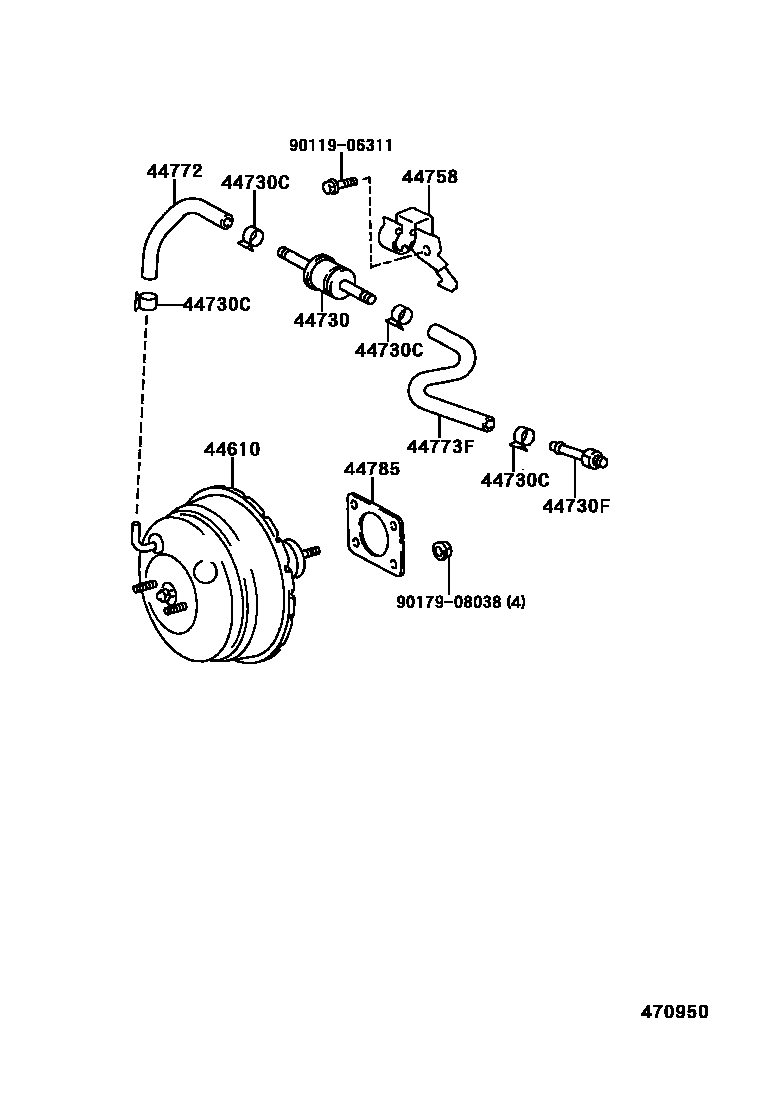

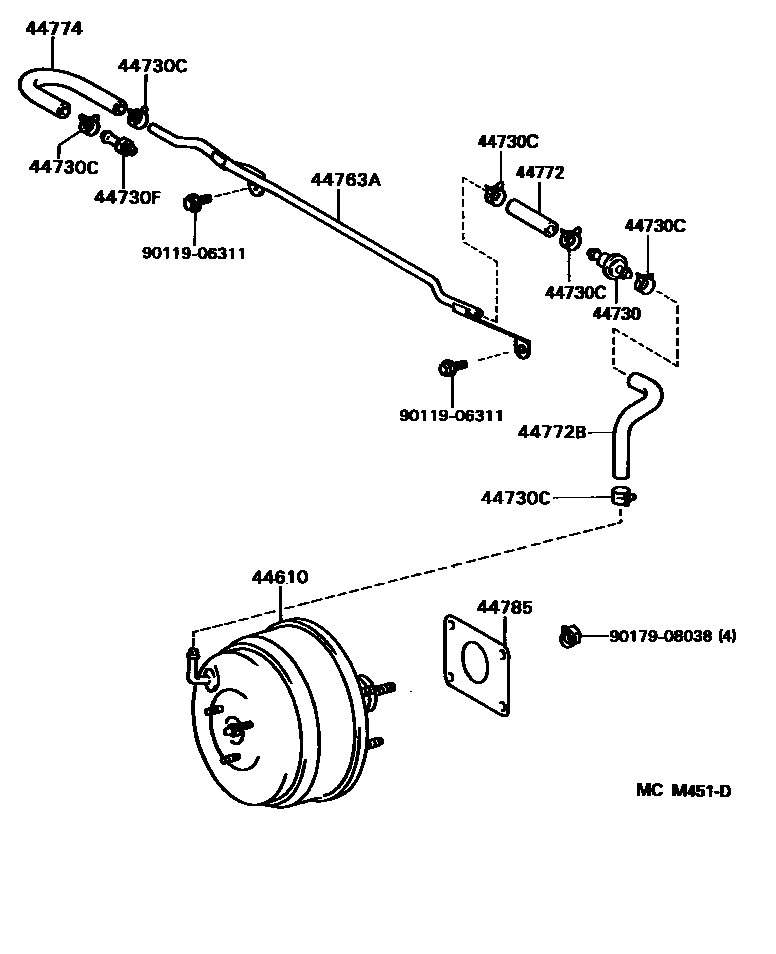

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 7 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-33010 · 44610-33040 · 44610-33080 · 44610-33150 · 44610-33190 · 44610-33290 · 44610-33330 · 44610-33470 · 44610-33500 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 · 44730-20120 · 44730-22120 |
| 44730C | Clip (for vacuum hose) | 90467-16002 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 |
| 44758 | Vacuum check valve bracket | 44758-33010 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-33010 · 44763-33020 |
| 44772 | Hoses (check valve to connector tube) | 44772-33040 |
| 44772B | Hoses (check valve to brake booster) | 44772-33010 · 44772-33020 · 44772-33030 |
| 44773F | Hoses (connector to check valve) | 44773-33010 · 44773-33020 |
| 44774 | Hoses (joints to connector tubes) | 44774-33010 · 44774-33020 · 44774-33030 · 44774-33040 |
| 44785 | brake booster pad | 44785-32010 |
