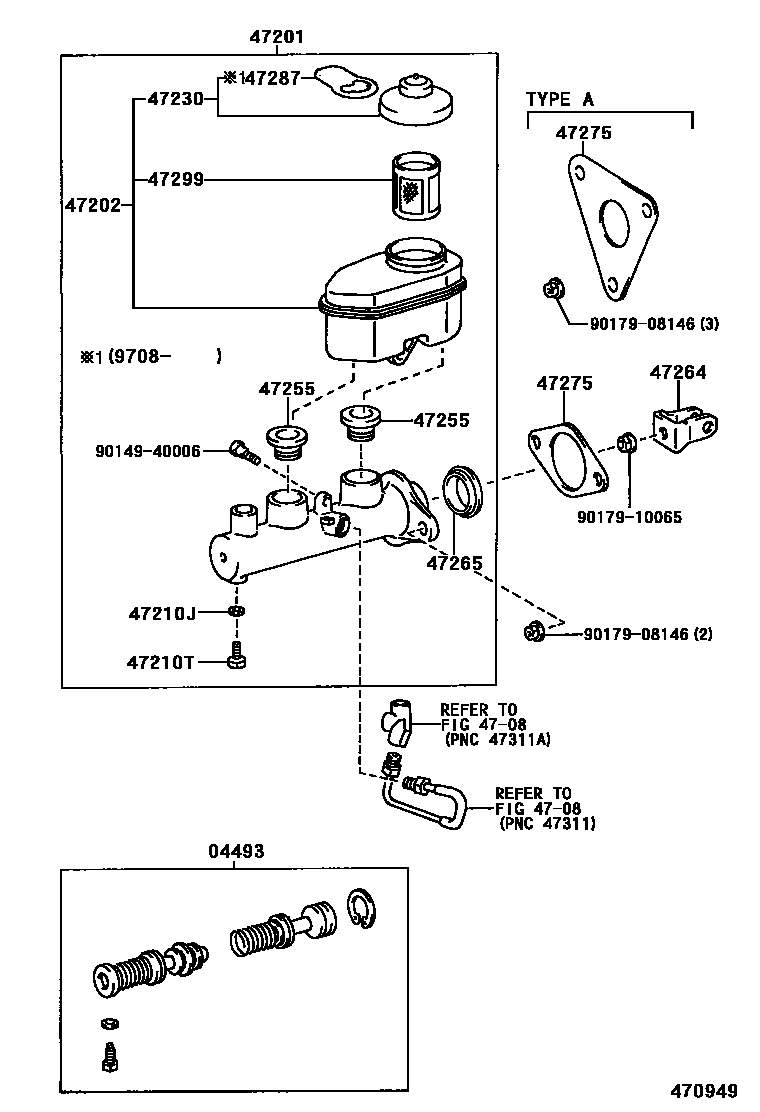

Toyota CAMRY 制动总泵 — Figure 4702
Toyota CAMRY EPC diagram 4702, 制动总泵, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-2B010 · 04493-33010 · 04493-33020 · 04493-33030 · 04493-33040 · 04493-33050 · 04493-33060 · 04493-44010 |
| 47201 | Brake master cylinder sub-assembly | 47201-33030 · 47201-33040 · 47201-33050 · 47201-33060 · 47201-33090 · 47201-33110 · 47201-33130 · 47201-33140 · 47201-33160 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-33011 · 47220-33040 |
| 47210J | Gasket (for master cylinder) | 90029-43001 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-12040 · 47230-20140 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-16020 · 47264-20060 · 47264-33010 |
| 47265 | Master pump dust jacket | 47265-20050 |
| 47275 | brake master cylinder gasket | 47275-12020 · 47275-32010 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-24010 |
