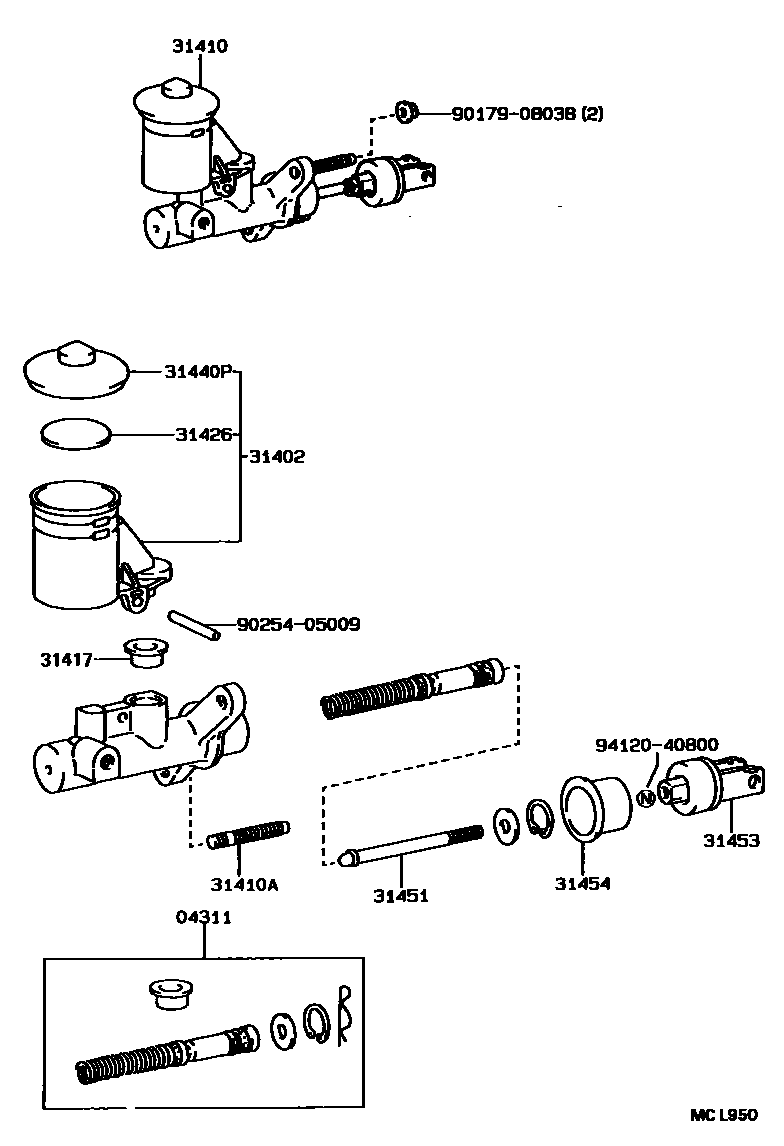

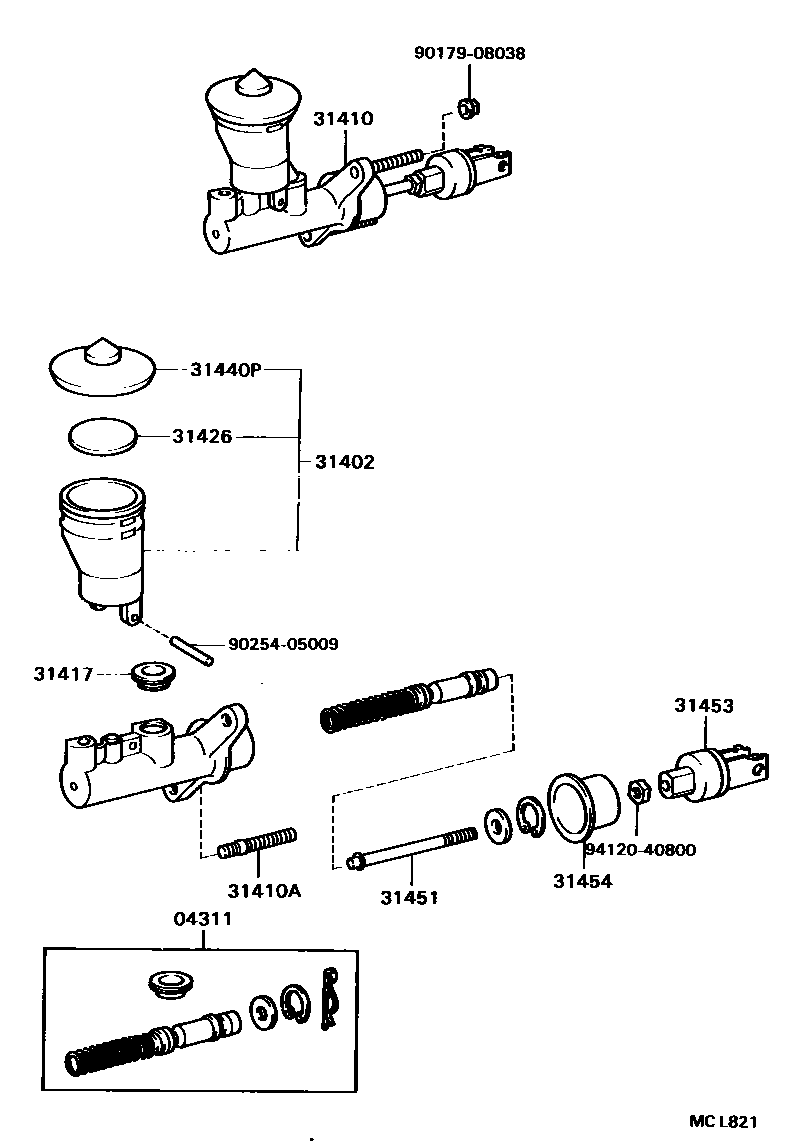

Toyota CAMRY 离合器总泵 — Figure 3103
Toyota CAMRY EPC diagram 3103, 离合器总泵, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-12080 · 04311-12110 · 04311-60150 |
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-33010 · 31402-35030 |
| 31410 | Clutch master cylinder assembly | 31410-33011 · 31410-33021 · 31410-33040 |
| 31410A | Bolt (for securing clutch master cylinder) | 90116-08146 · 90116-08357 |
| 31417 | Clutch reservoir retaining ring | 31417-35010 |
| 31426 | Clutch master cylinder reservoir float | 31426-30011 |
| 31440P | Clutch master cylinder fluid reservoir filler cap assembly | 47230-20040 |
| 31451 | Clutch master cylinder push rod | 31451-35080 · 31451-36040 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-17010 · 31404-33011 |
| 31454 | Clutch master cylinder dust boot | 31454-16010 · 31454-24010 |
