Toyota CAMRY 燃油喷射系统 — Figure 2211

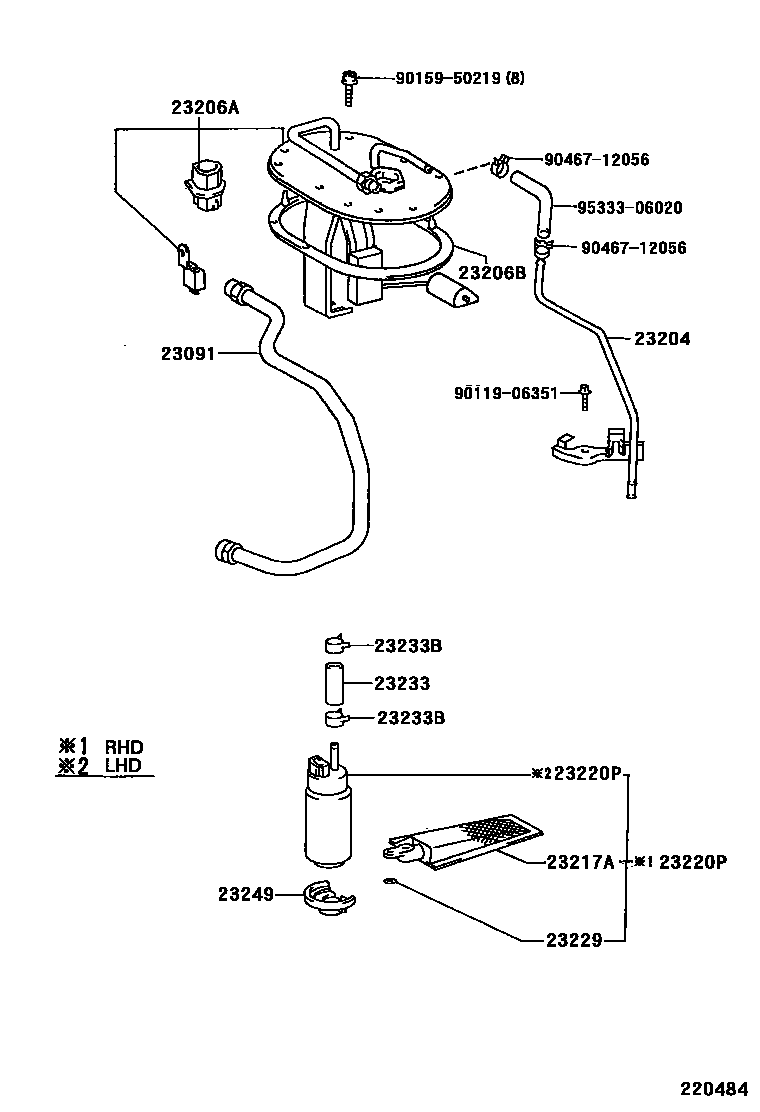

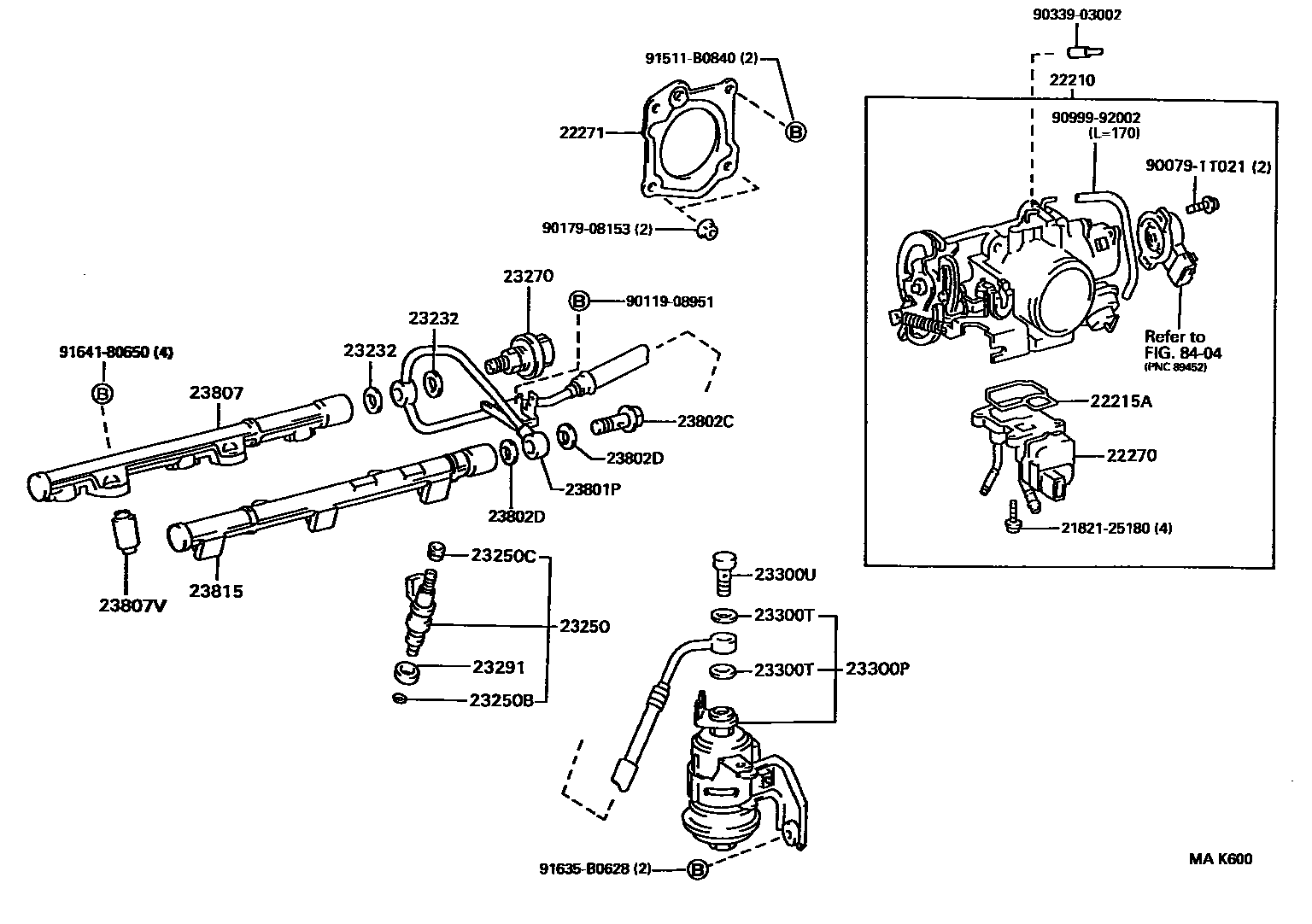

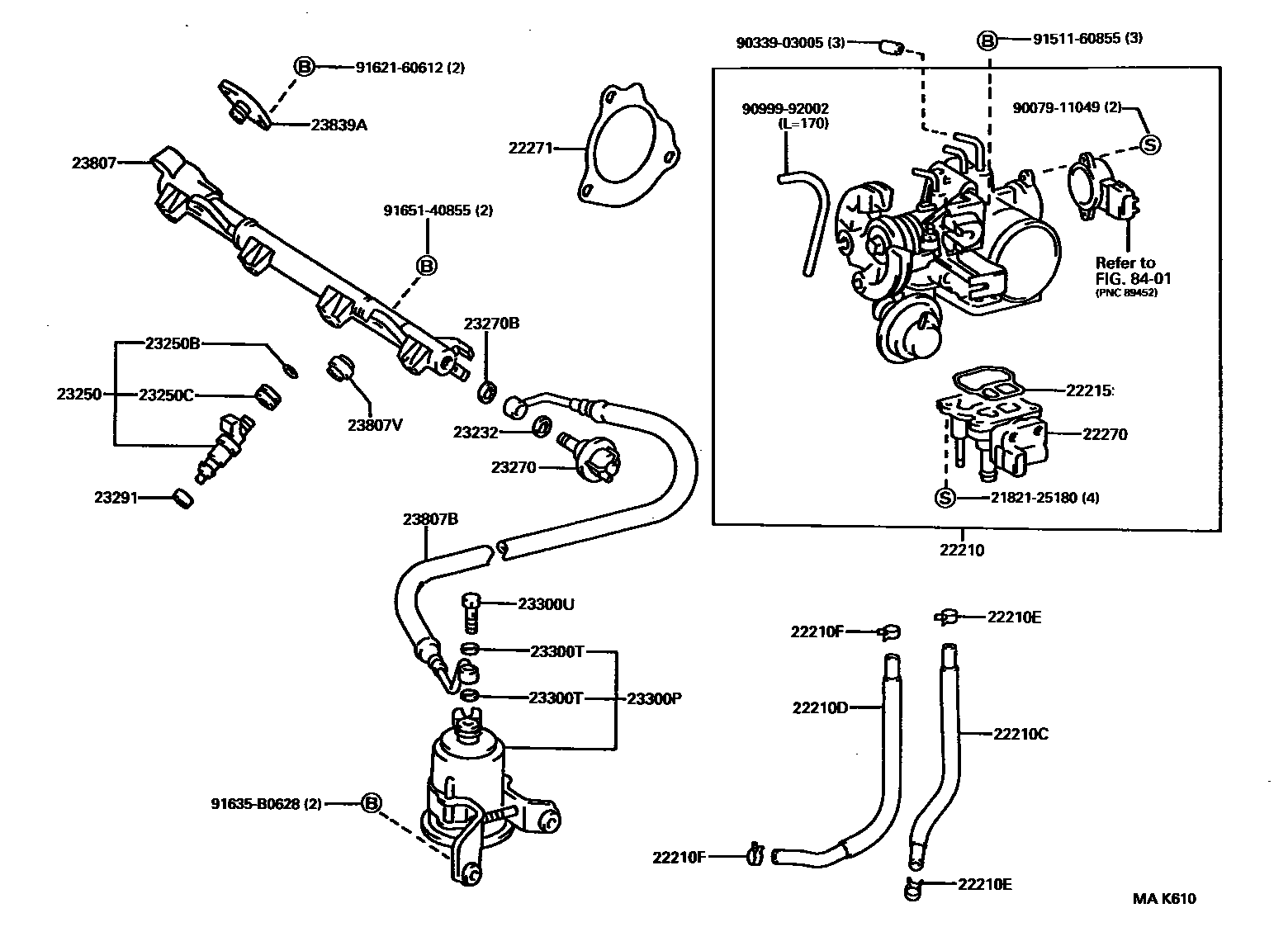

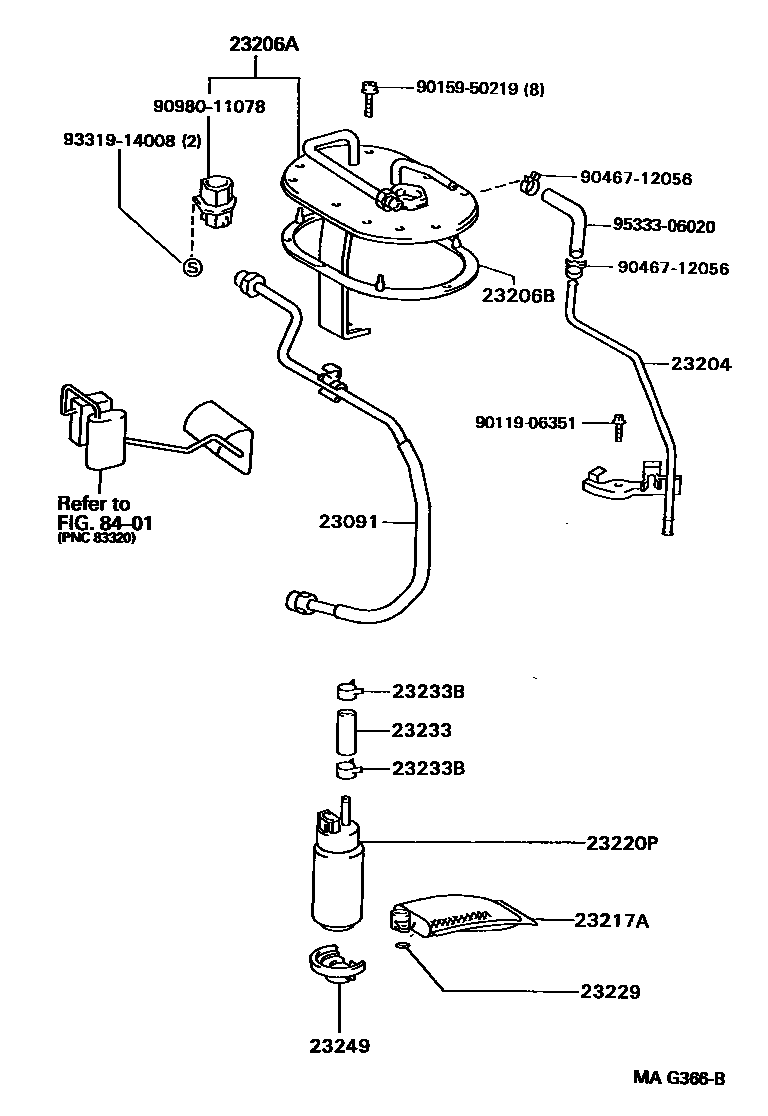

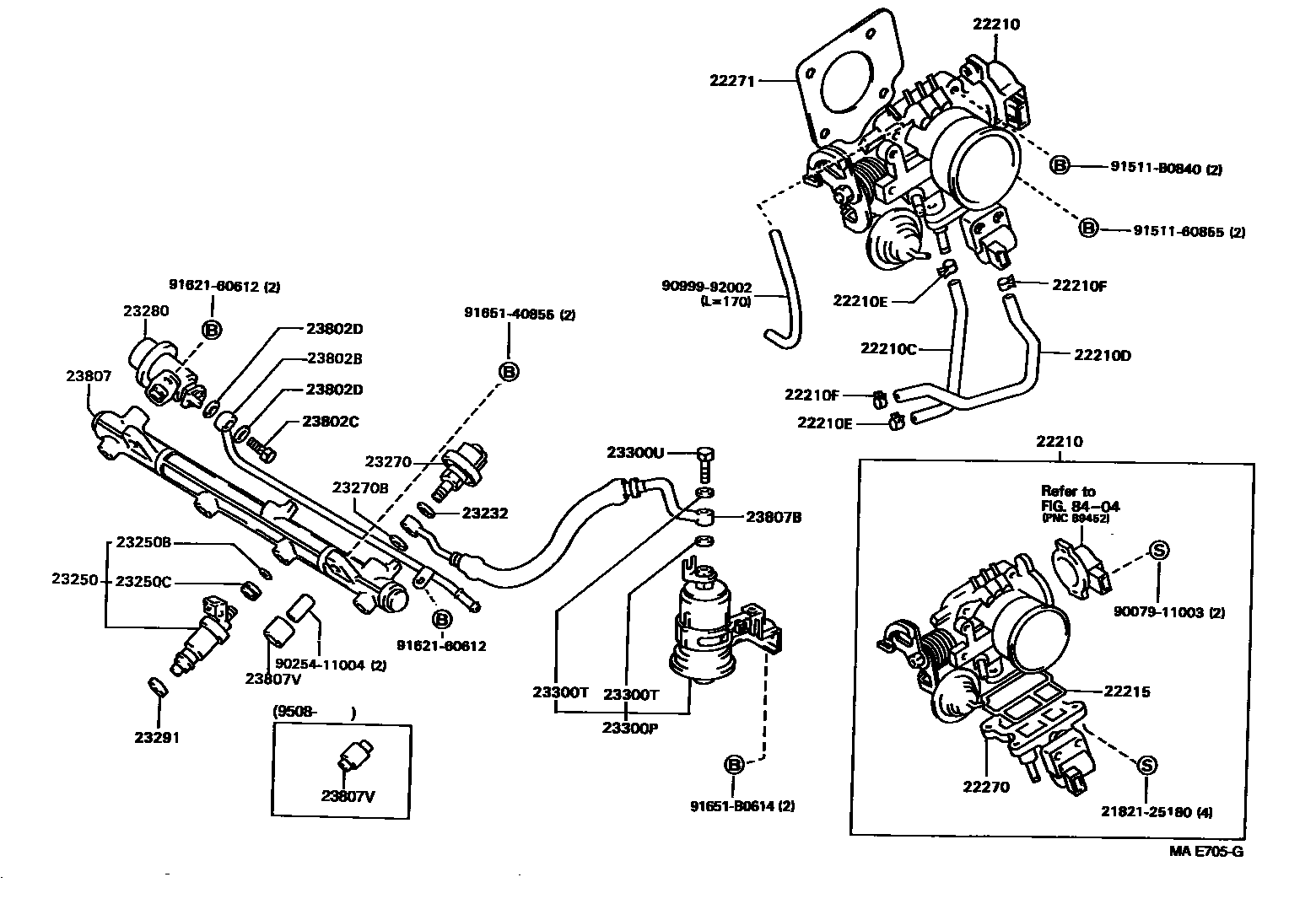

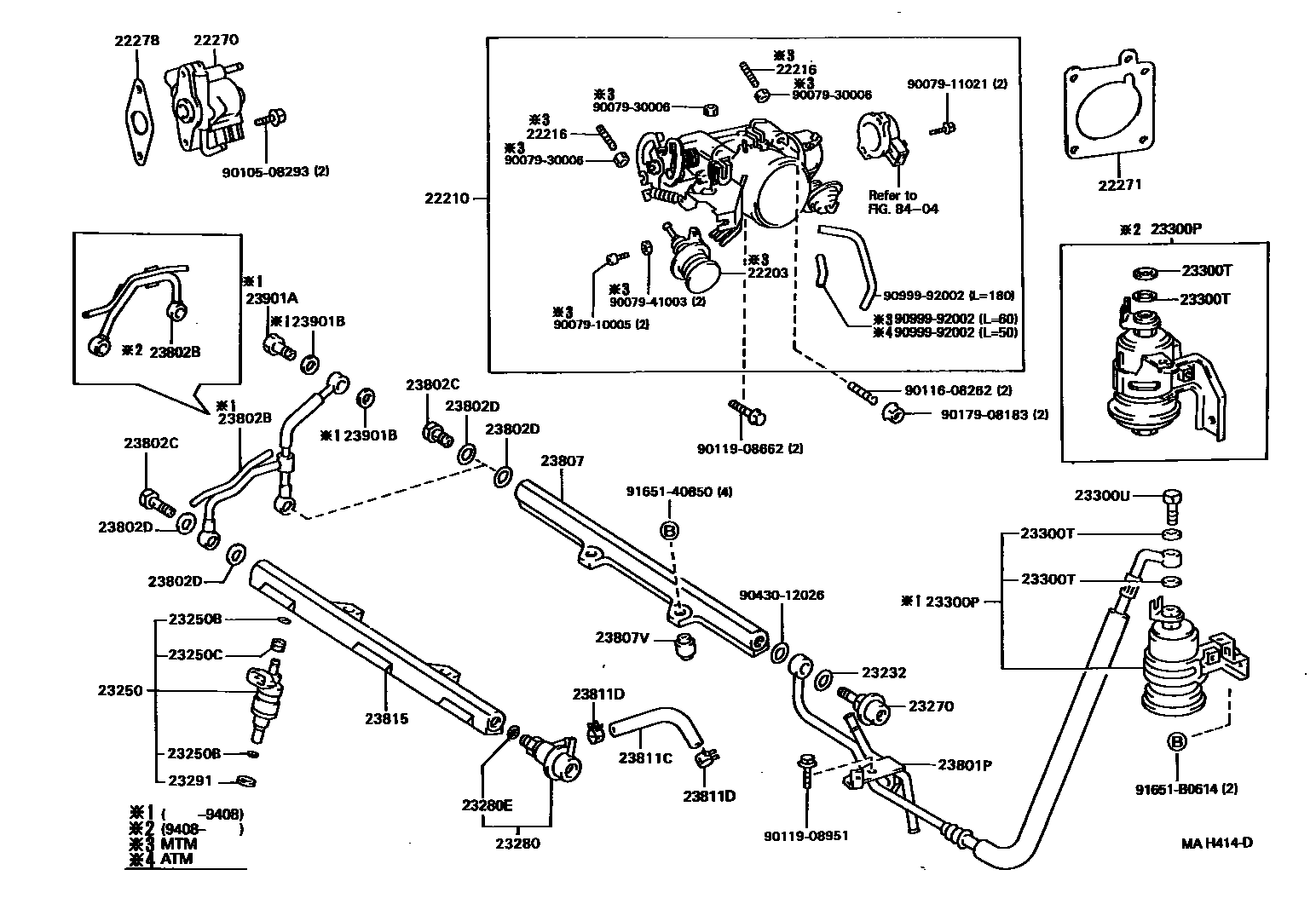

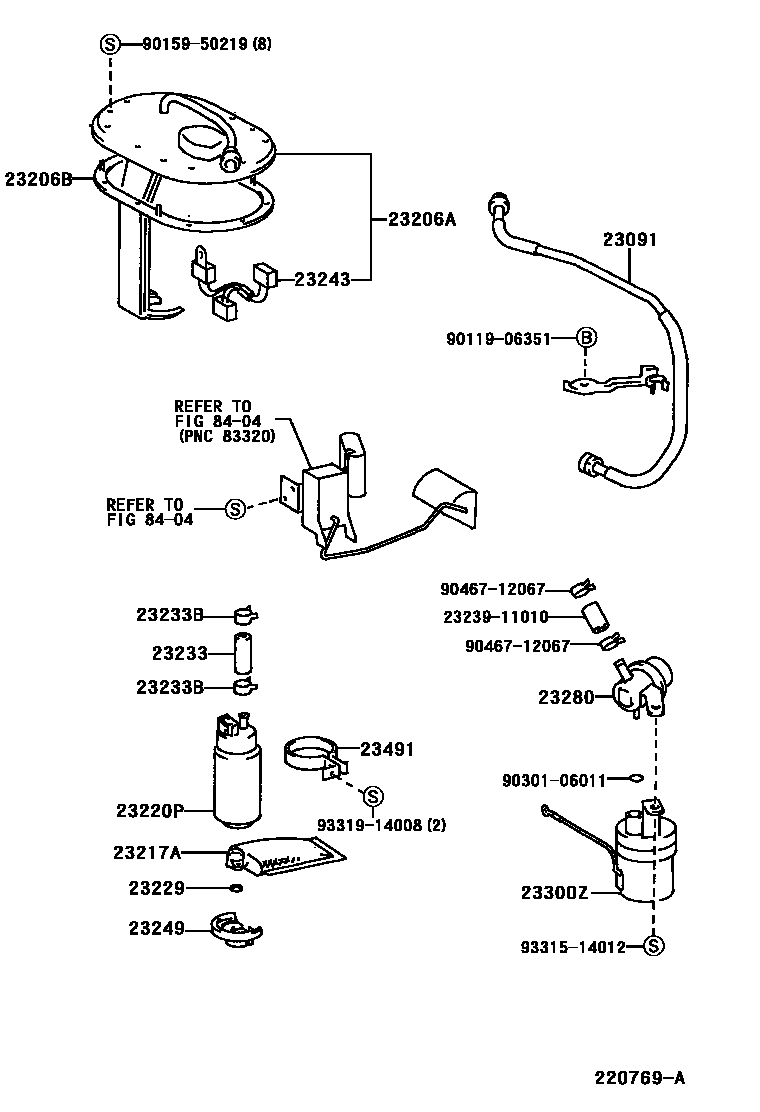

Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 7 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22203 | Deceleration buffer sub-assembly (for throttle body) | 22202-62080 |
| 22210 | Throttle body assembly | 22210-03050 · 22210-20090 · 22210-62080 · 22210-62090 · 22210-74580 · 22210-74581 · 22210-74590 · 22210-74591 · 22210-7A350 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16282-74050 · 16282-74080 · 16283-74010 · 16283-74050 |
| 22210D | HOSE, WATER BY-PASS, NO.2 | 16282-74080 · 16282-74100 · 16283-74010 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 90467-13050 |
| 22210F | Hose clamp or clip (for No. 2 water bypass hose) | 90467-13050 |
| 22215 | Throttle body cover gasket | 22215-03010 · 22215-74400 |
| 22215A | Idle speed control valve gasket | 22215-20010 |
| 22216 | Deceleration buffer adjustment screw | 90079-13009 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-03030 · 22270-20031 · 22270-62020 · 22270-74090 · 22270-74100 · 22270-74190 · 22270-74200 · 22270-74340 |
| 22271 | Throttle body gasket | 22271-20010 · 22271-62030 · 22271-74021 · 22271-74022 · 22271-74070 |
| 22278 | Idle speed control valve gasket | 22278-62030 |
| 23091 | Fuel pump pipe sub-assembly | 23091-62010 · 77209-41010 |
| 23204 | Fuel pump return pipe sub-assembly | 23204-62010 |
| 23206A | fuel pump bracket | 23206-62010 · 23206-62020 · 23206-62030 · 77203-41020 |
| 23206B | fuel pump bracket gasket | 77169-60010 |
| 23217A | fuel pump filter | 23217-62020 |
| 23220P | fuel pump assembly | 23220-03020 · 23220-74020 · 23221-16490 · 23221-46060 · 23221-62010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23232 | Gasket (for fuel pump hose) | 23232-41081 · 23279-74010 |
| 23233 | fuel pump hose | 23239-11010 · 23239-16010 · 23239-63010 |
| 23233B | Clamp (for fuel pump hose) | 90467-12067 · 90467-13054 |
| 23243 | Fuel pump motor wiring harness | 23243-16010 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-11070 · 23209-62030 · 23209-74100 |
| 23250B | O-ring (for fuel injector) | 90301-07001 · 90301-07024 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-46010 · 23207-74010 · 23270-62010 |
| 23270B | Gasket (for pulsation damper hose) | 23232-41081 · 23279-74010 |
| 23280 | Fuel pressure regulator assembly | 23280-20020 · 23280-62020 · 23280-74100 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-09002 |
| 23291 | Injector vibration isolation pad | 23291-41010 · 23291-62010 |
| 23300P | Fuel filter (for EFI) | 23300-29055 · 23300-79305 · 23300-79365 · 23300-79475 |
| 23300T | Gasket (for fuel filter) | 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 · 96341-11200 |
| 23300Z | Fuel filter (for fuel tank) | 23300-20050 |
| 23491 | Fuel filter ground clamp | 23491-74010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-20030 · 23801-62040 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-62020 · 23802-74022 · 23802-74023 · 23802-74070 · 23812-62030 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-08004 · 90401-12015 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-08014 · 90430-12026 |
| 23807 | Oil pipe sub-assembly | 23807-74060 · 23814-20030 · 23814-62030 · 23814-62040 · 23814-74090 |
| 23807B | Fuel line hose | 23271-74330 · 23271-74430 · 23271-74490 · 23271-74510 |
| 23807V | No. 1 spacer (for oil pipe) | 90560-11020 · 90561-08020 · 90561-08053 |
| 23811C | Fuel hose (for fuel line to pressure regulator) | 95333-06020 |
| 23811D | Hose clip (for fuel hose) | 90467-11065 · 96135-41100 |
| 23815 | No. 2 oil pipeline | 23815-20030 · 23815-62030 · 23815-62040 |
| 23839A | No. 1 fuel pipe plug | 23839-74010 |
| 23901A | Connector bolt (for fuel pipe) | 90401-08011 |
| 23901B | Gasket (for fuel lines) | 90430-08012 |
