Toyota CAMRY 分电器 — Figure 1902

Toyota CAMRY EPC diagram 1902, 分电器, with 2 images and 13 PNC and OE references.

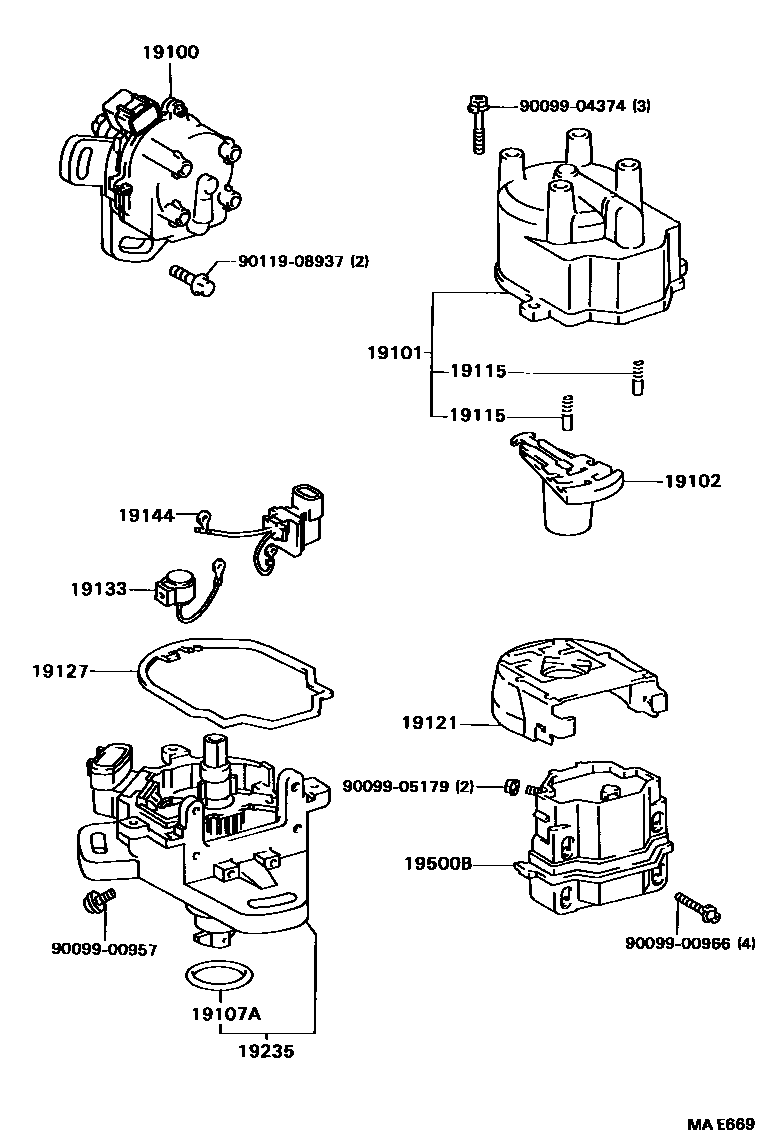

Toyota CAMRY 分电器 EPC diagram — MAE669
分电器 — MAE669 (199208 – 199708)

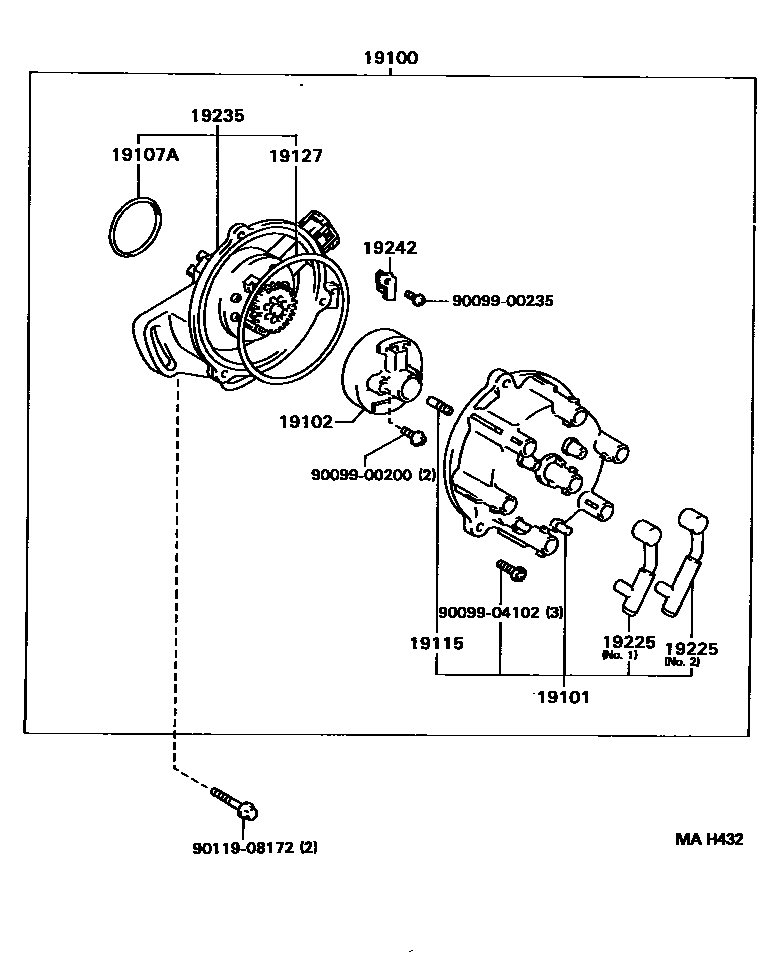

Toyota CAMRY 分电器 EPC diagram — MAH432
分电器 — MAH432 (199208 – 199708)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19050-74010 · 19050-74020 · 19050-74030 · 19100-62050
19101Distributor cover sub-assembly19101-62050 · 19101-74170 · 19101-74180
19102Distributor flame head sub-assembly19102-11031 · 19102-62030
19107ADistributor housing O-ring90099-14089 · 90099-14091 · 90099-14127
19115Distributor cover center piece19115-63010 · 19115-88280
19121dust cover19121-11080
19127Dust seal19127-61240 · 19127-63080 · 19127-74050
19133Distributor capacitor19133-16240
19144Distributor breaker lead19144-74100
19225rubber cap19225-62050 · 19225-62060
19235Distributor housing19235-62050 · 19235-74180
19242Cable clip19242-62030
19500BIgnition coil assembly90919-02163
