Toyota CAMRY 点火线圈和火花塞 /电热塞 — Figure 1901

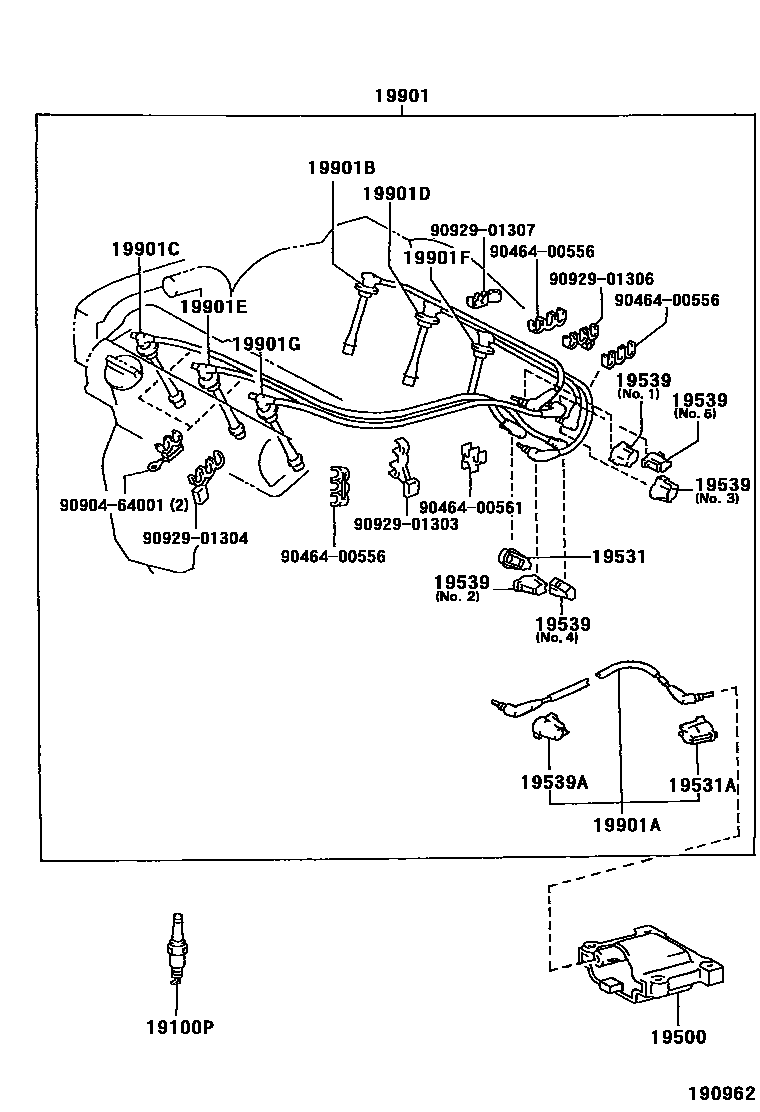

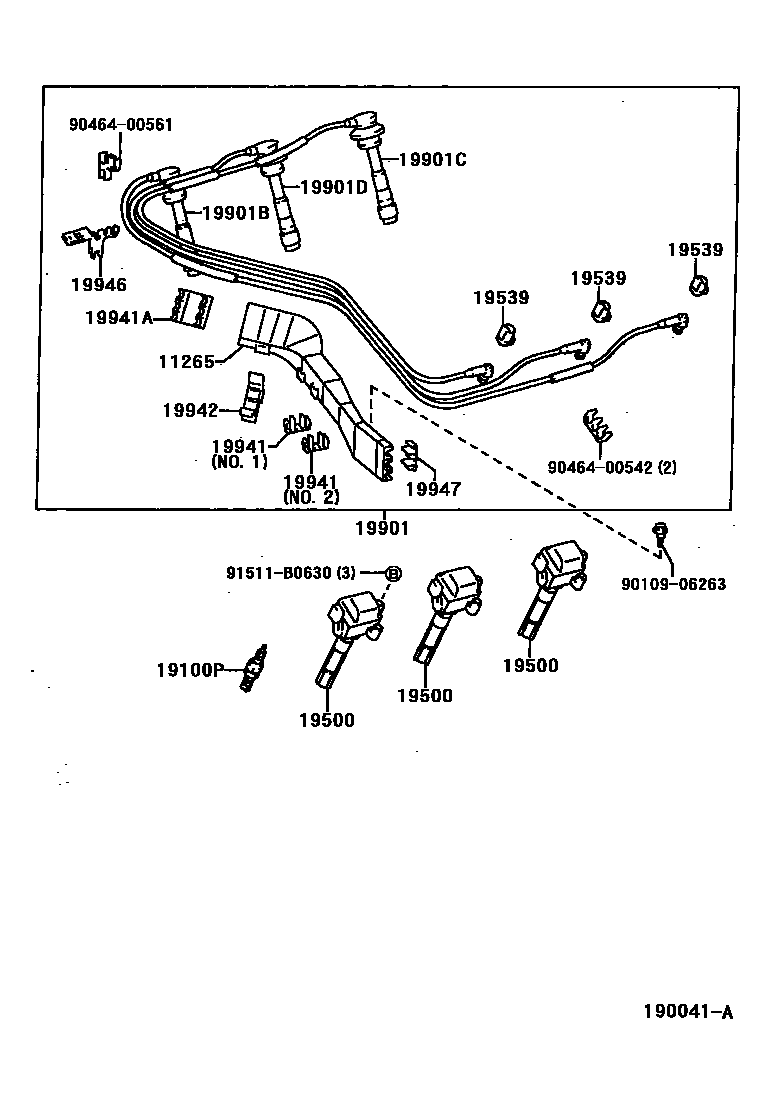

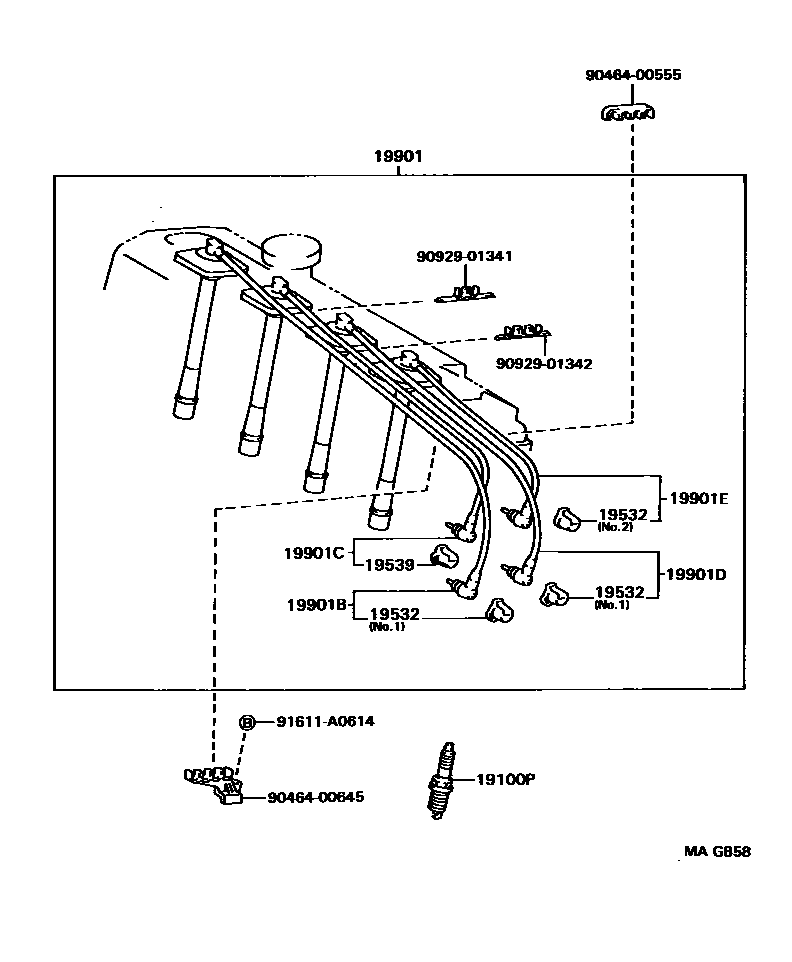

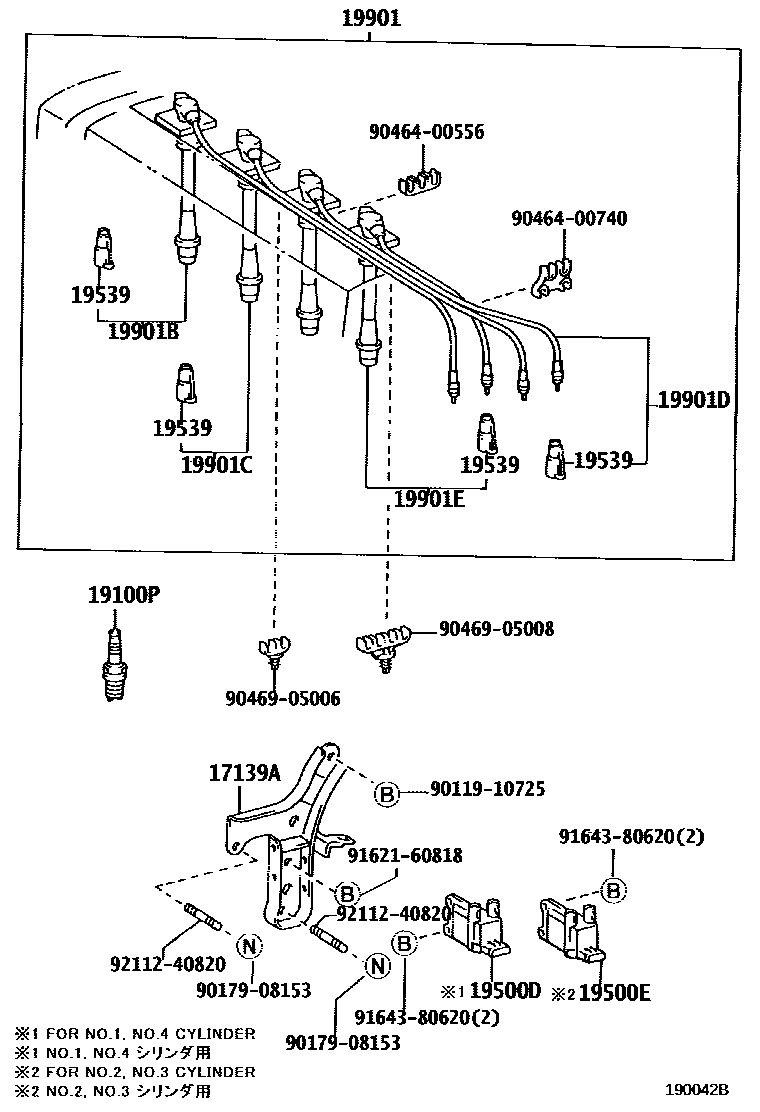

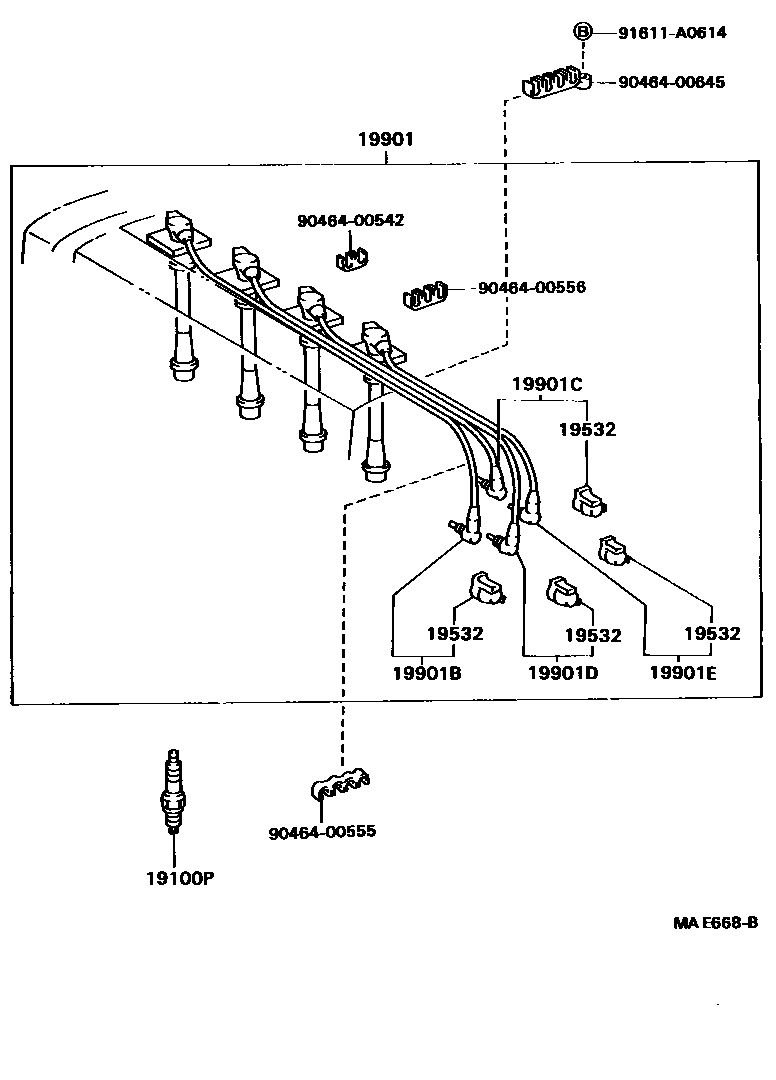

Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11265 | Coil and resistor wire covers | 11265-20020 |
| 17139A | No. 1 manifold stay | 17139-74180 |
| 19100P | spark plug | 90919-01131 · 90919-01184 · 90919-01198 |
| 19500 | Ignition coil assembly | 90919-02207 · 90919-02215 |
| 19500D | No. 1 ignition coil | 90919-02217 |
| 19500E | No. 2 ignition coil | 90919-02218 |
| 19531 | No. 1 damping wire fixing piece | 19531-46010 |
| 19531A | No. 3 damping wire fixing piece | 19531-74010 |
| 19532 | No. 2 damping wire fixing piece | 19532-46010 · 19532-50010 · 19539-74030 |
| 19539 | No. 4 damping wire fixing piece | 19539-11040 · 19539-50010 · 19539-62010 · 19539-62020 · 19539-70010 · 19539-74040 · 19539-74050 |
| 19539A | No. 5 damping wire fixing piece | 19539-11010 |
| 19901 | Coil and spark plug assembly with damper wire | 19037-20011 · 90919-21519 · 90919-21607 · 90919-22319 · 90919-22369 · 90919-22370 · 90919-22386 · 90919-22400 |
| 19901A | coil damping line | 19590-62030 |
| 19901B | No. 1 spark plug damper wire | 90919-15165 · 90919-15169 · 90919-15173 · 90919-15308 · 90919-15406 · 90919-15409 · 90919-15466 · 90919-15518 · 90919-15546 |
| 19901C | No. 2 spark plug damper wire | 90919-15166 · 90919-15170 · 90919-15176 · 90919-15309 · 90919-15408 · 90919-15411 · 90919-15465 · 90919-15521 · 90919-15547 |
| 19901D | No. 3 spark plug damper wire | 90919-15167 · 90919-15171 · 90919-15174 · 90919-15310 · 90919-15407 · 90919-15410 · 90919-15464 · 90919-15519 · 90919-15548 |
| 19901E | No. 4 spark plug damper wire | 90919-15168 · 90919-15172 · 90919-15177 · 90919-15259 · 90919-15261 · 90919-15463 · 90919-15522 · 90919-15549 |
| 19901F | No. 5 spark plug damper wire | 90919-15175 · 90919-15520 |
| 19901G | No. 6 spark plug damper wire | 90919-15178 · 90919-15523 |
| 19941 | No. 1 damping wire clip | 19941-20010 · 19941-20020 |
| 19941A | Clamp (for damping wire) | 19941-65040 |
| 19942 | No. 2 damping wire clip | 19942-20010 |
| 19946 | No. 3 impedance wire clip | 19946-20010 |
| 19947 | No. 4 impedance wire clip | 19947-20010 |
