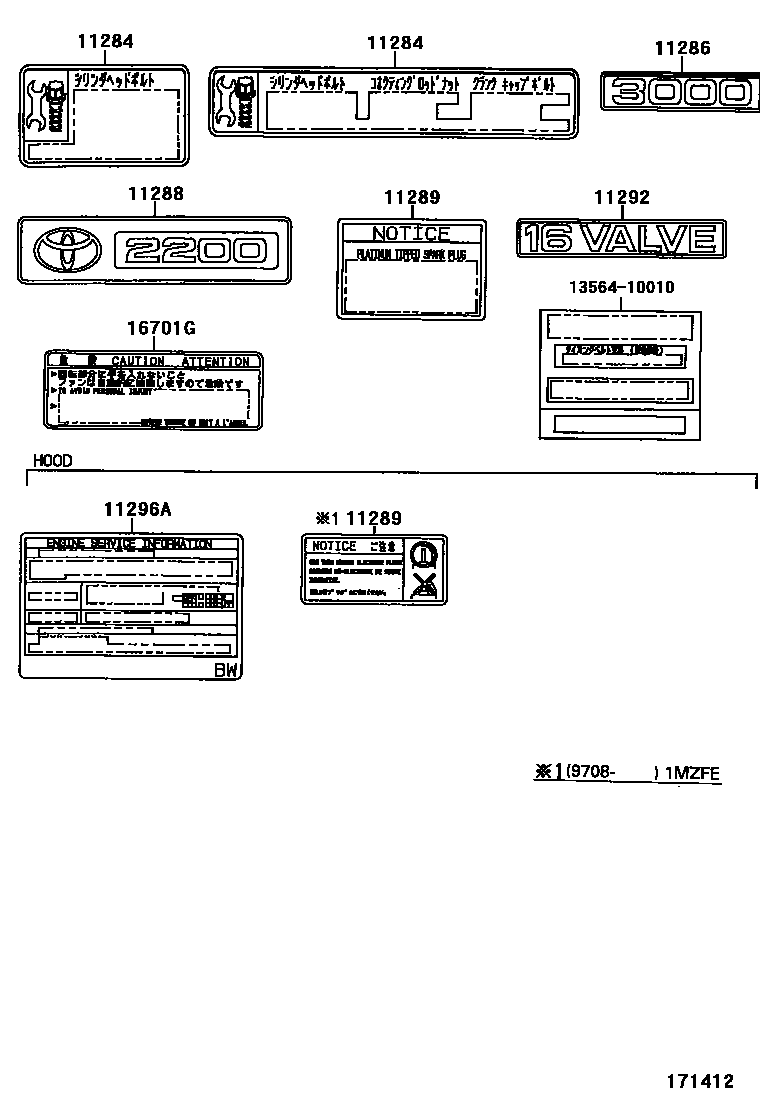

Toyota CAMRY 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota CAMRY EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11284 | Engine bolt information plate | 11284-62010 · 11284-74040 · 11284-74050 |
| 11286 | Engine specification plate | 11286-62020 |
| 11288 | Engine system nameplate | 11288-74040 · 11288-74041 · 11288-74060 · 11288-74061 |
| 11289 | Spark plug warning nameplate | 11289-62020 |
| 11292 | Engine No. 2 name plate | 11292-74120 · 11292-74130 |
| 11296A | Engine maintenance information label | 11296-62050 · 11296-74050 |
| 16701G | warning label | 88723-20081 |
