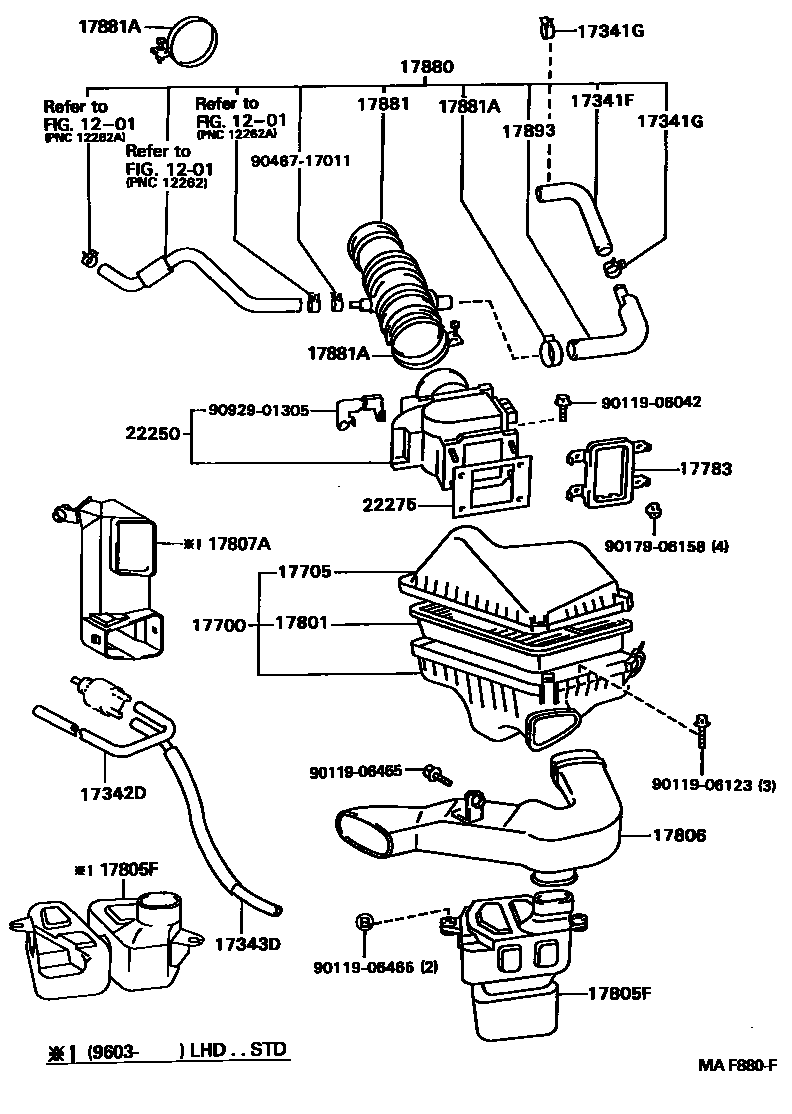

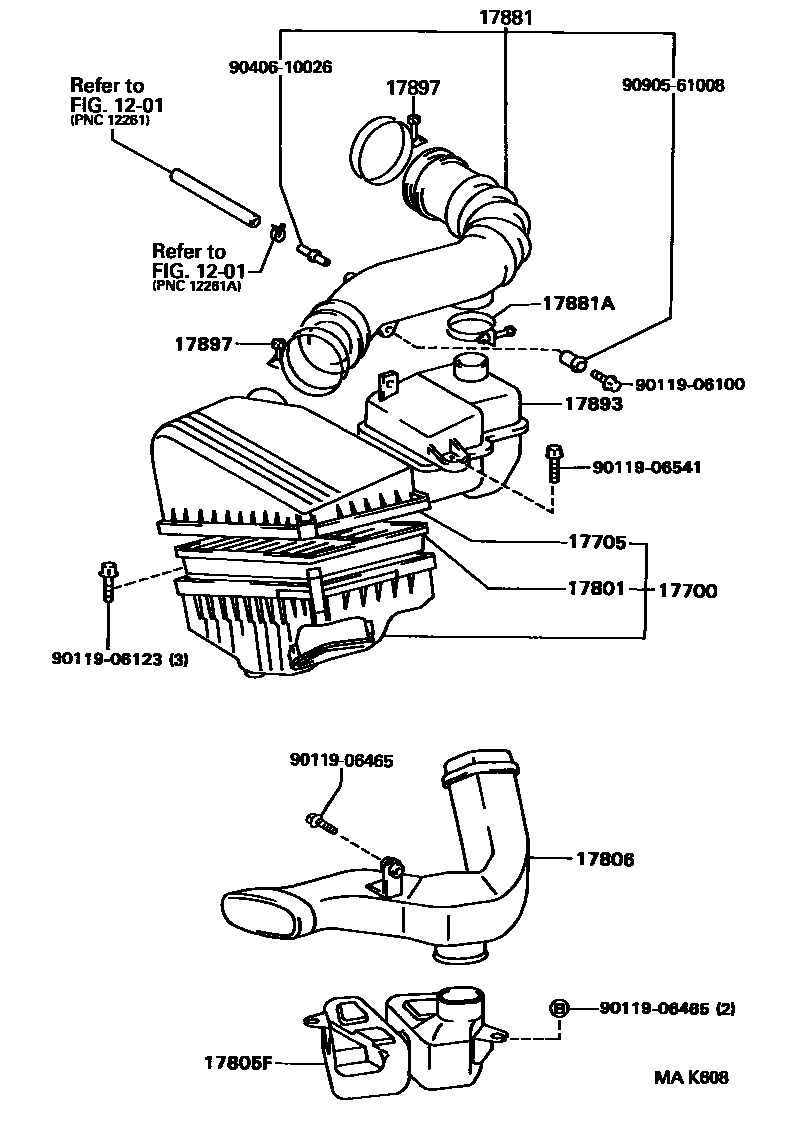

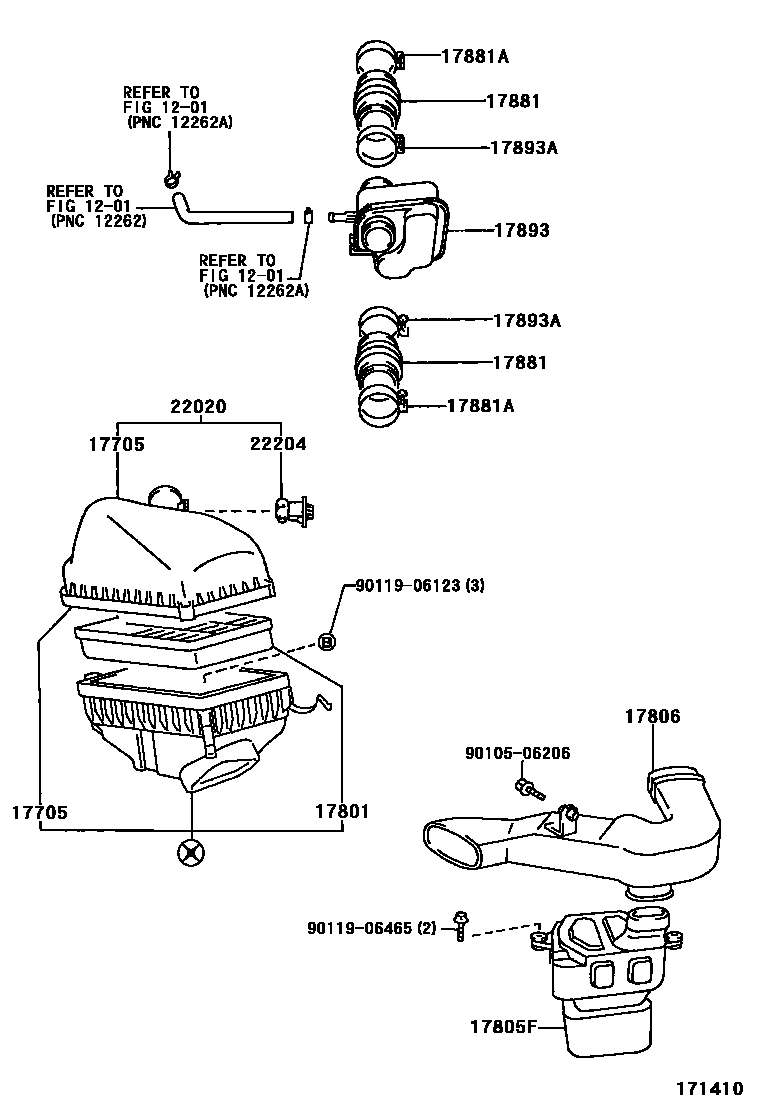

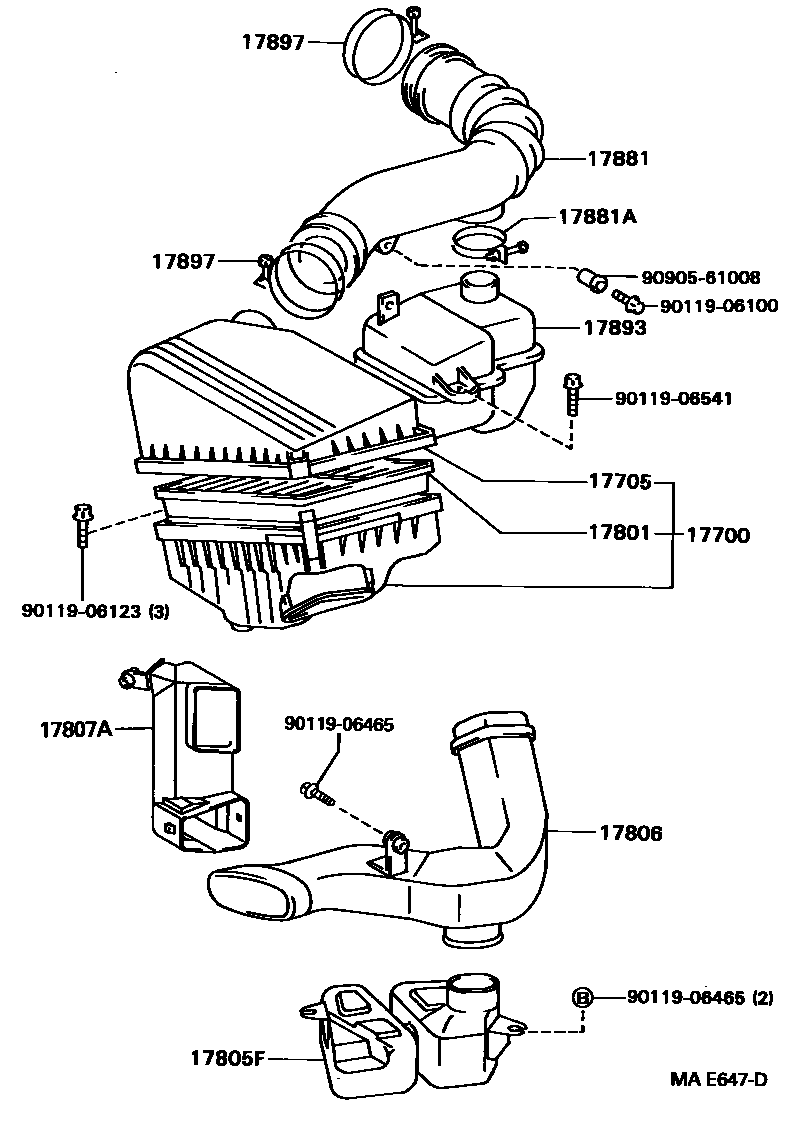

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341F | Air hose No. 1 | 17341-62030 |
| 17341G | Clip or clip (for No. 1 air hose) | 90467-23007 · 90467-26006 |
| 17342D | Air hose No. 2 | 17342-62040 · 17342-62060 |
| 17343D | No. 3 air hose | 17343-62060 |
| 17700 | air filter assembly | 17700-62040 · 17700-62080 · 17700-74380 |
| 17705 | Air filter cover sub-assembly | 17705-03030 · 17705-20050 · 17705-20051 · 17705-62040 · 17705-74260 |
| 17783 | air filter baffle | 17783-62020 |
| 17801 | Air filter element sub-assembly | 17801-03010 · 17801-74060 |
| 17805F | Intake resonator sub-assembly | 17805-74100 · 17805-74110 |
| 17806 | No. 2 air filter pipe assembly | 17806-20010 · 17806-74010 · 17806-74020 · 17806-74040 |
| 17807A | No. 3 air intake connecting pipe sub-assembly | 17807-74010 |
| 17880 | Air cleaner hose assembly | 17880-62040 |
| 17881 | No. 1 air cleaner hose | 17881-03040 · 17881-20090 · 17881-62040 · 17881-74390 · 17881-74840 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-80001 · 90467-41003 · 96111-10570 · 96111-10800 · 96111-10830 · 96111-10900 |
| 17893 | Intake resonator | 17893-03010 · 17893-20030 · 17893-20031 · 17893-62030 · 17893-74190 |
| 17893A | hose clamp | 96111-10830 |
| 17897 | Hose clamp (for air cleaner) | 96111-10710 |
| 22020 | Air flow meter assembly with air filter | 22020-20050 · 22020-20051 |
| 22204 | Intake air flow meter assembly | 22204-20010 |
| 22250 | Intake air flow meter assembly | 22250-62060 |
| 22275 | air flow meter gasket | 22275-43010 |
