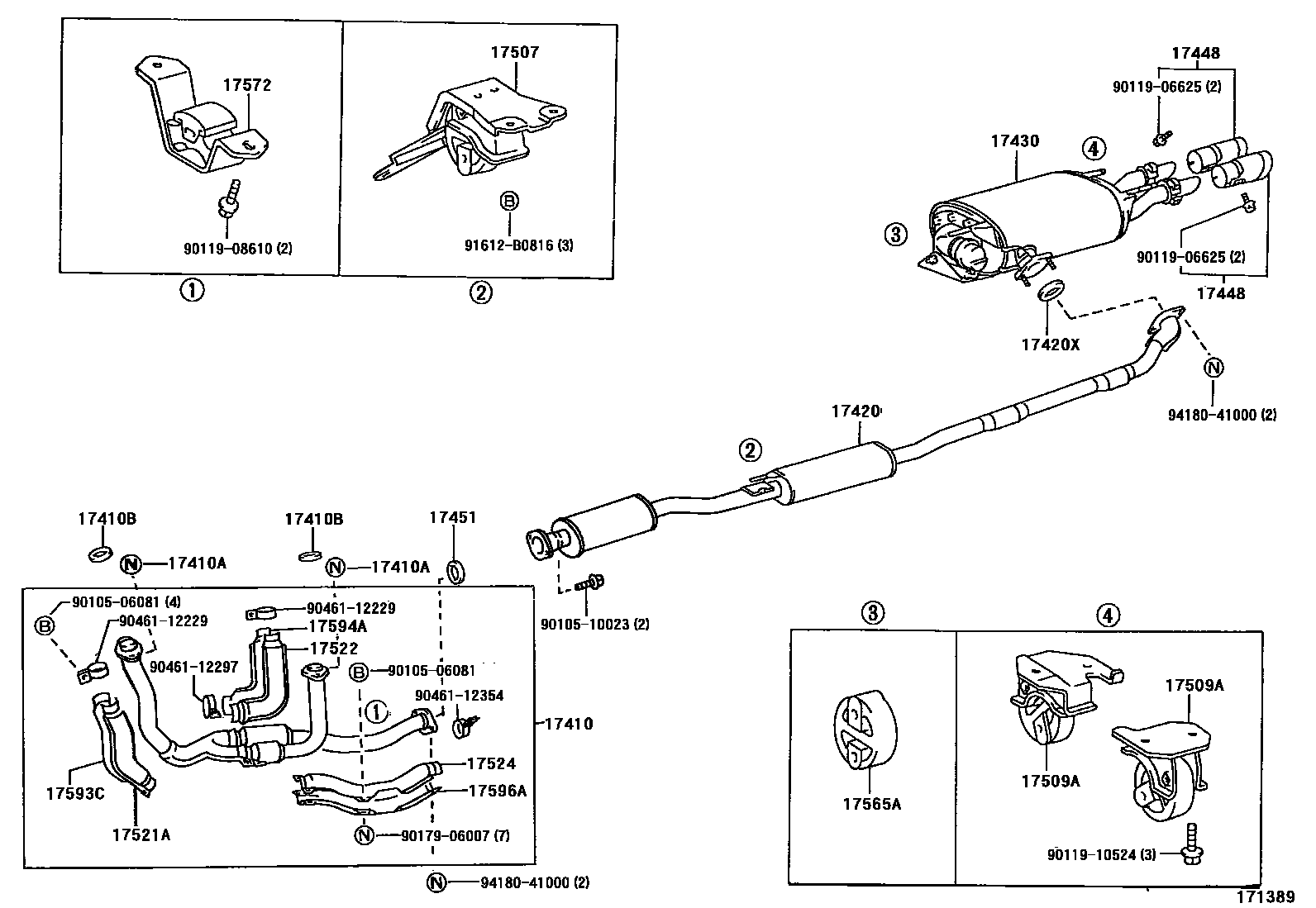

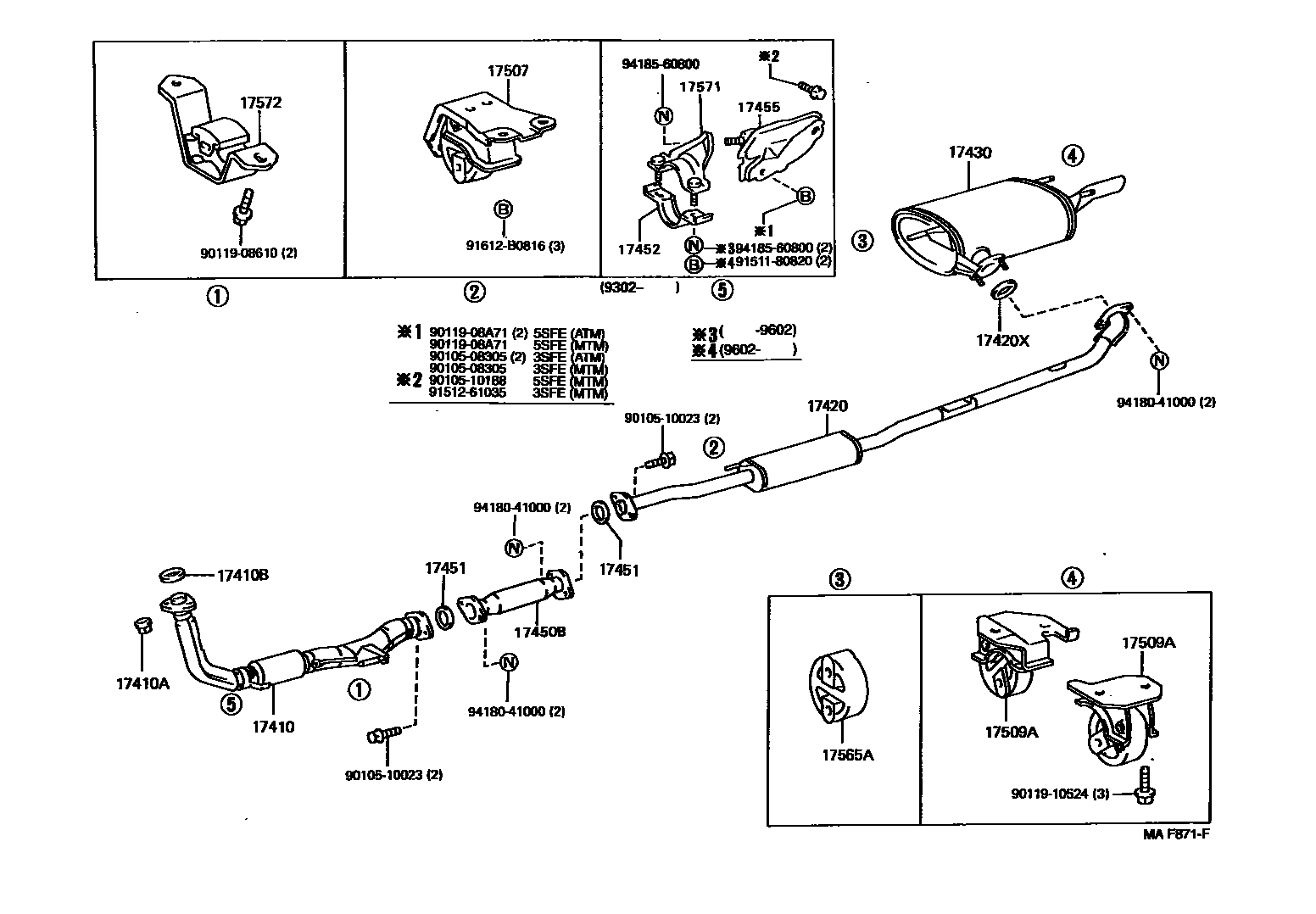

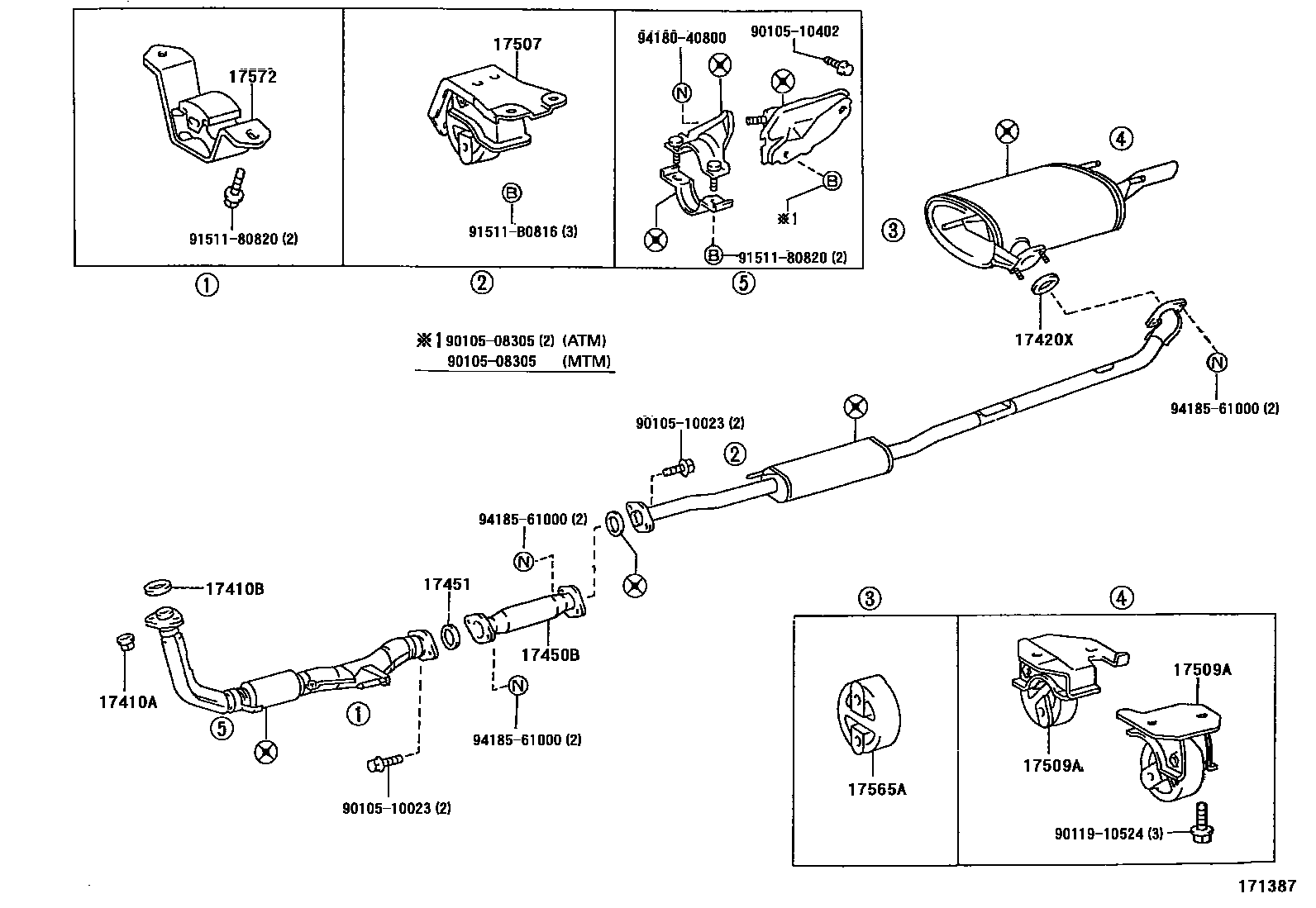

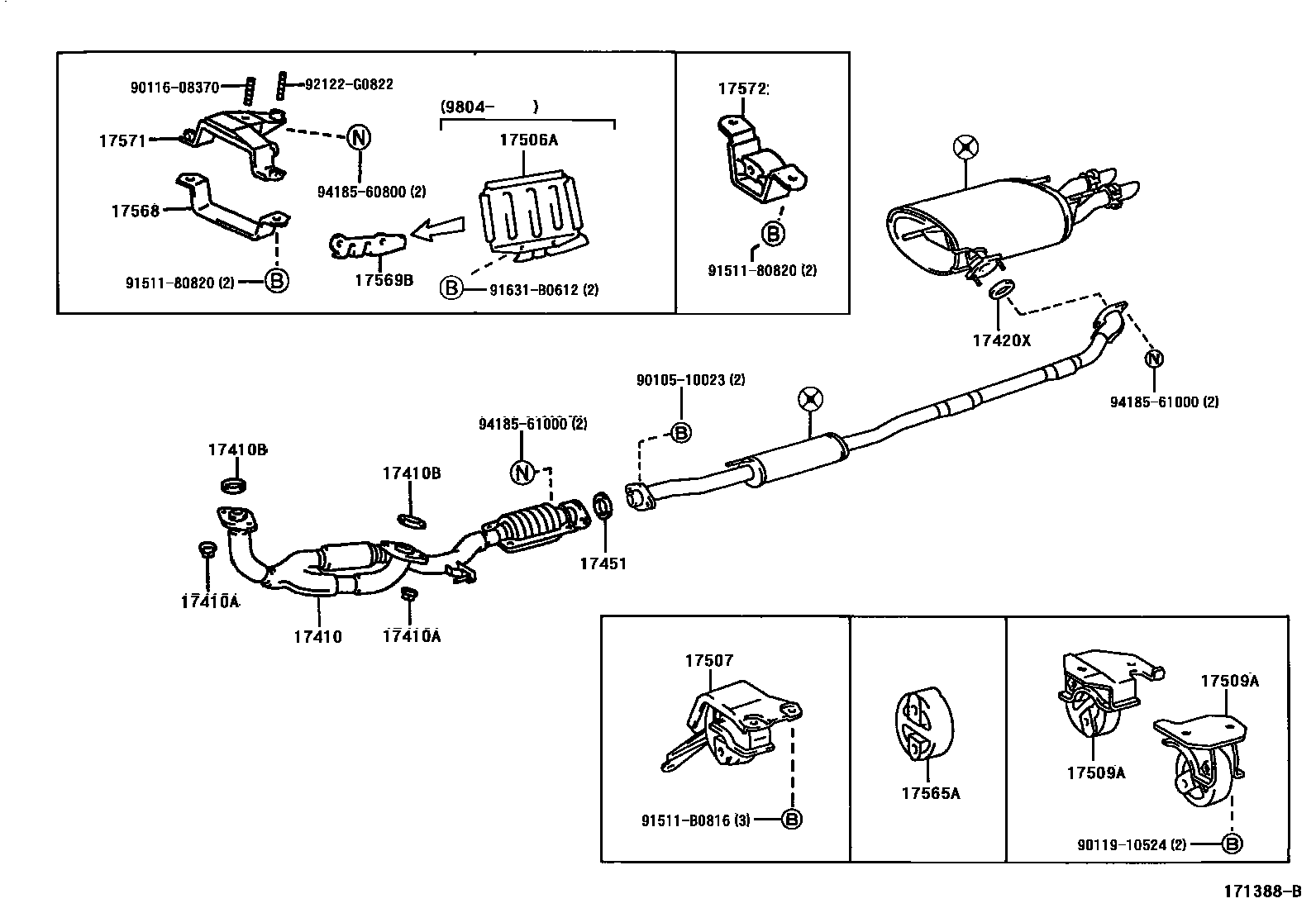

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-20110 · 17410-20111 · 17410-62071 · 17410-62120 · 17410-74860 · 17410-7A170 · 17410-7A171 · 17410-7A360 · 17410-7A380 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06042 · 90917-06045 · 90917-06065 · 90917-06066 |
| 17420 | Central exhaust pipe assembly | 17420-62120 · 17420-74610 · 17420-74800 |
| 17420X | Center exhaust pipe liner | 90917-06046 |
| 17430 | Exhaust tailpipe assembly | 17430-62090 · 17430-62091 · 17430-62160 · 17430-7A140 · 17430-7A141 · 17430-7A470 · 17430-7A590 |
| 17448 | Exhaust pipe tail throat | 17448-79035 · 17448-79036 |
| 17450B | No. 2 front exhaust pipe assembly | 17450-62010 |
| 17451 | Exhaust pipe gasket | 90917-06043 · 90917-06054 |
| 17452 | Exhaust pipe clamp | 17452-74080 |
| 17455 | Exhaust pipe bracket | 17455-74080 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-20060 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-62020 · 17507-62040 · 17507-74090 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17509-62020 · 17509-62030 |
| 17521A | No. 1 upper exhaust pipe protection device | 17521-62050 |
| 17522 | No. 2 upper exhaust pipe protection device | 17522-62060 |
| 17524 | No. 4 upper exhaust pipe protection device | 17524-62030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-74280 |
| 17568 | Exhaust pipe bracket stay | 17568-20080 |
| 17569B | No. 2 exhaust pipe bracket stay | 17569-20040 |
| 17571 | No. 1 exhaust pipe bracket | 17571-20070 · 17571-74370 |
| 17572 | No. 1 exhaust pipe bracket | 17572-20040 · 17572-62020 · 17572-62040 |
| 17593C | No. 1 lower exhaust pipe protection device | 17593-62050 |
| 17594A | No. 2 lower exhaust pipe protection device | 17594-62060 |
| 17596A | No. 4 lower exhaust pipe protection device | 17596-62030 |
