Toyota CAMRY Manifold — Figure 1701

Toyota CAMRY EPC diagram 1701, Manifold, with 4 images and 41 PNC and OE references.

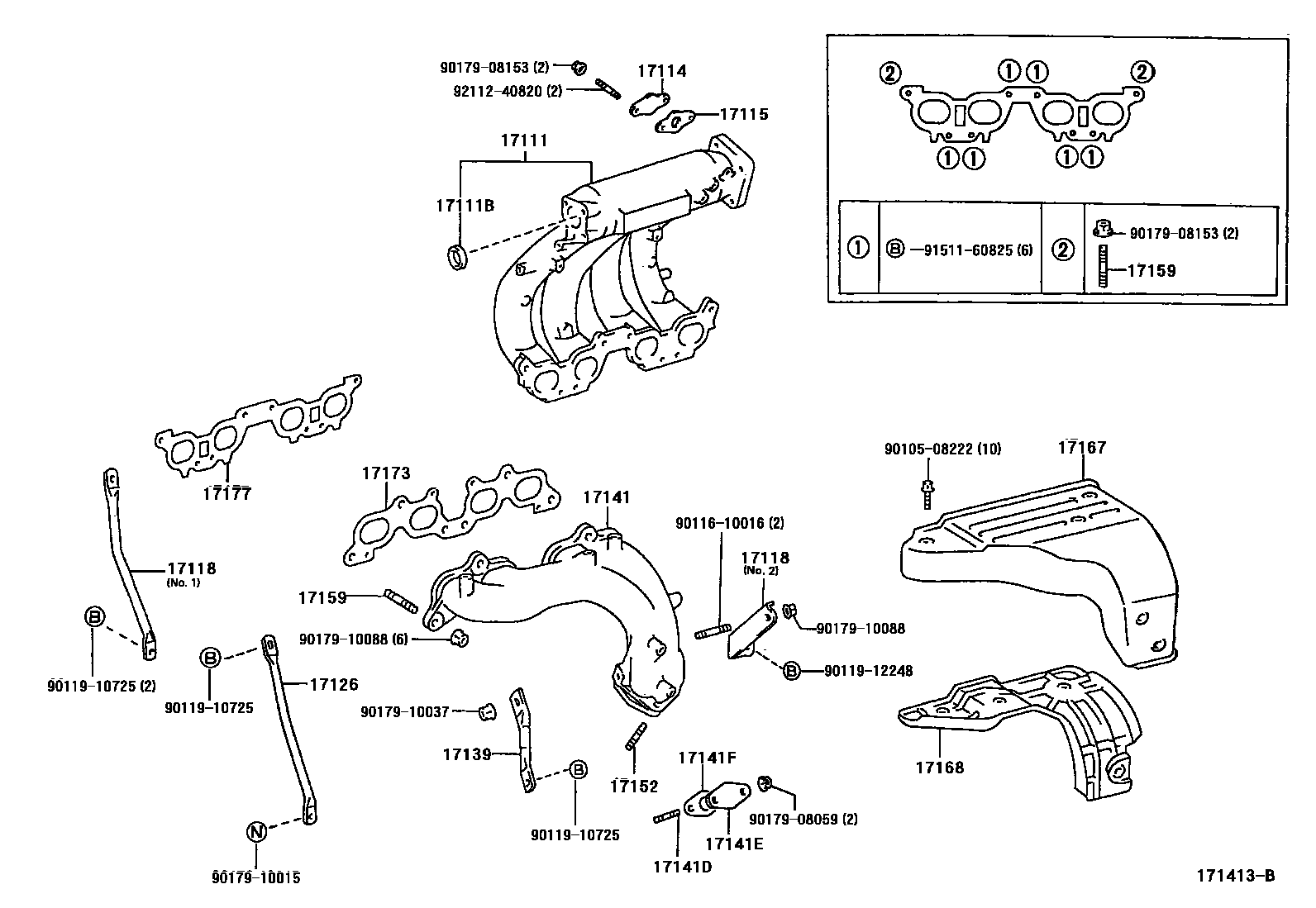

Toyota CAMRY Manifold EPC diagram — 171413B
Manifold — 171413B (199708 – 999999)

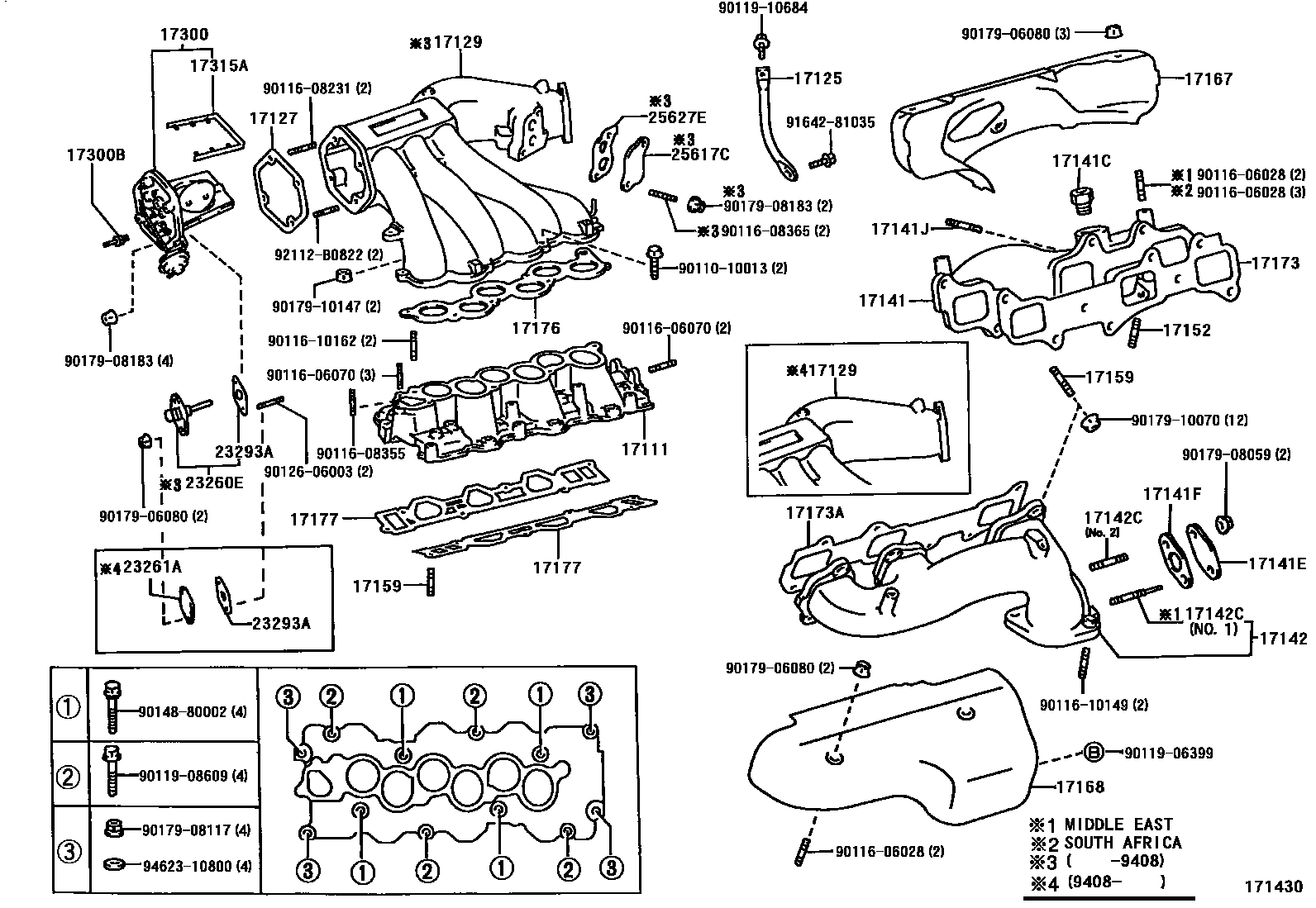

Toyota CAMRY Manifold EPC diagram — 171430
Manifold — 171430 (199208 – 199708)

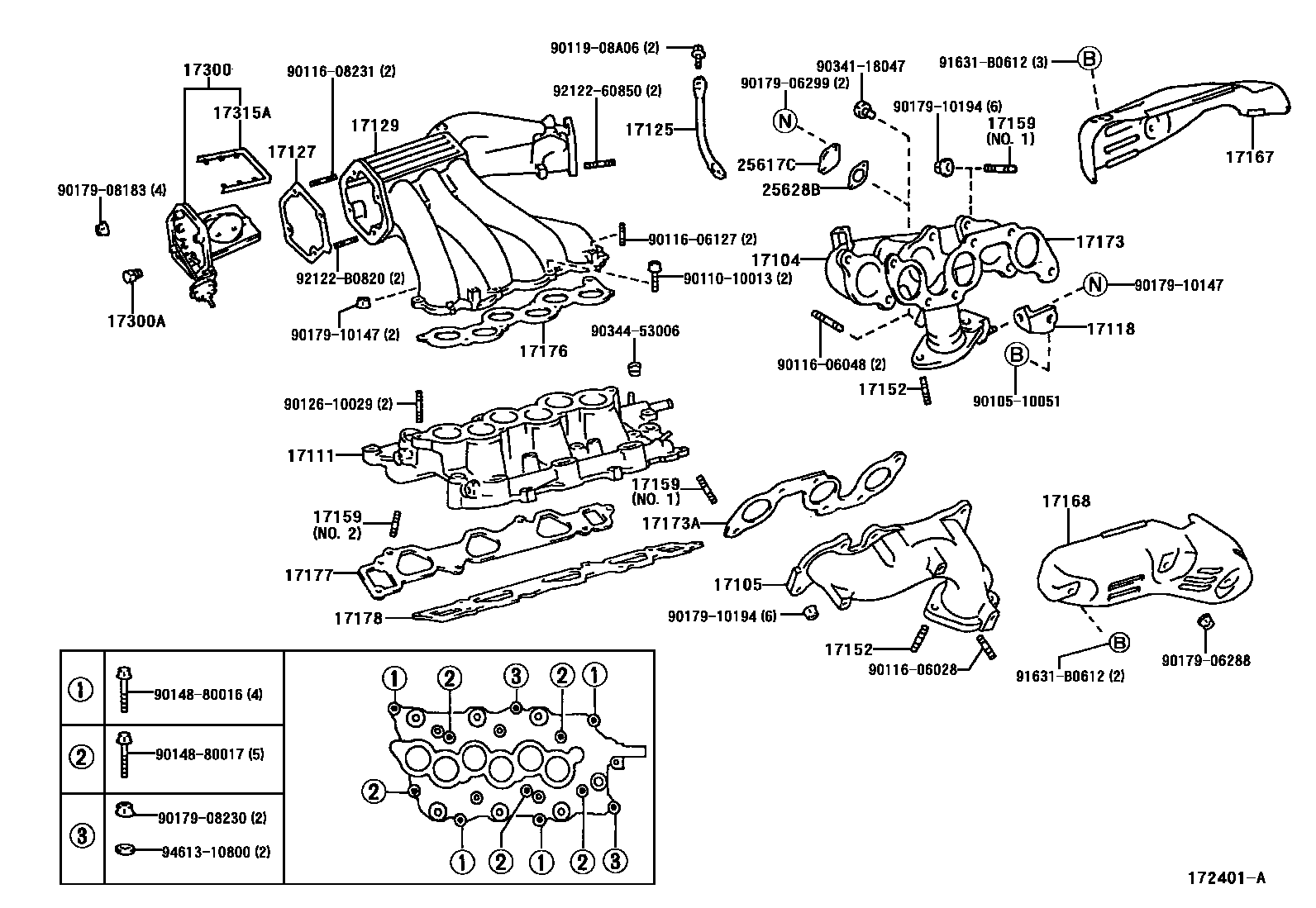

Toyota CAMRY Manifold EPC diagram — 172401A
Manifold — 172401A (199708 – 999999)

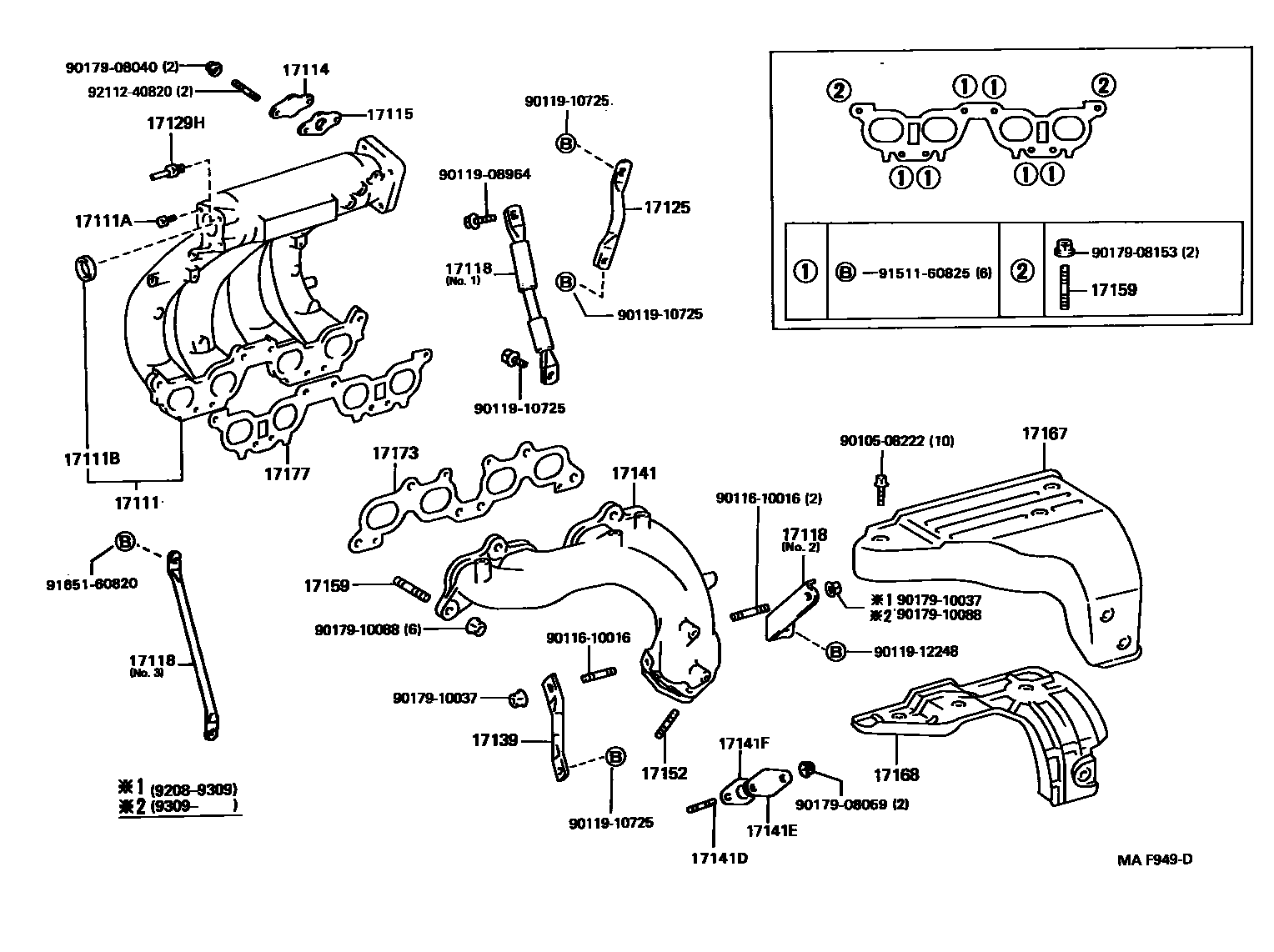

Toyota CAMRY Manifold EPC diagram — MAF949D
Manifold — MAF949D (199208 – 199708)

PNC and OE references

PNCPart nameOE numbers
17104Right exhaust manifold sub-assembly17141-20050
17105Left exhaust manifold sub-assembly17142-20030
17111Intake Manifold17101-20020 · 17101-62010 · 17101-74180 · 17101-74310 · 17101-74311
17111ANo. 1 screw plug90345-51006
17111BNo. 2 screw plug96411-44000
17114Intake manifold hole cover25617-74020
17115Intake manifold hole cover gasket25627-74011
17118Manifold stays17118-20020 · 17118-74180 · 17118-74200 · 17118-74230 · 17118-74290 · 17118-74350
17125No. 1 pressure tank stay17125-20010 · 17125-62020 · 17125-74110
17126No. 2 pressure tank stay17126-74030
17127Pressure tank cover gasket17127-62030
17129Intake pressure tank17109-20060 · 17109-62030 · 17109-62041
17129HConnector No. 490404-51026
17139No. 2 manifold stay17139-74110
17141exhaust manifold17141-62040 · 17141-62050 · 17141-74130
17141CHeaded straight thread plug90341-20009
17141DStuds (for oxygen sensor)90116-08253
17141EExhaust manifold plate17148-41010
17141FGasket (for exhaust manifold plate)89466-20020
17141JStuds (for right exhaust manifold)90126-08007
17142No. 2 exhaust manifold housing17142-62030 · 17142-62040
17142CStuds (for left exhaust manifold)90126-08006 · 90126-08007
17152Studs (for manifold to exhaust)90116-10058 · 90116-10149
17159Studs (for manifold to cylinder head)90116-08251 · 90116-10063 · 90116-10150 · 90116-10169 · 90126-08013 · 92122-60822
17167Exhaust manifold No. 1 heat shield17167-20050 · 17167-62030 · 17167-62031 · 17167-74180
17168Exhaust manifold No.2 insulation pad17168-20020 · 17168-62030 · 17168-74080
17173Gasket (exhaust manifold to cylinder head)17173-20010 · 17173-62040 · 17173-74040
17173ALeft side gasket (exhaust manifold to cylinder head)17173-20010 · 17173-62040
17176Gasket (intake surge tank to intake manifold)17176-62030
17177No. 1 gasket (intake manifold to cylinder head)17177-20010 · 17177-20020 · 17177-62050 · 17177-74070
17178No. 2 gasket (intake manifold to cylinder head)17178-20010 · 17178-20020
17300Intake control valve assembly17300-20020 · 17300-62020 · 17300-62021
17300AHeaded tapered thread plug (for air control valves)90345-51006
17300BConnector (for intake control valve)90404-51072
17315AIntake control valve gasket17315-62020
23260ECold start injector assembly23260-69065
23261AInjector cover23261-62010
23293ACold start injector gasket23293-62030
25617CEGR hole cover plate25617-20010 · 25617-62010
25627EEGR valve gasket25627-62020
25628BEGR air intake gasket25628-20010
