Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 3 images and 3 PNC and OE references.

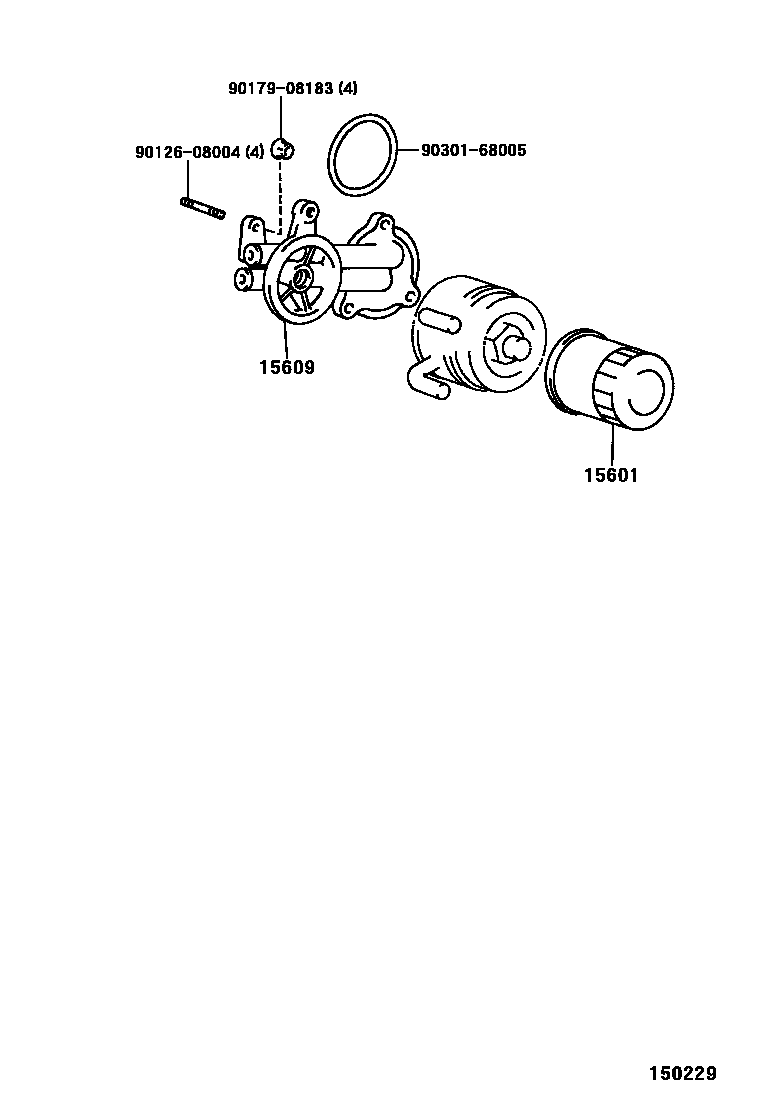

Toyota CAMRY Oil Filter EPC diagram — 150229
Oil Filter — 150229 (199208 – 199708)
Toyota CAMRY Oil Filter EPC diagram — MA6613A
Oil Filter — MA6613A (199208 – 999999)
Toyota CAMRY Oil Filter EPC diagram — MAG653A
Oil Filter — MAG653A (199708 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19002
15601Oil filter sub-assembly90080-91058 · 90915-10001 · 90915-10003 · 90915-20001 · 90915-20003
15609Oil filter bracket sub-assembly15671-62020 · 15671-62030
