Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 4 images and 7 PNC and OE references.

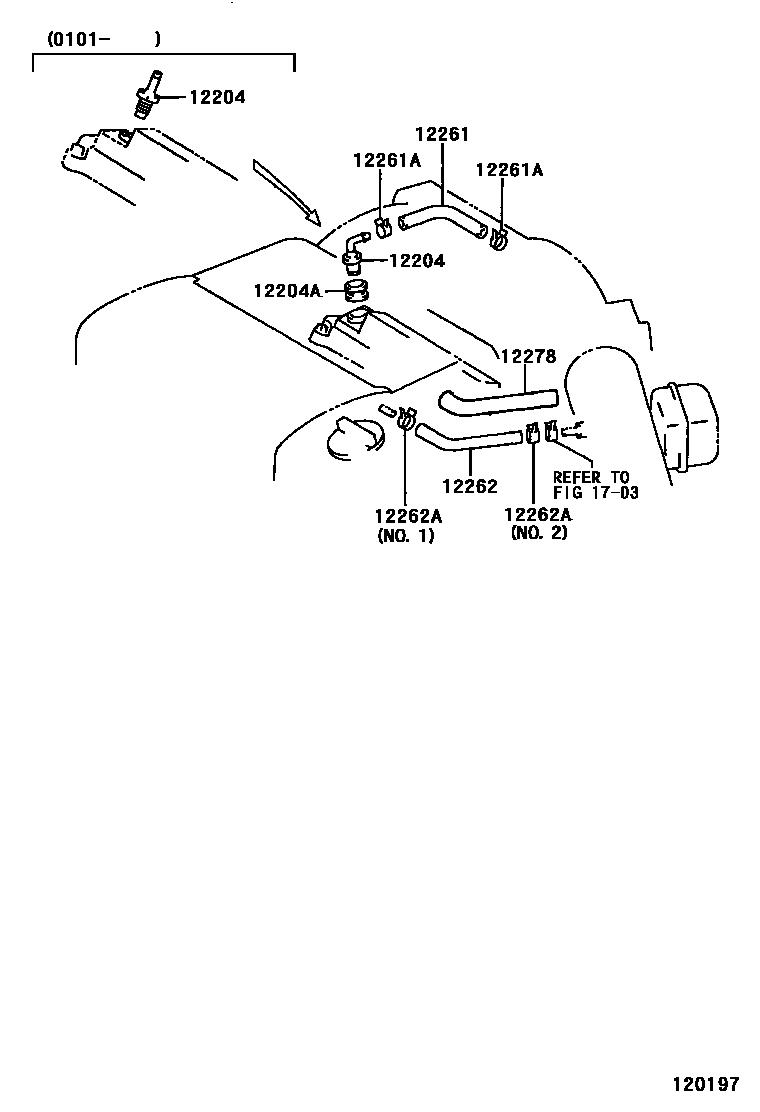

Toyota CAMRY Ventilation Hose EPC diagram — 120197
Ventilation Hose — 120197 (199708 – 999999)
Toyota CAMRY Ventilation Hose EPC diagram — MAE617
Ventilation Hose — MAE617 (199208 – 199708)
Toyota CAMRY Ventilation Hose EPC diagram — MAE664B
Ventilation Hose — MAE664B (199208 – 199708)
Toyota CAMRY Ventilation Hose EPC diagram — MAK604
Ventilation Hose — MAK604 (199708 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-20010 · 12204-20040 · 12204-62010 · 12204-74020 · 12204-74030
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12261-03030 · 12261-20011 · 12261-62030 · 12261-74020 · 12261-74180
12261AClip or clip (for vent hose)90467-14017 · 90467-14043 · 90467-15016 · 90467-15022
12262Ventilation hose No. 212262-20010 · 12262-20020 · 12262-62040 · 12262-74050 · 12262-74100
12262AClamp (for vent hose No. 2)90467-13103 · 90467-14043 · 90467-15016 · 90467-15022 · 90467-17011 · 90467-19022 · 96134-41900
12278Ventilation hose insulation pad12278-20010
