Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 29 PNC and OE references.

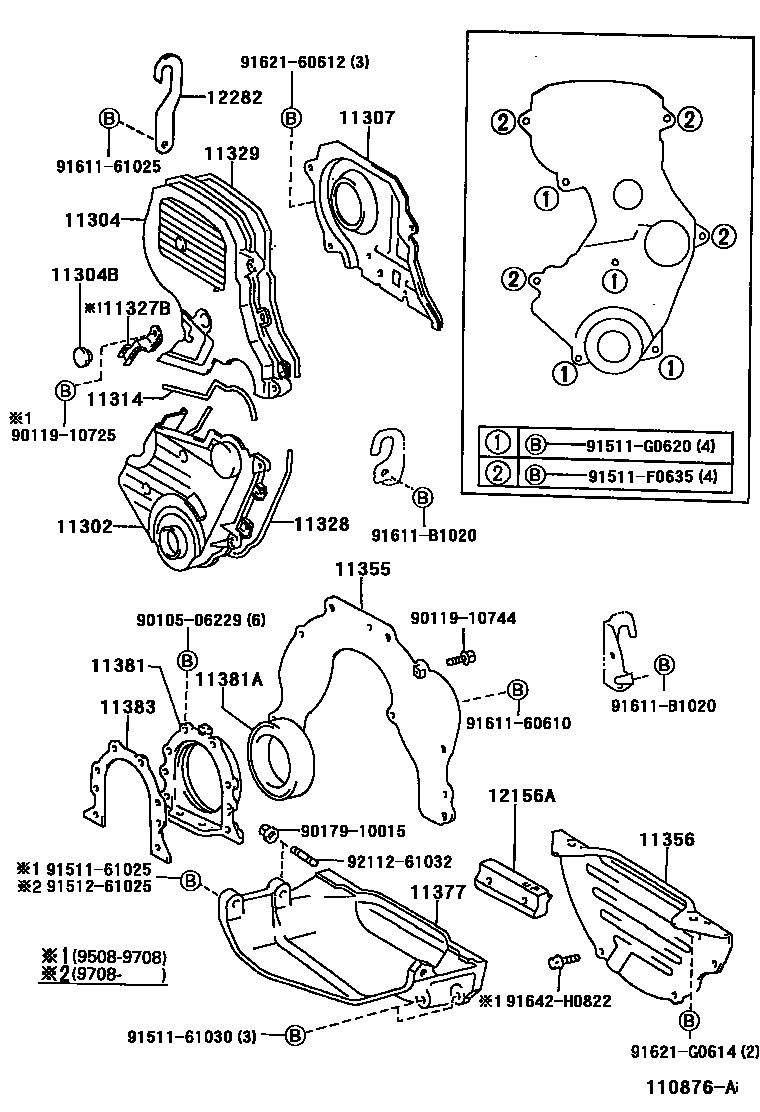

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 110876A
Timing Gear Cover & Rear End Plate — 110876A (199508 – 999999)

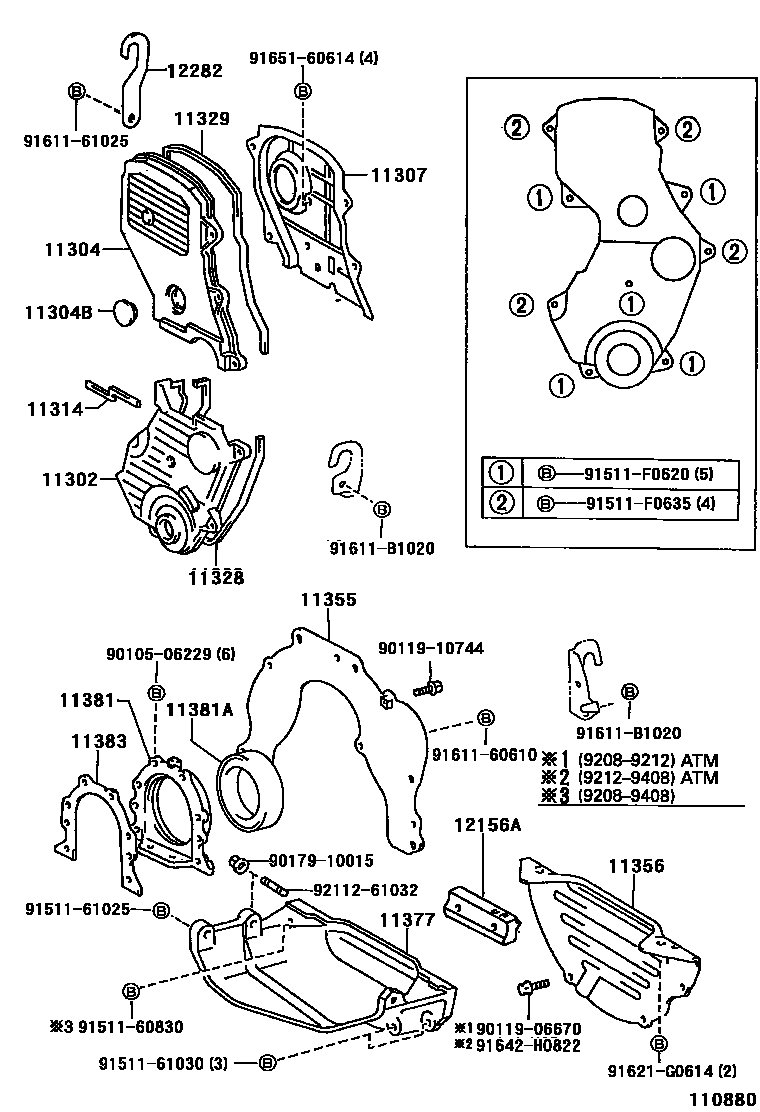

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 110880
Timing Gear Cover & Rear End Plate — 110880 (199208 – 199708)

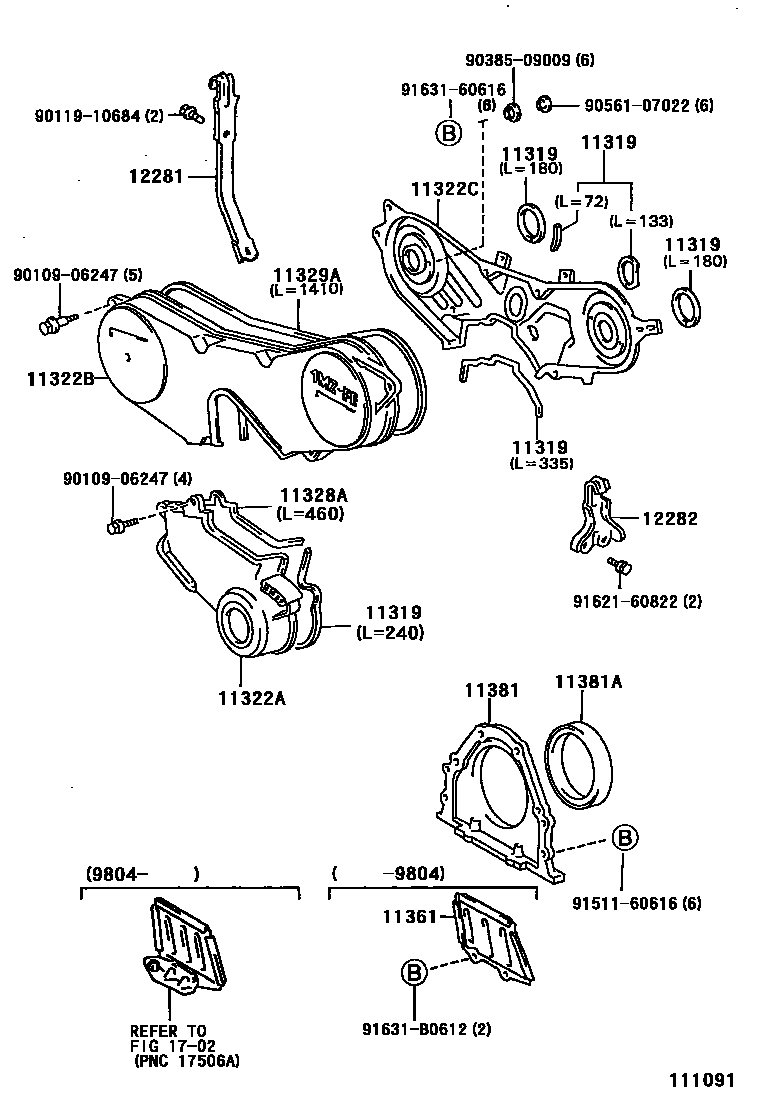

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — 111091
Timing Gear Cover & Rear End Plate — 111091 (199708 – 999999)

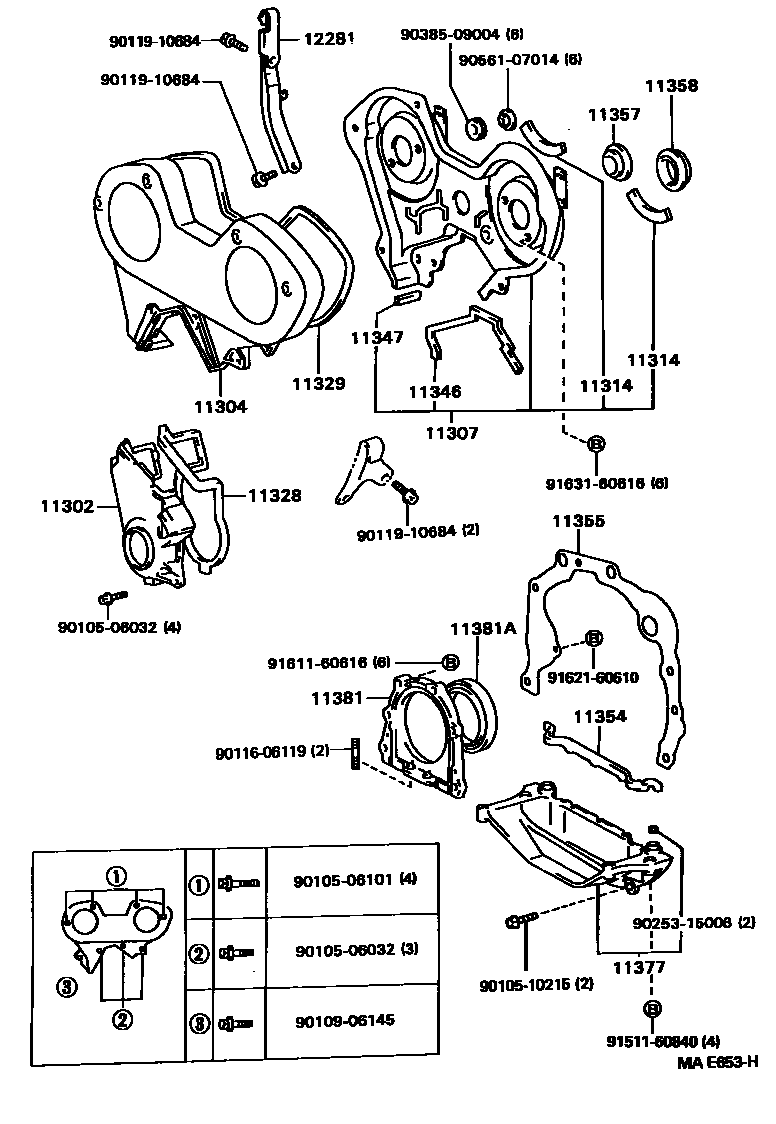

Toyota CAMRY Timing Gear Cover & Rear End Plate EPC diagram — MAE653H
Timing Gear Cover & Rear End Plate — MAE653H (199208 – 199708)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-62020 · 11302-74011 · 11302-74040
11304No. 2 timing chain or timing belt cover11303-62030 · 11303-74030 · 11303-74050
11304BHalf-round plug (for No. 2 timing chain cover)90950-01489
11307No. 3 timing belt cover sub-assembly11304-62030 · 11304-74030 · 11304-74040 · 11304-74060
11314No. 2 timing chain cover gasket11319-03020 · 11319-62020 · 11319-63010 · 11319-74030
11319No. 3 timing belt cover gasket11319-20010
11322ANo. 1 timing belt cover11302-20040 · 11321-20900
11322BNo. 2 timing belt cover11303-20040 · 11322-20030 · 11322-20901
11322CNo. 3 timing belt cover11304-20902 · 11323-20030
11327BTiming belt cover bracket11327-74010
11328GASKET, TIMING GEAR OR CHAIN COVER11328-03020 · 11328-62020 · 11328-74010 · 11328-74060
11328ANo. 1 timing belt cover gasket11328-20020
11329Timing gear rear cover gasket11329-03020 · 11329-62020 · 11329-74050 · 11329-74080
11329ANo. 2 timing belt or chain cover gasket11329-20010
11346No. 4 timing belt cover gasket11346-62020
11347No. 5 timing belt cover gasket11347-62010
11354Flywheel housing dust seal11354-62030
11355rear end plate11355-62010 · 11355-74010
11356No. 2 rear end plate11356-74040
11357No. 6 timing belt cover gasket11357-62010
11358No. 7 timing belt cover gasket11358-62010
11361Flywheel housing bottom cover11361-20010
11377Rear end plate reinforcement11377-62010 · 11377-74030
11381RETAINER, ENGINE REAR OIL SEAL11381-20010 · 11381-62010 · 11381-63012
11381ASEAL, ENGINE REAR OIL90080-31021 · 90311-85006 · 90311-85007 · 90311-85008 · 90311-85009 · 90311-92005 · 90311-92007 · 90311-92008
11383Engine rear oil seal seat gasket11383-74021
12156AOil pan vibration isolation pad12156-74010 · 12156-74011 · 12156-74040
12281Engine No. 1 hanger12281-20030 · 12281-62030
12282ENGINE HANGER, NO.212282-20020 · 12282-74030
