Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

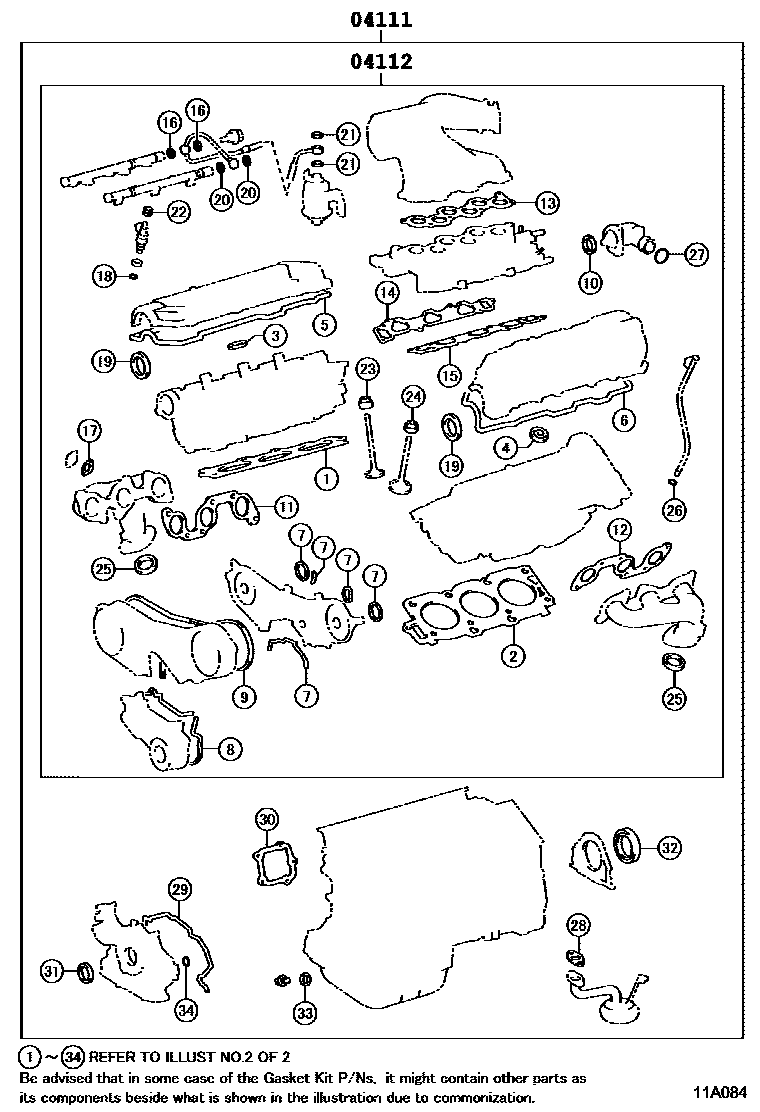

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A084
Engine Overhaul Gasket Kit — 11A084 (199708 – 999999)

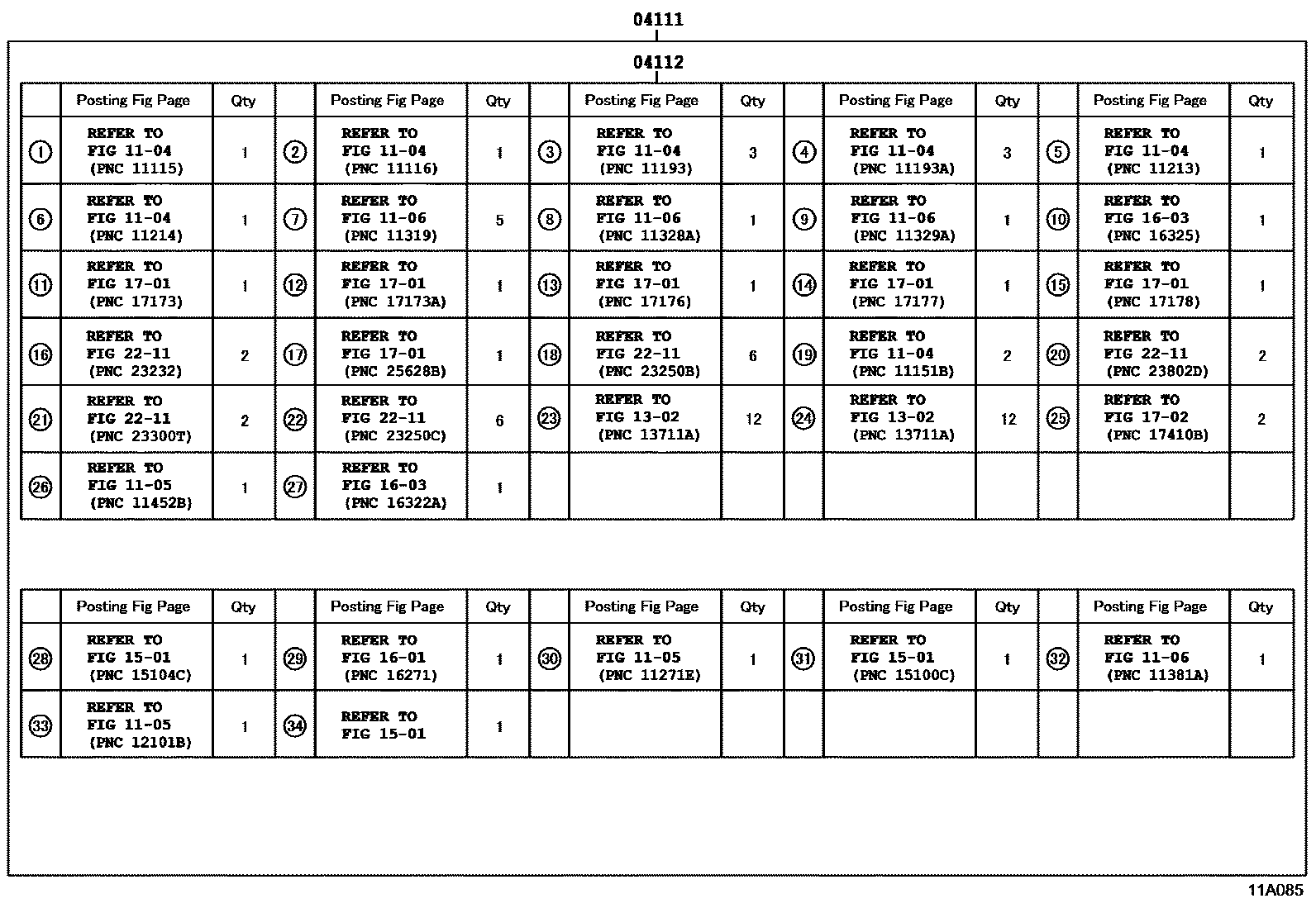

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A085
Engine Overhaul Gasket Kit — 11A085 (199708 – 999999)

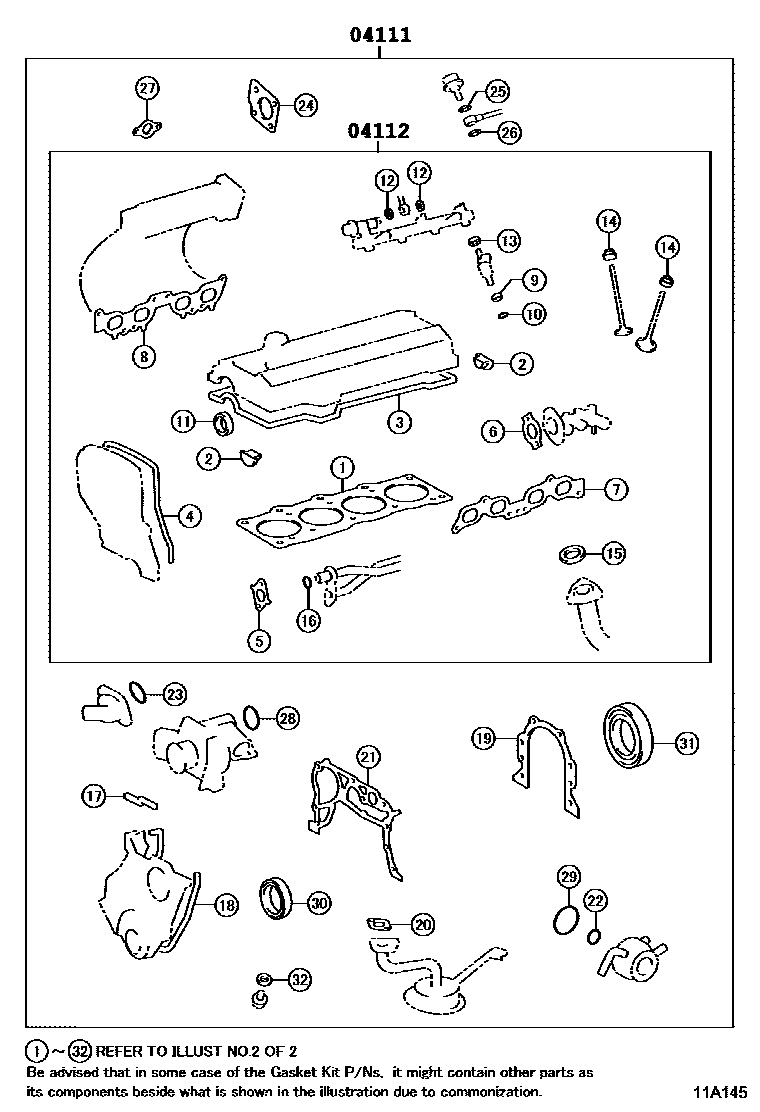

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A145
Engine Overhaul Gasket Kit — 11A145 (199208 – 999999)

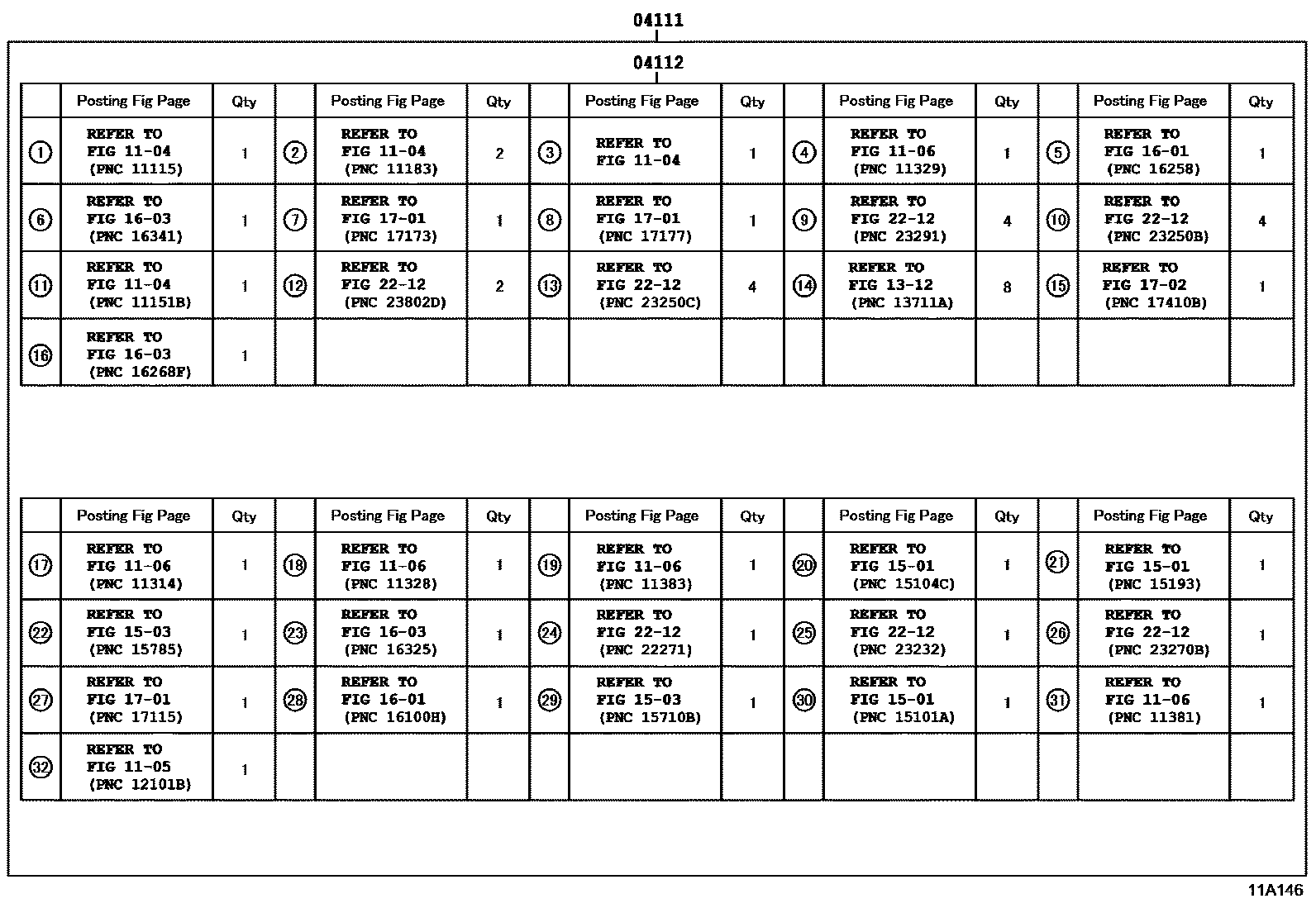

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A146
Engine Overhaul Gasket Kit — 11A146 (199208 – 999999)

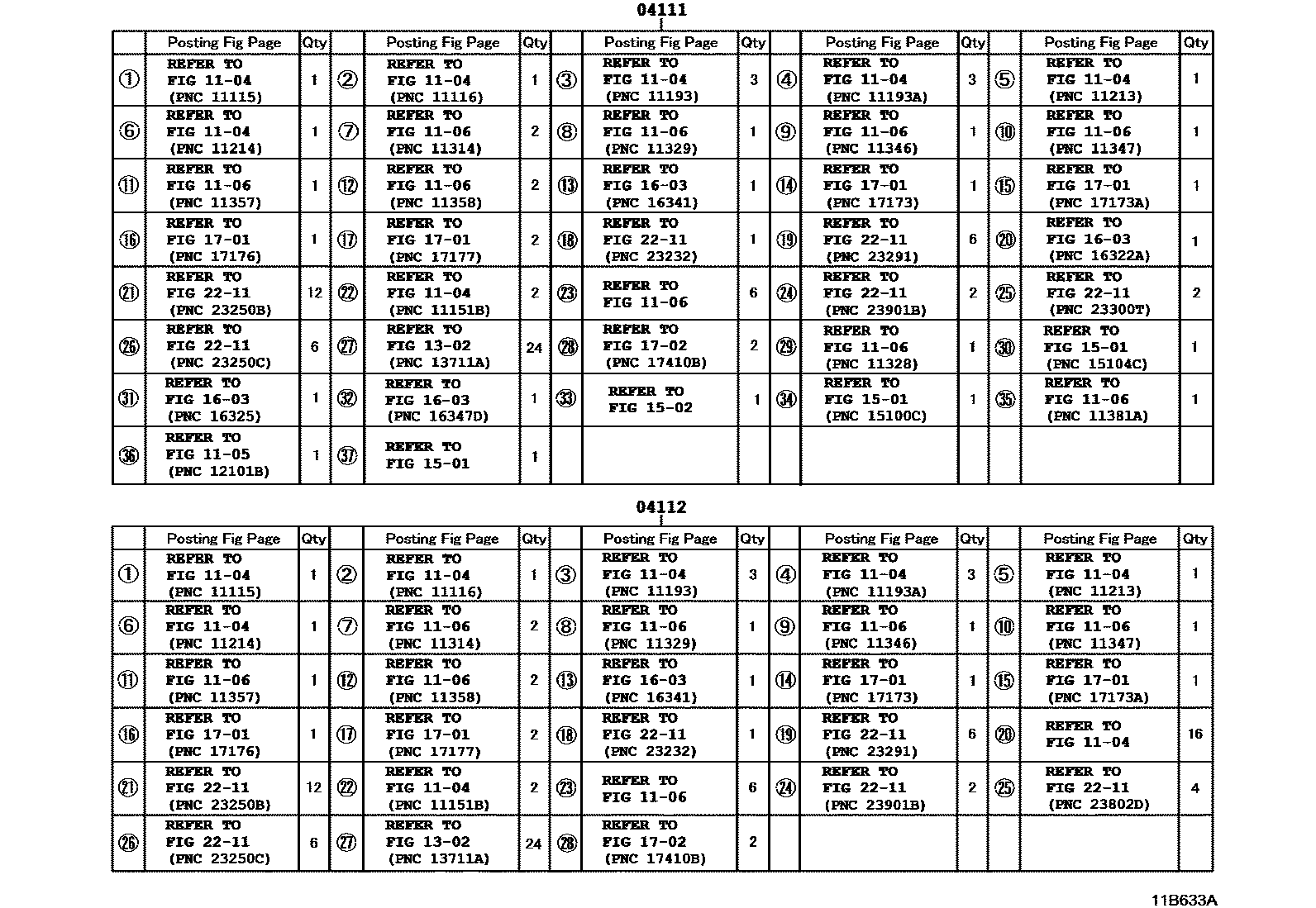

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11B633A
Engine Overhaul Gasket Kit — 11B633A (199208 – 199708)

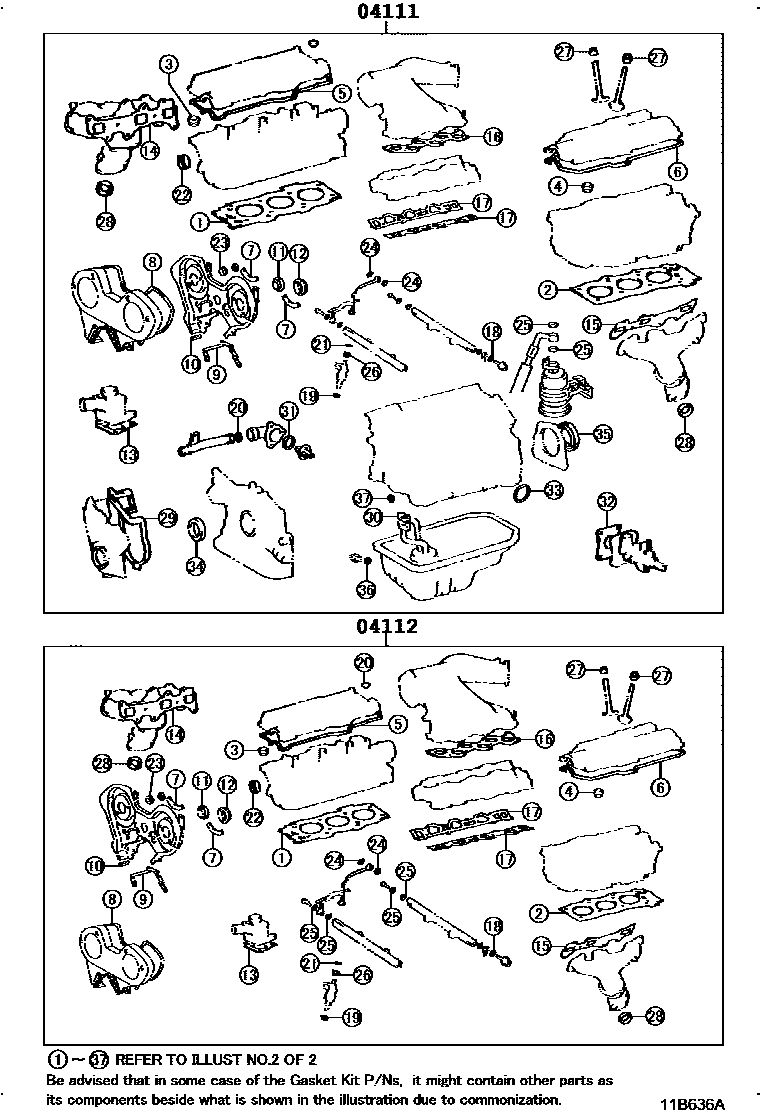

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11B636A
Engine Overhaul Gasket Kit — 11B636A (199208 – 199708)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-20040 · 04111-20041 · 04111-20042 · 04111-62050 · 04111-74300 · 04111-74301 · 04111-74302 · 04111-74450 · 04111-74590 · 04111-74591 · 04111-74592 · 04111-74620 · 04111-74641
04112Engine valve grinding pad assembly04112-20030 · 04112-20031 · 04112-20032 · 04112-62040 · 04112-74290 · 04112-74291 · 04112-74450 · 04112-74451 · 04112-74562 · 04112-74580 · 04112-74581
