Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

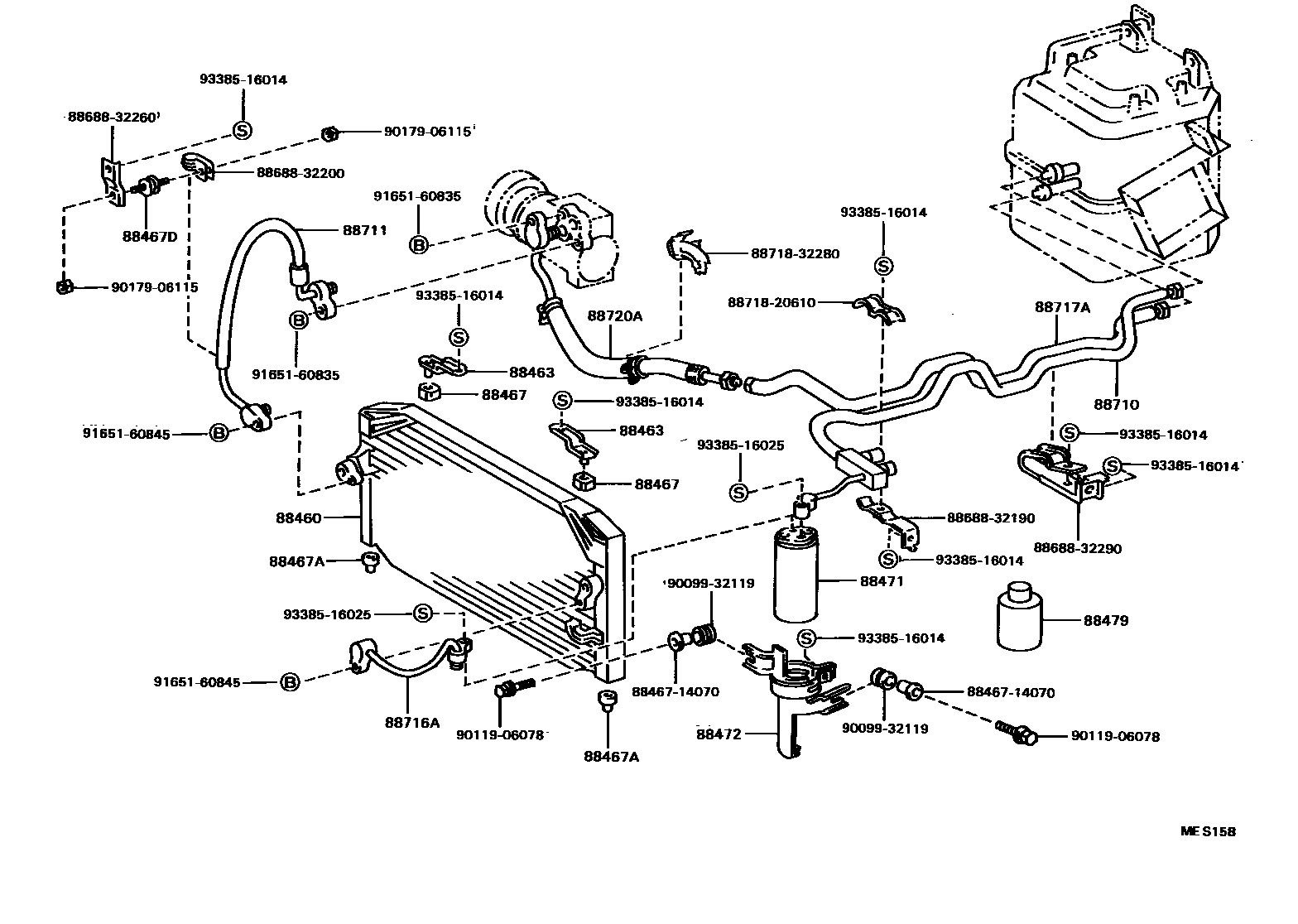

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88460-32070 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-32021 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-32030 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-32020 |
| 88467D | Cooler refrigerant pipe clamp cushion pad | 88467-14040 |
| 88471 | Air conditioning fluid storage tank | 88471-10030 |
| 88472 | No. 1 liquid storage tank bracket | 88473-32020 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02004 |
| 88710 | Air conditioning pipe assembly | 88710-32040 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-32080 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-32230 |
| 88717A | Cooler refrigerant suction pipe A | 88717-32300 |
| 88720A | Air conditioning hoses and accessories | 88720-32050 |
