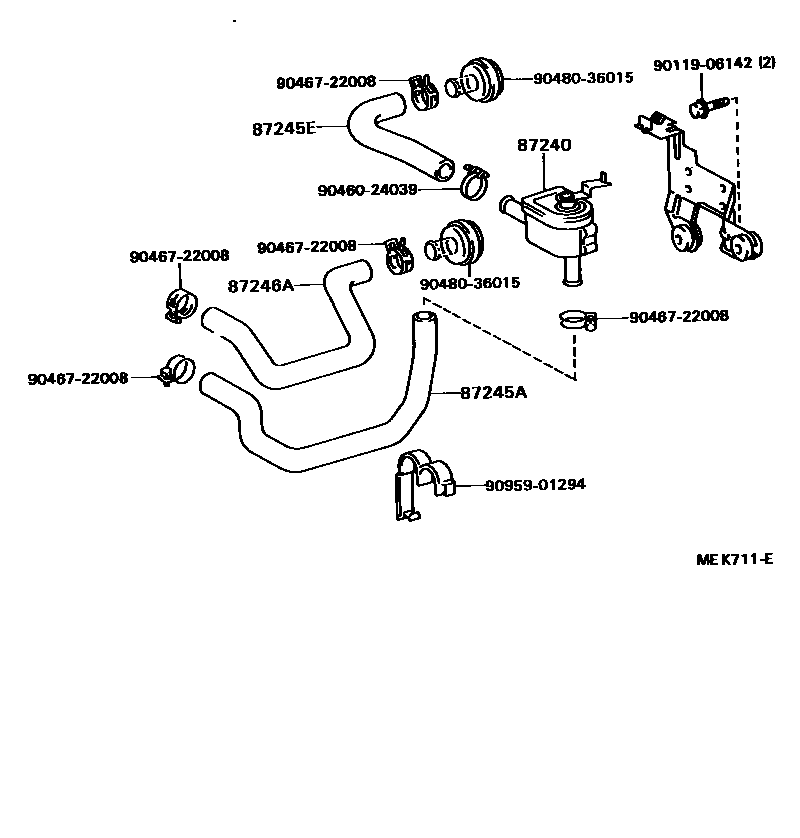

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87240 | Heater water valve assembly | 87240-32040 |
| 87245A | Heater water inlet hose A | 87245-32170 |
| 87245E | Heater water inlet hose E | 87245-32150 |
| 87246A | Heater outlet hose A | 87245-32180 |
