Toyota CAMRY antenna — Figure 8604

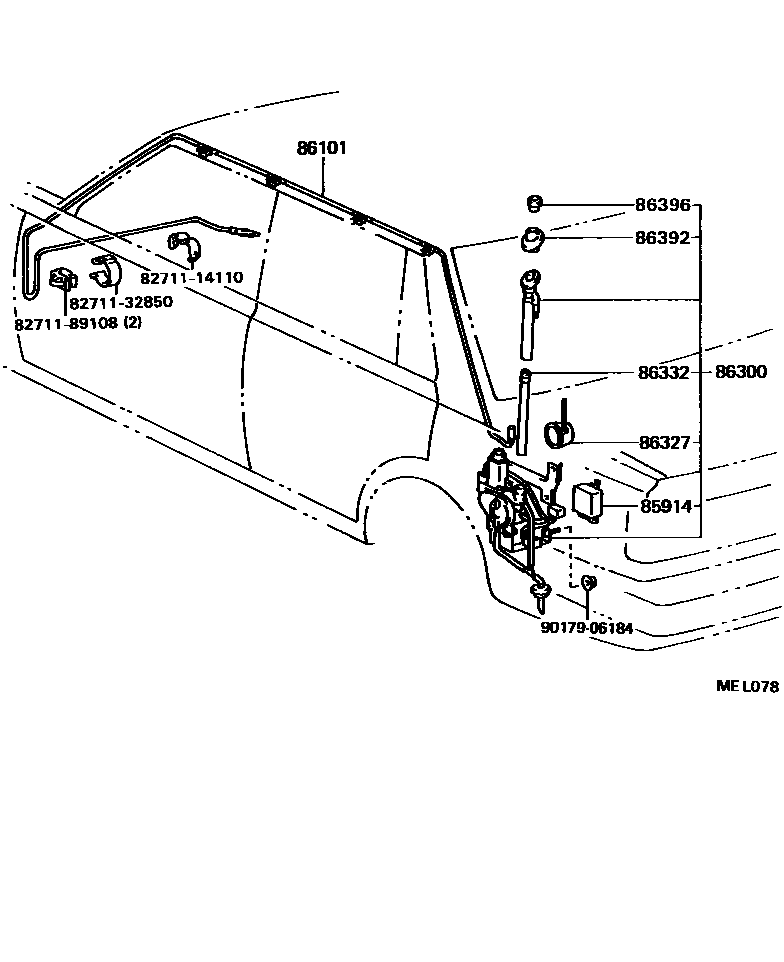

Toyota CAMRY EPC diagram 8604, antenna, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85914 | Electric antenna control relay | 85914-14020 |
| 86101 | Antenna wire sub-assembly | 86101-32020 |
| 86300 | Antenna assembly with fixing parts | 86300-32130 · 86300-32131 |
| 86327 | Cable with antenna drum | 86327-22210 · 86327-22211 |
| 86332 | antenna mast | 86336-14350 |
| 86392 | Antenna decorative parts | 86392-32030 |
| 86396 | Antenna nut | 86396-14041 |
