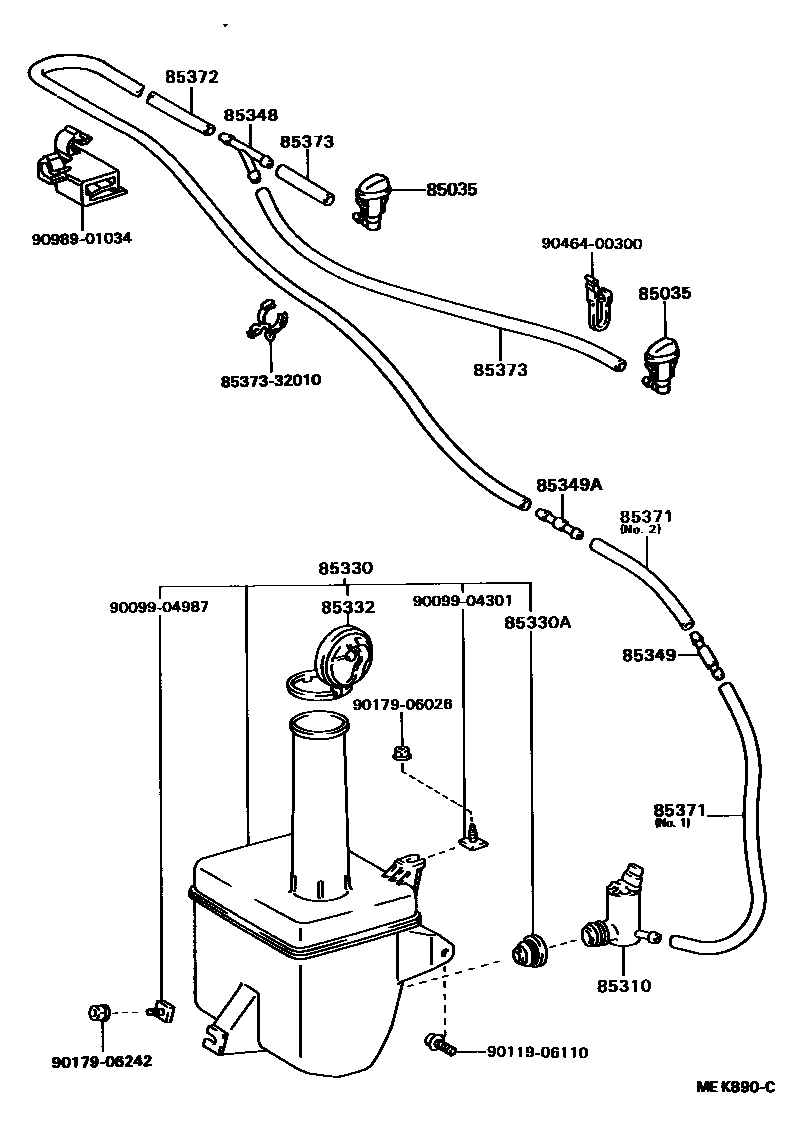

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85310 | Windshield washer motor and pump assembly | 85310-22080 |
| 85330 | Windshield washer fluid tank assembly | 85331-32140 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85332-32161 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 |
| 85349 | Windshield washer hose connector No. 1 | 85349-32150 |
| 85349A | Windshield washer hose connector No. 2 | 85349-89122 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33299 · 90446-06013 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33299 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33299 |
