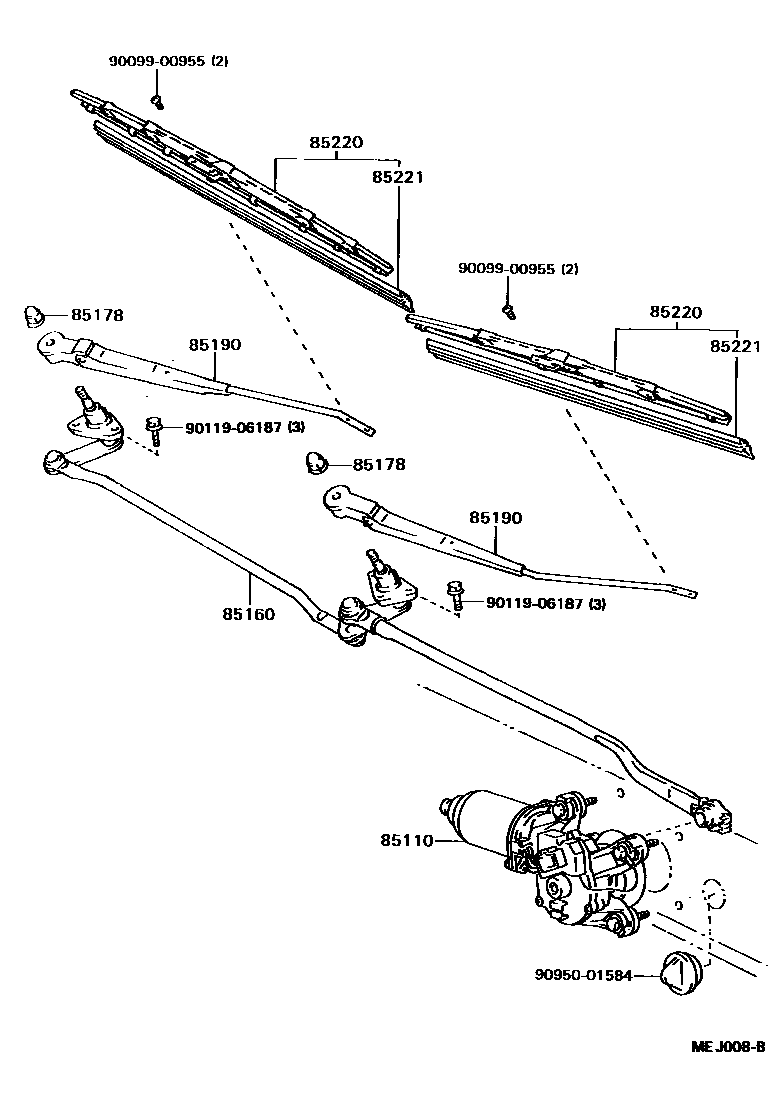

Toyota CAMRY 挡风玻璃刮水器 — Figure 8501
Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-32211 · 85110-32212 |
| 85160 | Windshield wiper connecting rod assembly | 85160-32110 |
| 85178 | Nut (for securing front wiper arm) | 90176-08040 |
| 85190 | Windshield wiper arm assembly | 85190-32260 · 85190-32261 · 85210-32190 · 85210-32191 |
| 85220 | Windshield wiper blade assembly | 85220-16230 · 85220-16321 · 85220-32590 · 85220-32591 |
| 85221 | Windshield wiper blade | 85221-30100 · 85221-32050 |
