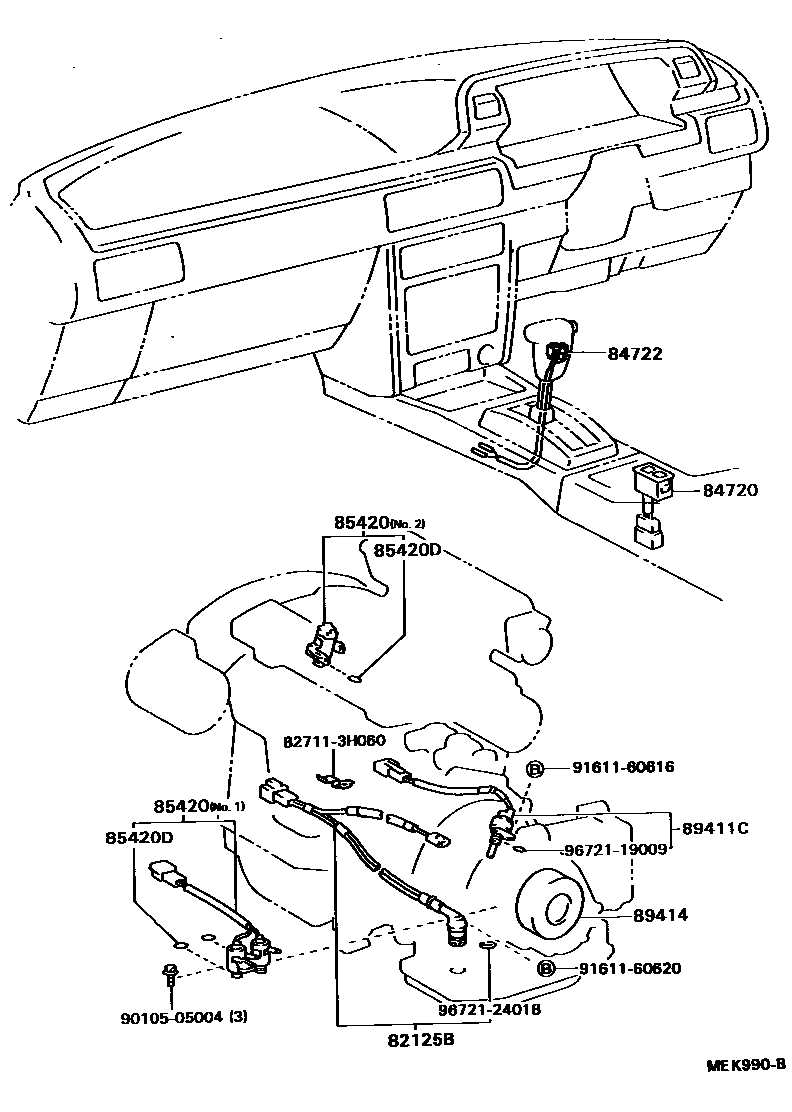

Toyota CAMRY 超速档和电子控制变速器 — Figure 8410
Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125B | Transmission wiring harness | 82125-32030 |
| 85420 | Transmission solenoid valve assembly | 85420-32101 · 85420-32103 · 85420-32120 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 |
| 89411C | Speed sensor | 89411-32020 |
| 89414 | sensor rotor | 89414-32020 · 89414-33010 |
