Toyota CAMRY 电子燃油喷射系统 — Figure 8404

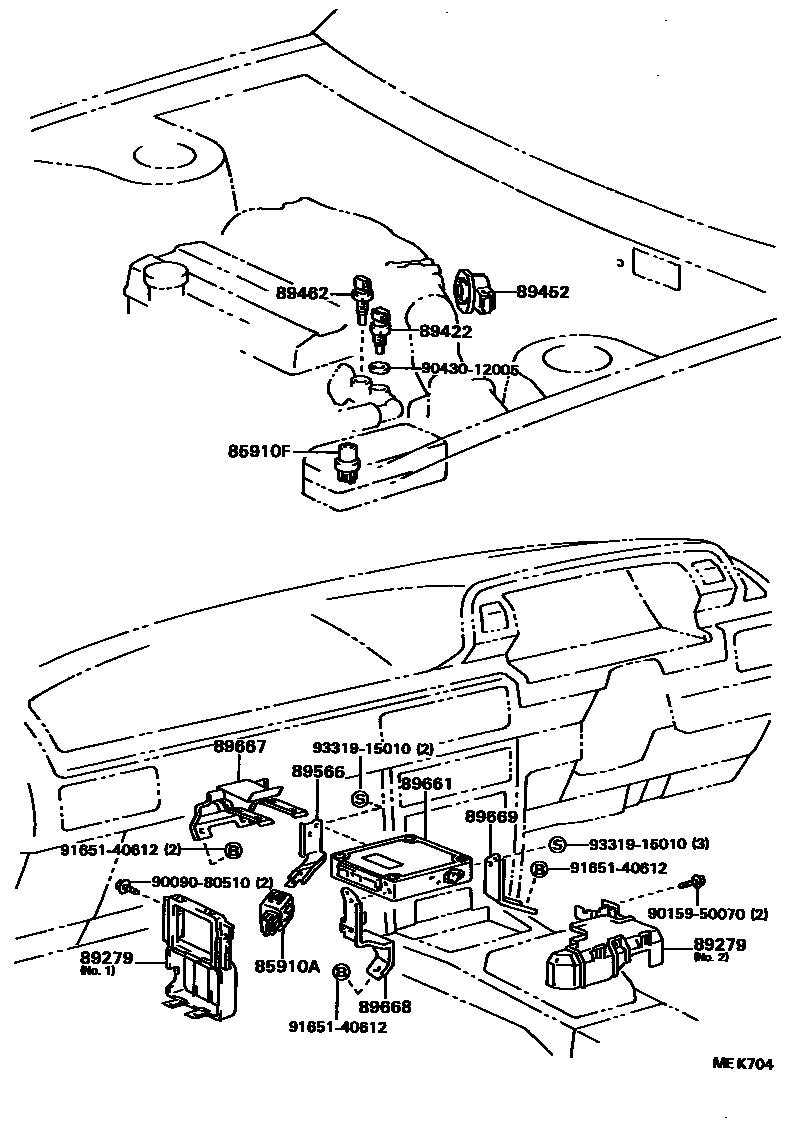

Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-30050 |
| 85910F | ECU relay (for EFI) | 90987-02004 |
| 89279 | Engine control ECU cover | 89279-32080 · 89279-32090 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-20010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-12040 · 89452-14050 · 89452-28030 |
| 89462 | Start injector timing switch | 89462-20020 |
| 89566 | Fuel injection ECU bracket | 89566-32030 |
| 89661 | Engine control ECU | 89661-32260 · 89661-32261 · 89661-32540 · 89661-32620 · 89661-32621 |
| 89667 | Engine control ECU bracket | 89667-32020 |
| 89668 | No. 2 engine control ECU bracket | 89668-32010 |
| 89669 | No. 3 engine control ECU bracket | 89669-32030 |
