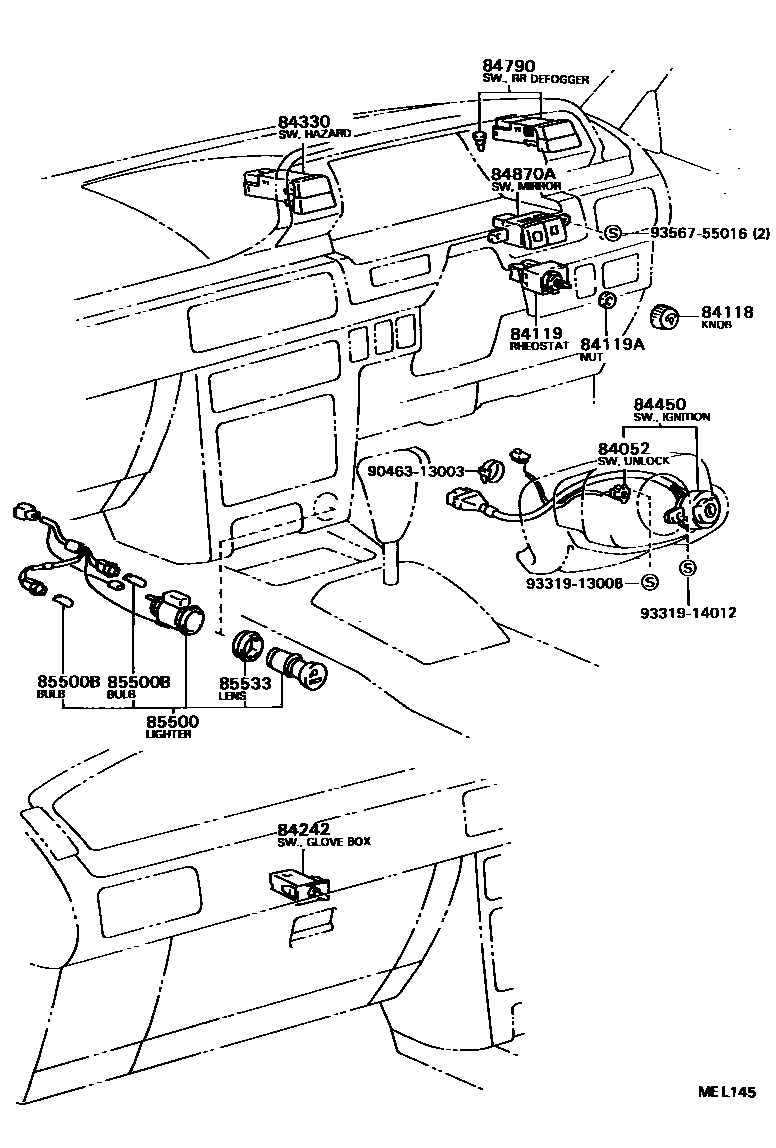

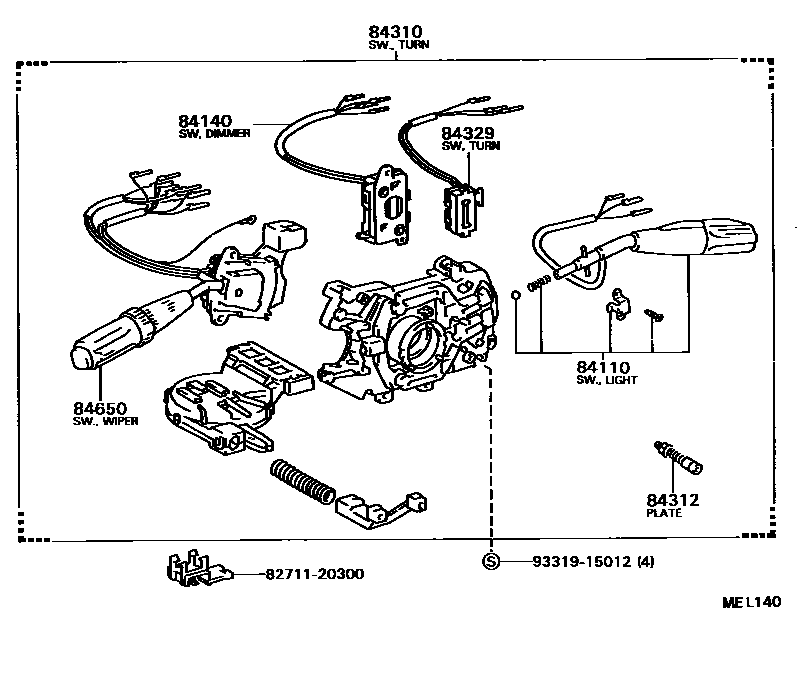

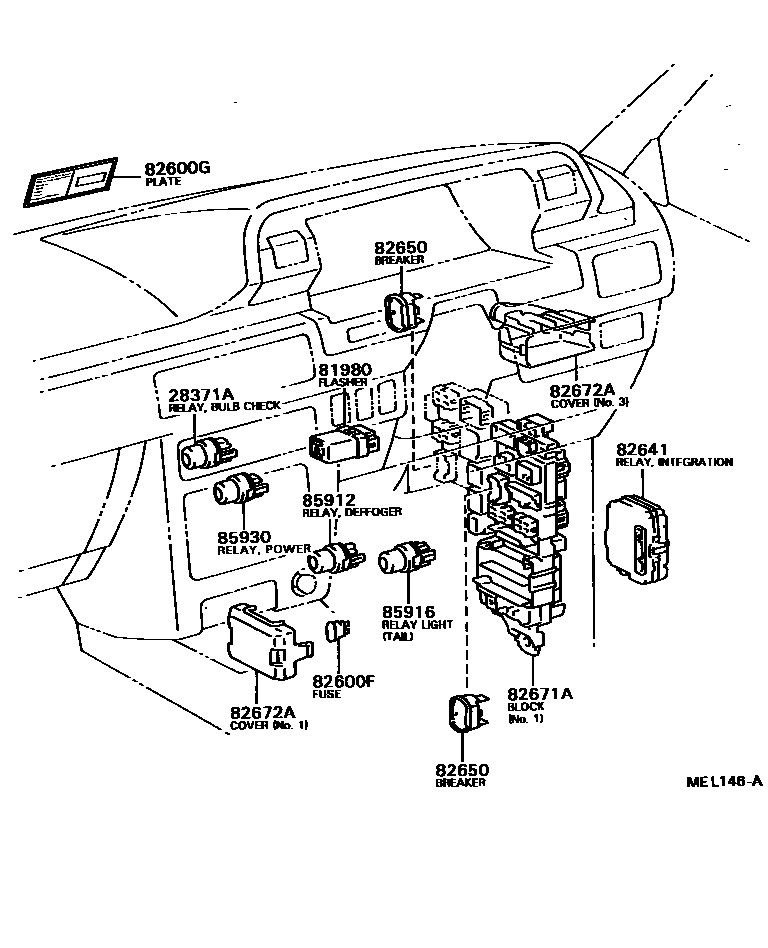

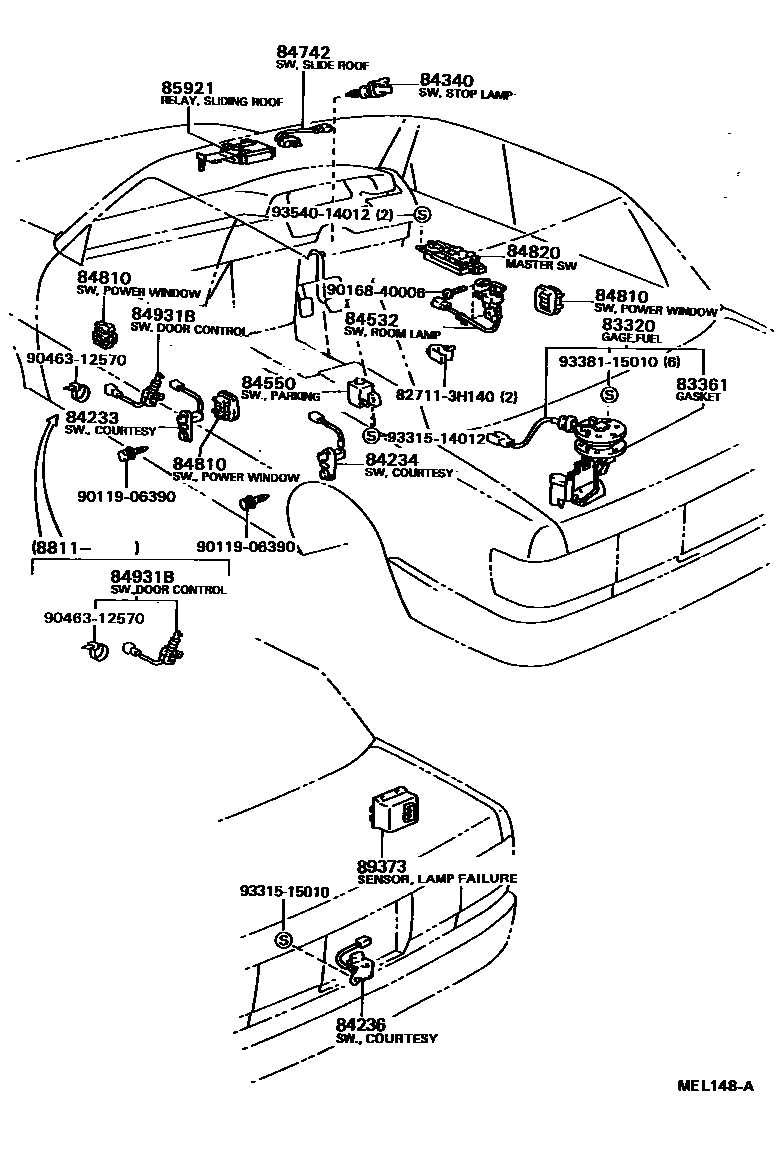

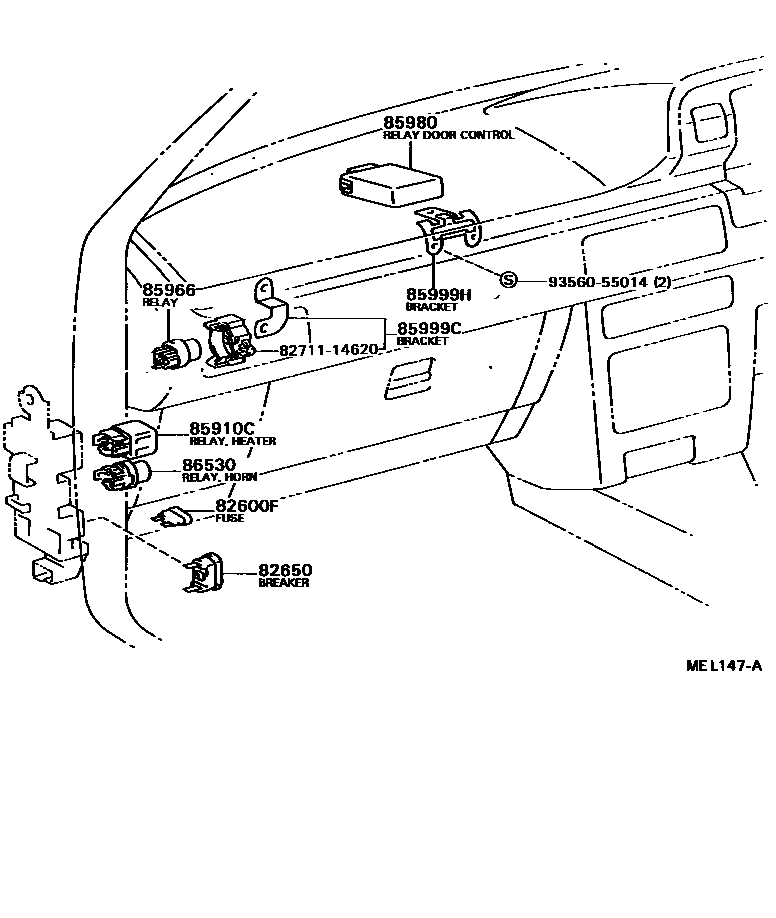

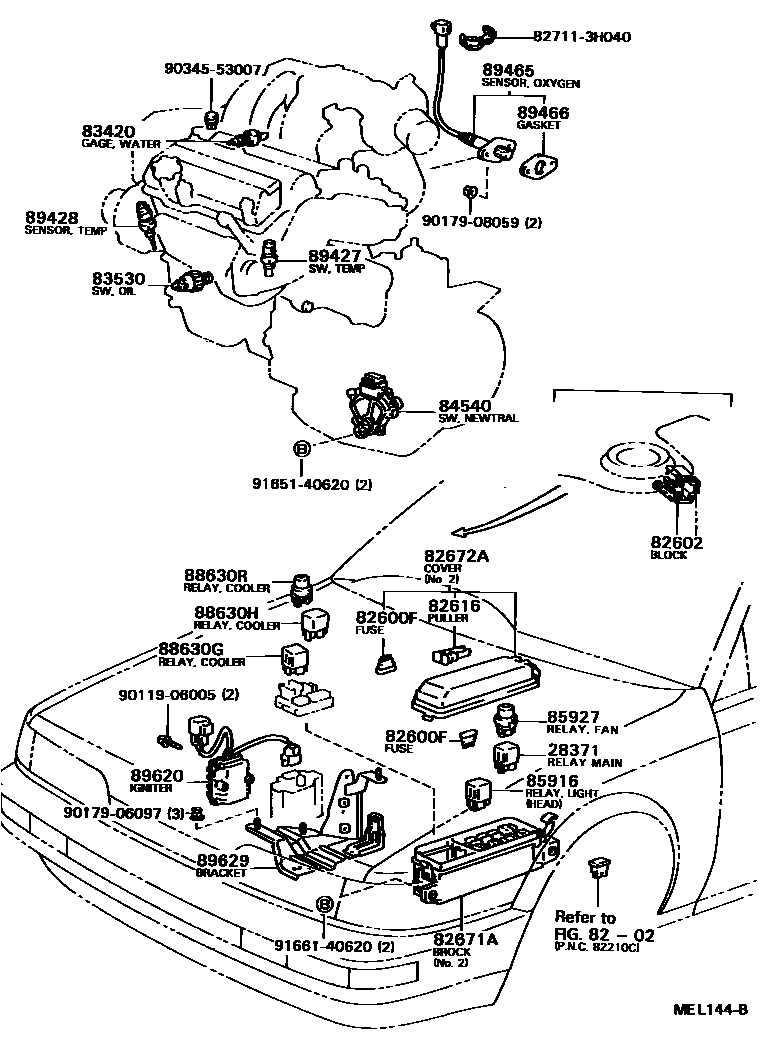

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 6 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28371 | No. 1 ignition relay | 85925-17010 · 90987-04002 |
| 28371A | Bulb check relay | 90987-02004 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 |
| 82600F | Spare fuse | 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82600G | Warning nameplate (for fuses) | 82685-32010 · 82685-32011 |
| 82602 | Relay box sub-assembly | 82602-32080 |
| 82616 | fuse puller | 82616-12020 |
| 82641 | Integrated relay No. 1 | 82641-32020 · 82641-32021 |
| 82650 | No. 1 circuit breaker assembly | 82650-20011 · 82650-20020 |
| 82671A | junction box | 82671-14010 · 82671-32030 |
| 82672A | Junction box cover | 82672-32040 · 82672-32150 · 82672-32190 · 82672-32200 · 82672-32350 |
| 83320 | Fuel gauge sensor assembly | 83320-39765 · 83320-39795 |
| 83361 | fuel gauge sensor gasket | 83361-32020 |
| 83420 | Water temperature sensor assembly | 83420-20020 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-30080 |
| 84052 | Unlock warning switch assembly | 84052-10020 |
| 84110 | No. 1 light control switch assembly | 84112-80005 · 84112-80007 |
| 84118 | Light control rheostat button | 84118-20011 |
| 84119 | Light control rheostat | 84119-20082 · 84119-32080 |
| 84119A | Rheostat control retaining bolt or nut | 90170-09167 |
| 84140 | Headlight dimmer switch assembly | 84140-12210 · 84140-12220 |
| 84233 | Door control light switch assembly (for front door) | 84231-32020 · 84231-32070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-12070 · 84231-24010 |
| 84236 | Door control light switch assembly (for trunk) | 84231-20110 |
| 84242 | Glove box light switch | 84242-20030 |
| 84310 | Turn signal switch assembly | 84310-32640 · 84310-32730 |
| 84312 | Speaker contact piece | 84312-12040 · 84312-12050 |
| 84329 | turn signal switch | 84329-12010 |
| 84330 | Hazard warning signal switch assembly | 84332-32060 · 84332-32140 |
| 84340 | brake light switch assembly | 84340-22100 · 84340-32030 |
| 84450 | Ignition or starter switch assembly | 84450-32040 |
| 84532 | Interior light fixture switch | 84532-32040 |
| 84540 | Neutral start switch assembly | 84540-32090 |
| 84550 | Parking brake switch assembly | 84550-12060 |
| 84650 | Windshield wiper switch assembly | 84652-32590 · 84652-32600 · 84652-32650 · 84652-32660 |
| 84742 | Sliding sunroof limit switch | 84742-32010 |
| 84790 | Rear window defogger switch assembly | 84790-32120 |
| 84810 | Electric window lift switch assembly | 84810-32070 |
| 84820 | Electric window lift main switch assembly | 84820-32140 |
| 84931B | door control switch | 84931-32040 · 84931-39015 |
| 85500 | Cigarette lighter assembly | 85500-32051 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-32010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90987-02002 · 90987-02004 |
| 85916 | Light control relay | 90987-02002 · 90987-02004 · 90987-02006 |
| 85921 | Sliding sunroof control relay | 85921-32010 |
| 85927 | cooling fan relay | 90987-03001 |
| 85930 | Electric window relay assembly | 90987-02002 · 90987-02004 |
| 85966 | Turn indicator light control relay | 90987-02004 |
| 85980 | Door control relay assembly | 85980-32070 |
| 85999C | No. 3 relay bracket | 85999-32120 |
| 85999H | Relay bracket | 85999-32030 |
| 86530 | Speaker relay assembly | 90987-02002 · 90987-02004 |
| 88630G | Cooler relay assembly | 85926-30020 |
| 88630H | Cooler relay assembly | 88630-32010 |
| 88630R | No. 3 cooler relay assembly | 90987-02004 |
| 89373 | Malfunction indicator light sensor | 89373-32170 · 89373-32200 |
| 89427 | Temperature detection switch | 89429-32020 |
| 89428 | No. 2 temperature detection switch | 89428-20060 |
| 89465 | oxygen sensor | 89465-29285 |
| 89466 | Oxygen sensor pad | 89466-20020 · 89466-30010 |
| 89620 | Ignition assembly | 89620-32110 |
| 89629 | Ignition bracket assembly | 89629-32070 · 89629-32071 |
