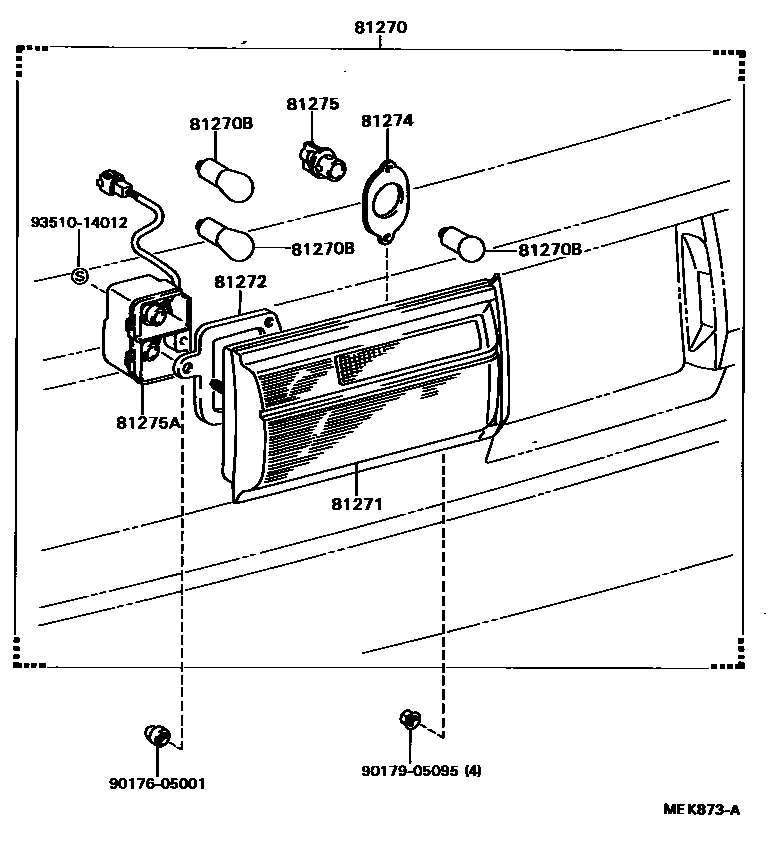

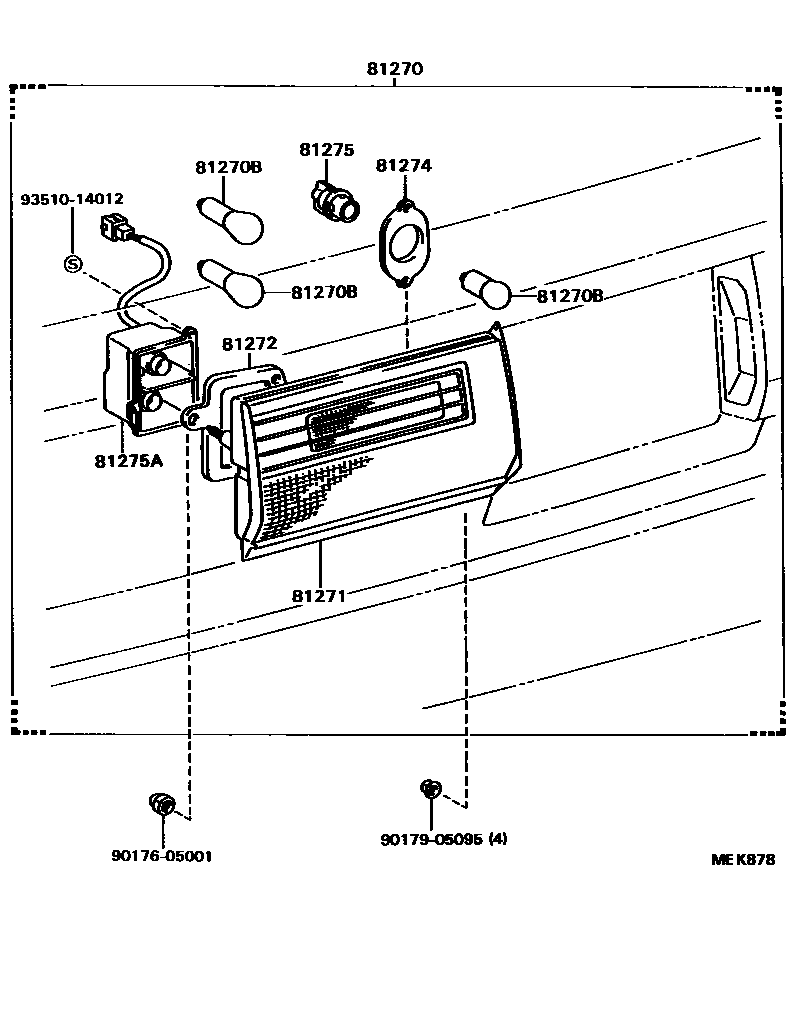

Toyota CAMRY 后牌照灯 — Figure 8113
Toyota CAMRY EPC diagram 8113, 后牌照灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-32060 · 81270-32061 · 81690-32030 · 81690-32031 |
| 81270B | Bulb (for license plate light) | 90981-12012 · 90981-12019 · 99132-11210 · 99132-11230 |
| 81271 | license plate lamp shade | 81271-32060 · 81271-32061 · 81691-32030 · 81691-32031 |
| 81272 | License plate lamp shade gasket | 81272-32060 |
| 81274 | License plate light body gasket | 81274-32060 |
| 81275 | License plate lamp holder and wiring harness | 81275-12260 |
| 81275A | License plate light wire | 81275-32060 · 81275-32061 · 81695-32030 · 81695-32031 |
