Toyota CAMRY 前示宽灯 — Figure 8104

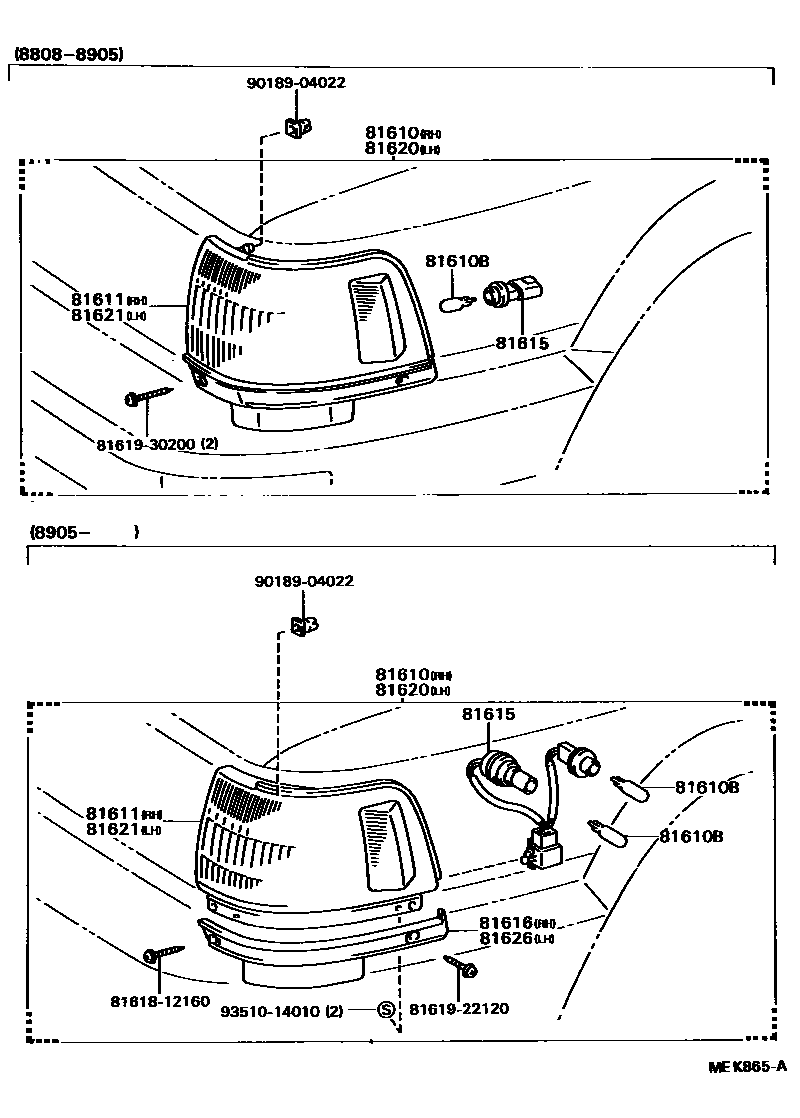

Toyota CAMRY EPC diagram 8104, 前示宽灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-32070 · 81610-32150 · 81610-32151 |
| 81610B | Bulbs (for parking lights and side lights) | 99132-12050 |
| 81611 | Right parking light and width indicator light cover | 81611-32070 · 81611-32150 |
| 81615 | Width light lamp holder and wiring harness | 81615-32150 · 81735-12180 |
| 81616 | Right parking light and width indicator bezel | 81616-32060 |
| 81620 | Left parking light and width indicator light assembly | 81620-32070 · 81620-32150 · 81620-32151 |
| 81621 | Left parking light and width indicator light cover | 81621-32070 · 81621-32150 |
| 81626 | Left parking light and width indicator bezel | 81626-32060 |
