Toyota CAMRY Headlamp — Figure 8101

Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 7 PNC and OE references.

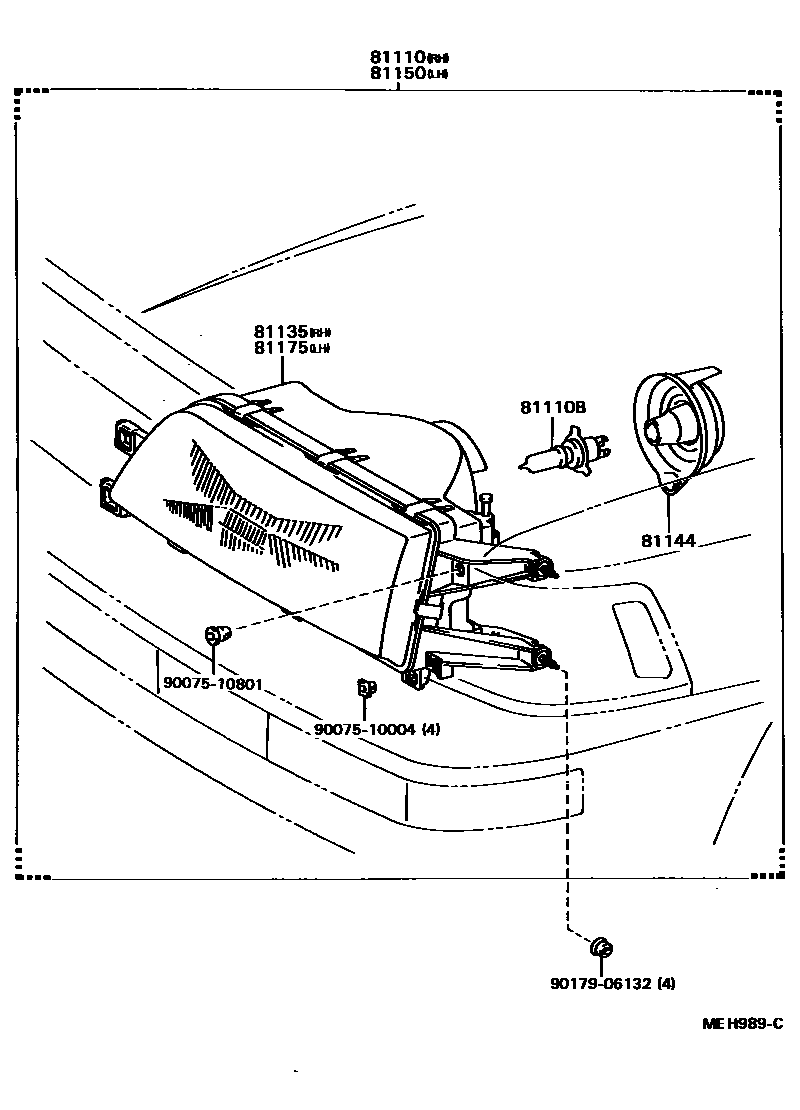

Toyota CAMRY Headlamp EPC diagram — MEH989C
Headlamp — MEH989C (198808 – 198905)

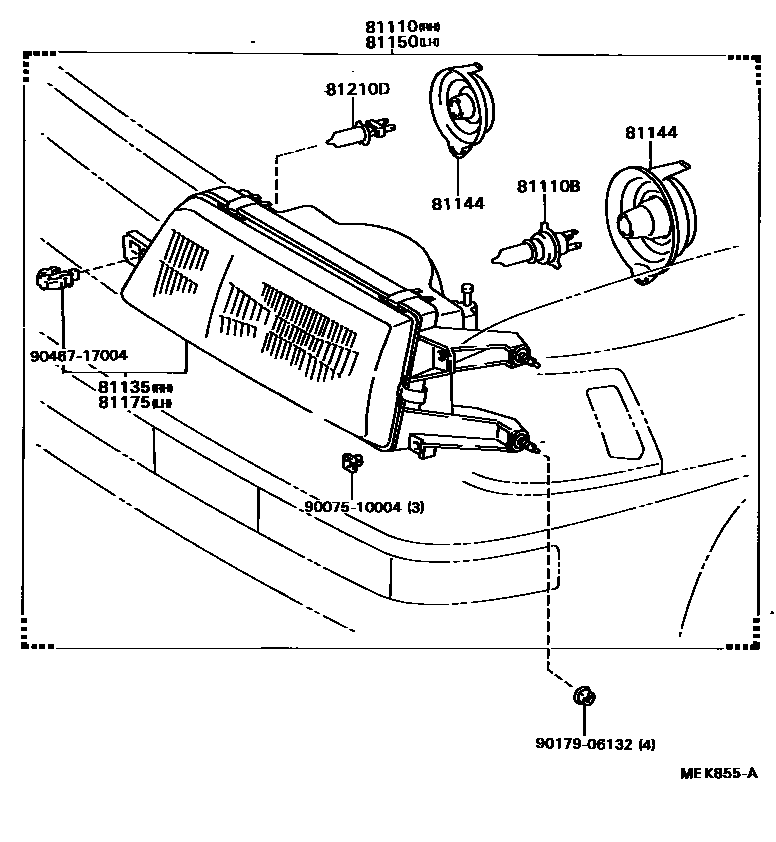

Toyota CAMRY Headlamp EPC diagram — MEK855A
Headlamp — MEK855A (198905 – 999999)

PNC and OE references

PNCPart nameOE numbers
81110Right headlight assembly81110-32190 · 81110-32240
81110BBulb (for headlight No. 1)90981-13015
81135Right headlight assembly assembly81130-32190 · 81130-32240
81144No. 1 headlight cover81125-32240 · 81139-20730 · 90075-99002
81150Left headlight assembly81150-32190 · 81150-32240
81175Left headlight assembly assembly81170-32190 · 81170-32240
81210Dfog light bulb90981-13018 · 90981-13031
