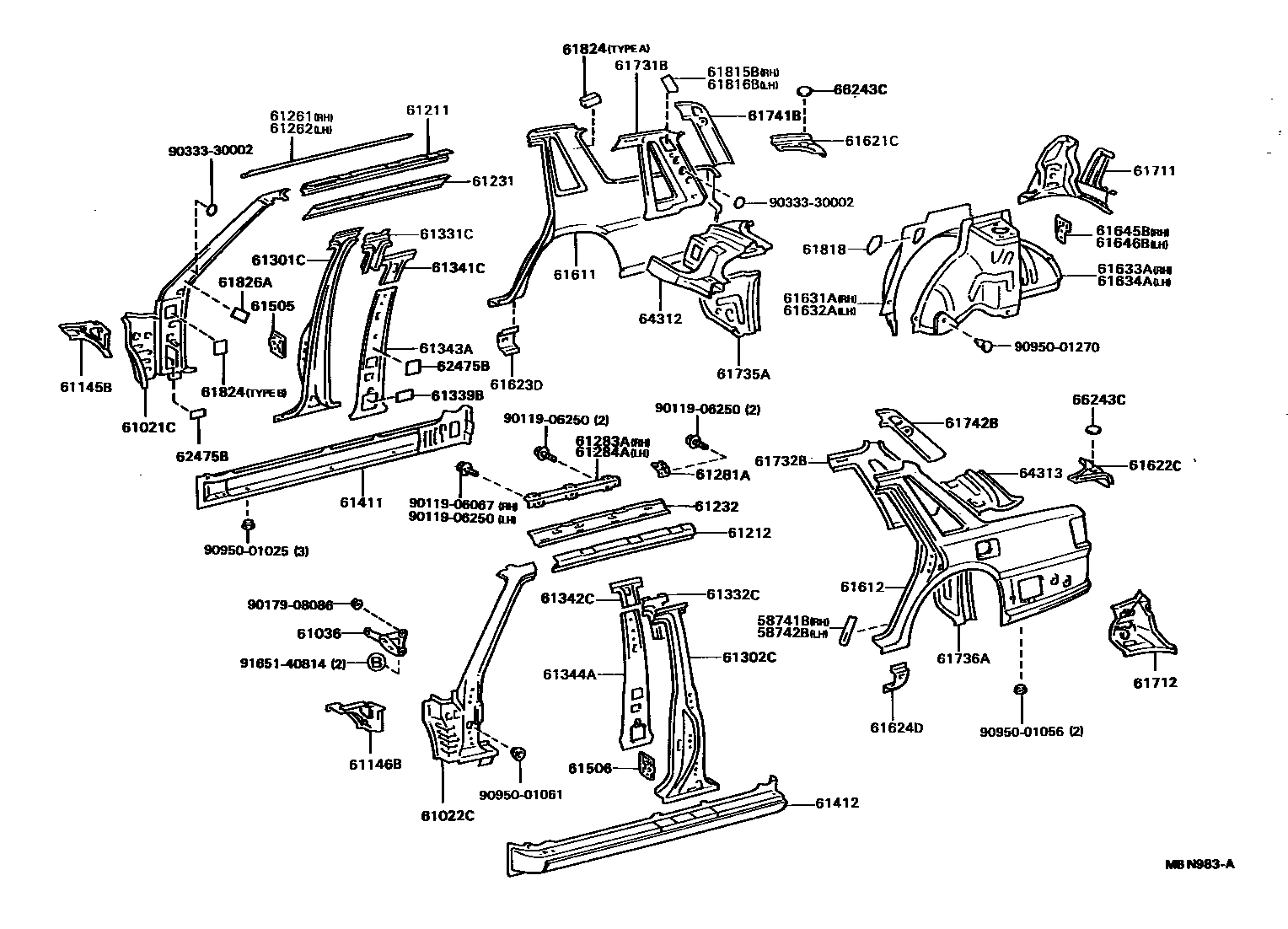

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 1 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-32010 |
| 58742B | Left side enclosure protection panel | 58742-32010 |
| 61021C | Right body front pillar sub-assembly | 61021-32300 |
| 61022C | Left body front pillar sub-assembly | 61022-32320 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61166-32010 |
| 61145B | Right body front pillar lower corner panel | 61145-32010 |
| 61146B | Left body front pillar lower corner panel | 61146-32010 |
| 61211 | Roof right outer longitudinal beam | 61211-32030 |
| 61212 | Roof left outer longitudinal beam | 61212-32030 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-32140 |
| 61232 | Roof left inner longitudinal beam | 61232-32140 |
| 61261 | Drainage channel on the right side of the roof | 61261-32030 |
| 61262 | Drainage channel on the left side of the roof | 61262-32030 |
| 61281A | Sliding sunroof frame No. 1 side mounting bracket | 61281-32030 |
| 61283A | Sliding sunroof frame No. 3 right side mounting bracket | 61283-32030 |
| 61284A | Sliding sunroof frame No. 3 left mounting bracket | 61284-32030 |
| 61301C | Right body outer center pillar sub-assembly | 61301-32900 |
| 61302C | Left body outer center pillar sub-assembly | 61302-32900 |
| 61331C | Right outer center pillar reinforcement | 61331-32010 |
| 61332C | Reinforcement member on the left outer center pillar | 61332-32010 |
| 61339B | No. 1 body inner center pillar seal | 61339-32010 |
| 61341C | Right inner middle pillar | 61341-32040 |
| 61342C | Left side inner center pillar | 61342-32040 |
| 61343A | Right body inner center pillar | 61343-32900 |
| 61344A | Left body inner center pillar | 61344-32900 |
| 61411 | Right door outer sill panel | 61401-32050 |
| 61412 | Left door outer sill panel | 61402-32050 |
| 61505 | Right front door latch reinforcement sub-assembly | 61505-32020 |
| 61506 | Left front door latch reinforcement sub-assembly | 61505-32020 |
| 61611 | Right side hoarding | 61601-32919 |
| 61612 | left side panel | 61602-32933 |
| 61621C | Luggage right opening slot | 61621-32030 |
| 61622C | Luggage trunk left opening slot | 61622-32030 |
| 61623D | Right front side panel extension | 61623-32020 · 61623-32021 |
| 61624D | Left front side panel extension | 61624-32020 · 61624-32021 |
| 61631A | Right wheel cover outer panel | 61631-32030 |
| 61632A | Left side wheel cover outer panel | 61632-32030 |
| 61633A | Right wheel housing lining panel | 61603-32903 |
| 61634A | Left side wheel housing lining panel | 61604-32903 |
| 61645B | Right rear side wheel housing corner panel | 61645-32030 |
| 61646B | Left rear side wheel housing corner panel | 61646-32020 |
| 61711 | Roof right side outer panel | 61711-32900 |
| 61712 | Roof left outer panel | 61712-32900 |
| 61731B | Roof right inner panel | 61731-32030 · 61731-32040 |
| 61732B | Roof left inner panel | 61732-32030 · 61732-32040 |
| 61735A | Right rear roof inner panel | 61735-32901 |
| 61736A | Left rear roof inner panel | 61736-32901 |
| 61741B | Rear window opening right reinforcement | 61741-32900 |
| 61742B | Rear window opening left reinforcement | 61742-32900 |
| 61815B | Right inner upper cover of the roof | 61815-32020 |
| 61816B | Roof left inner upper cover | 61815-32020 |
| 61818 | Inner roof cover | 61817-32020 |
| 61824 | Noise Control Panel No. 1 | 61824-12010 · 61824-32020 · 61825-30020 · 62475-12040 |
| 61826A | Noise Control Panel No. 3 | 62939-23010 |
| 62475B | Roof inner seal | 62475-87001 |
| 64312 | Glove box right bracket | 64312-32900 |
| 64313 | Glove box left bracket | 64313-32900 |
| 66243C | Rear body protection piece No. 1 | 66243-20010 |
