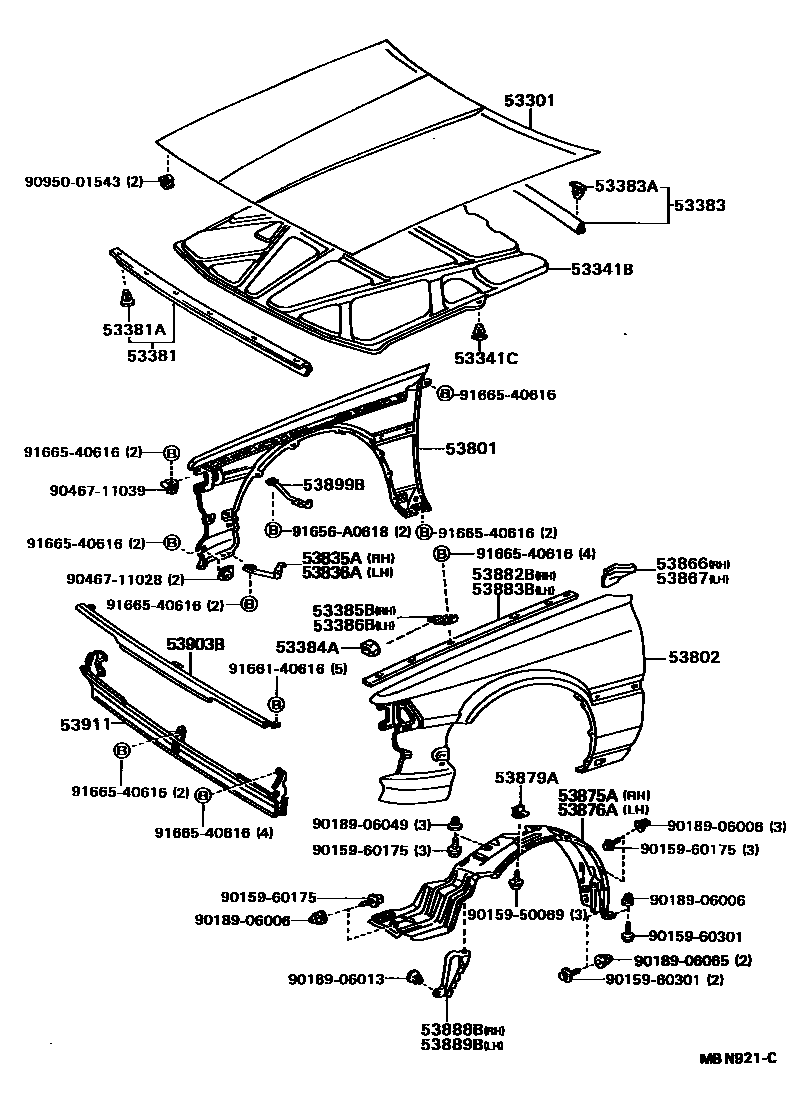

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-32051 |
| 53341B | engine cover gasket | 53341-32030 |
| 53341C | Clip (for engine cover gasket) | 90467-09006 |
| 53381 | Engine cover to radiator bracket seal | 53381-32020 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53383 | Engine cover to cowl upper cover seal | 53383-32020 |
| 53383A | Clamp (for engine cover to cowl upper cover seal) | 90467-08044 |
| 53384A | fender to engine cover buffer block | 53384-14030 |
| 53385B | Right side bracket (fender to engine cover bumper) | 53385-14010 · 53385-20020 |
| 53386B | Left side bracket (fender to engine cover bumper) | 53386-14010 · 53386-20020 |
| 53801 | Right front fender sub-assembly | 53801-32080 |
| 53802 | Left front fender sub-assembly | 53802-32070 |
| 53835A | Right front fender to fender stay | 53835-32020 |
| 53836A | Left front fender to fender stay | 53835-32020 |
| 53866 | Right front fender to cowl side seal | 53866-32020 |
| 53867 | Left front fender to cowl side seal | 53867-32020 |
| 53875A | Right front fender lining | 53875-32020 |
| 53876A | Left front fender lining | 53876-32020 |
| 53879A | Front fender lining fixing parts | 53879-14010 |
| 53882B | Right front fender seal | 53882-32020 |
| 53883B | Left front fender seal | 53882-32020 |
| 53888B | No. 2 right front fender splash guard seal | 53888-32010 |
| 53889B | No. 2 left front fender splash guard seal | 53889-32010 |
| 53899B | front fender bracket | 53899-32010 |
| 53903B | Front end plate sub-assembly | 53903-32020 · 53903-32060 |
| 53911 | front fender | 53901-32020 |
