Toyota CAMRY radiator grille — Figure 5301

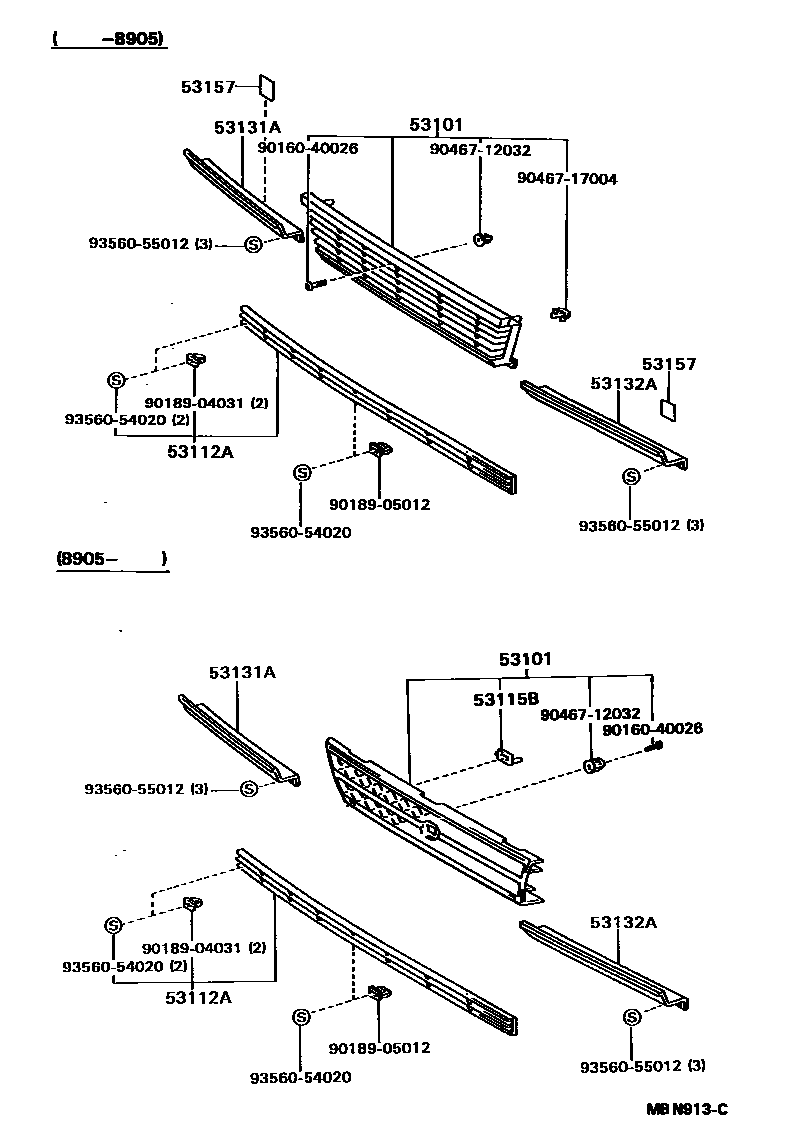

Toyota CAMRY EPC diagram 5301, radiator grille, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53101 | Radiator grille sub-assembly | 53101-32100 · 53101-32140 |
| 53112A | Lower radiator grille | 53112-32010 |
| 53115B | Radiator grille bracket | 53115-32010 |
| 53131A | Right headlight lampshade | 53131-32090 · 53131-32110 |
| 53132A | Left headlight lampshade | 53132-32080 · 53132-32110 |
| 53157 | Headlight housing seal | 53157-32010 |
