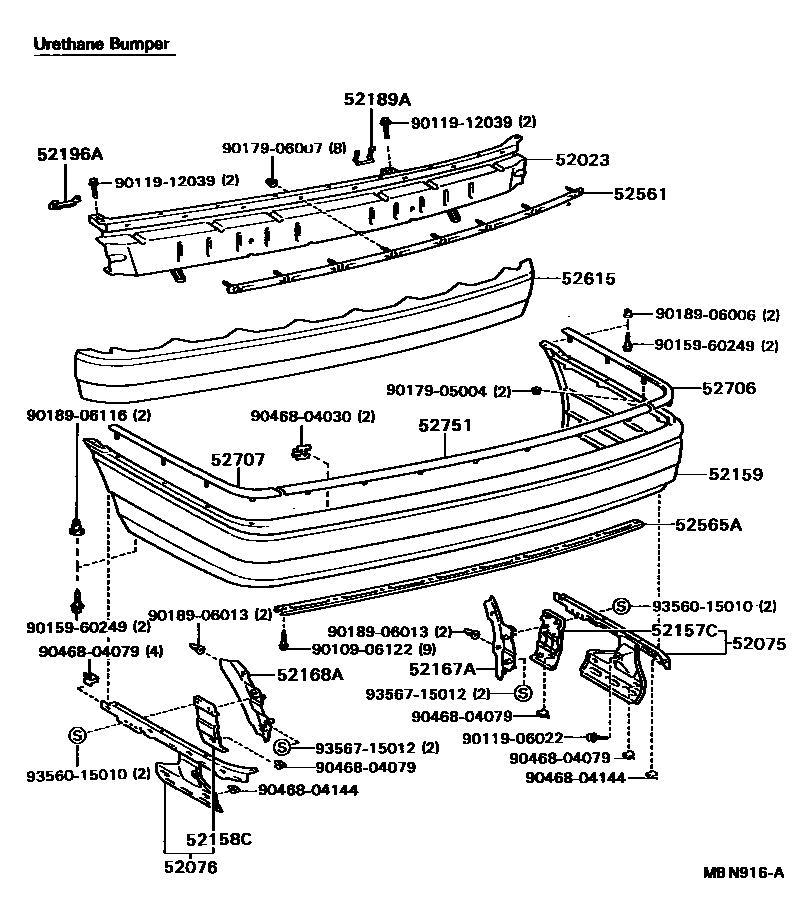

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-32130 |
| 52075 | Rear bumper right side fixing part sub-assembly | 52075-32010 |
| 52076 | Rear bumper left side fixing part sub-assembly | 52076-32010 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-32050 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-32030 |
| 52159 | rear bumper cover | 52159-32909 |
| 52167A | Rear bumper No. 4 right side bracket | 52167-32020 |
| 52168A | Rear bumper No. 4 left side bracket | 52168-32020 |
| 52189A | Rear bumper right arm edge guard | 52189-32010 |
| 52196A | Rear bumper left arm edge guard | 52196-32030 |
| 52561 | Rear bumper upper center fixing bracket | 52561-32010 |
| 52565A | Rear bumper lower fixing bracket | 52565-32040 |
| 52615 | Rear bumper energy absorber | 52615-32070 |
| 52706 | Rear bumper right side protective strip sub-assembly | 52706-32030 |
| 52707 | Rear bumper left protection strip sub-assembly | 52707-32030 |
| 52751 | Rear bumper protection strip | 52751-32030 |
