Toyota CAMRY 制动配管和卡箍 — Figure 4708

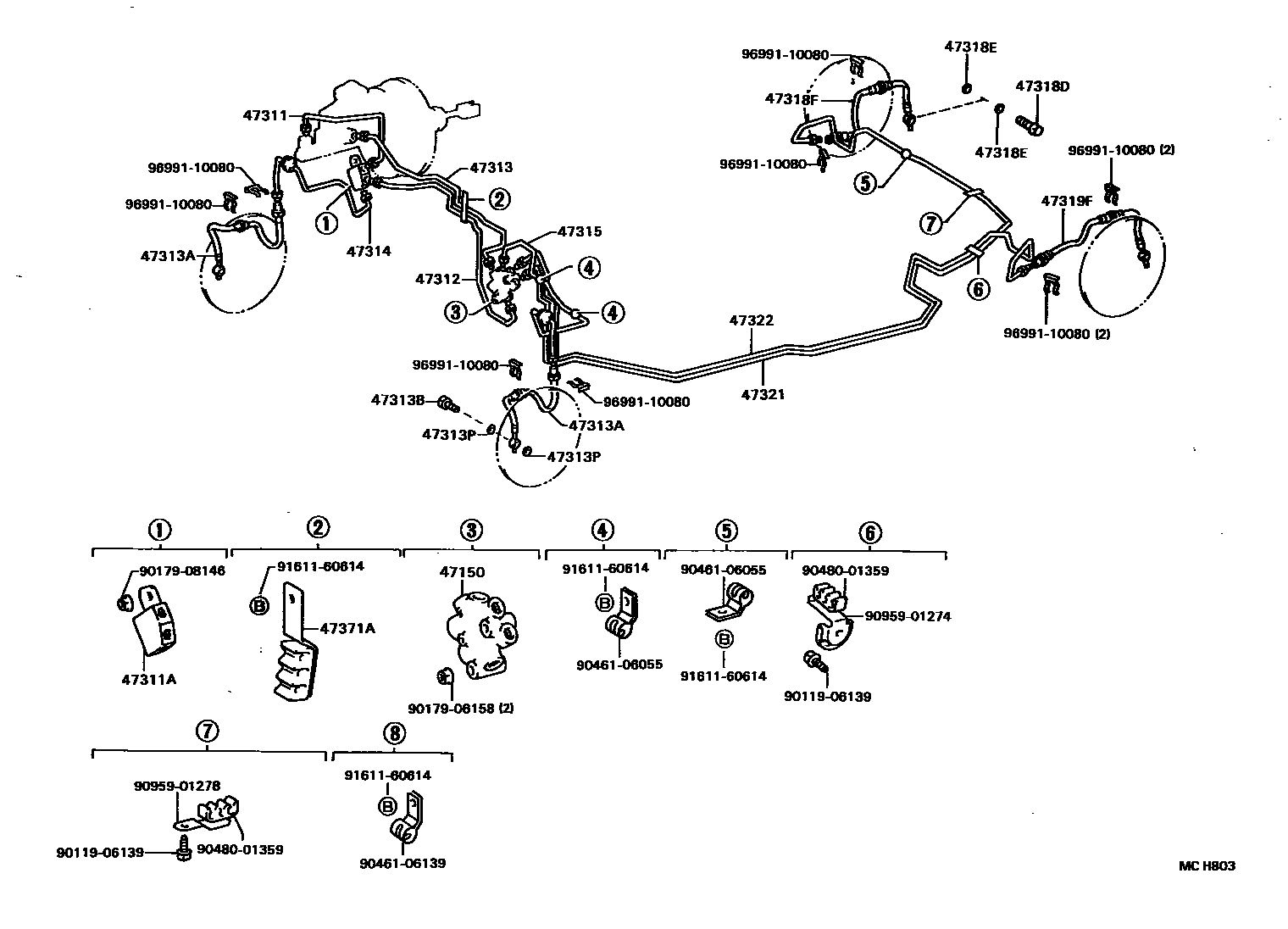

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 1 images and 17 PNC and OE references.

Toyota CAMRY 制动配管和卡箍 EPC diagram — MCH803
制动配管和卡箍 — MCH803 (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
47150Proportional valve assembly47150-20140
47311No. 1 front brake pipe47311-32080
47311APipe fitting (for front brake pipe)90413-10193
47312No. 2 front brake pipe47312-32130
47313No. 3 front brake pipe47313-32120
47313ANo. 1 front flexible hose90947-02496 · 90947-02540
47313BConnector bolt (for front flex hose)90401-10015
47313PGasket (for front flex hose)90430-10074
47314No. 4 front brake pipe47314-32080
47315No. 5 front brake pipe47315-32060
47318DConnector bolt (for rear flex hose)90401-10015
47318EGasket (for rear flex hose)90430-10074
47318FRight rear flexible hose90947-02498
47319FLeft rear flexible hose90947-02498
47321No. 1 rear brake pipe47321-32110
47322No. 2 rear brake pipe47322-32100
47371ANo. 1 brake pipe clamp47371-32010
