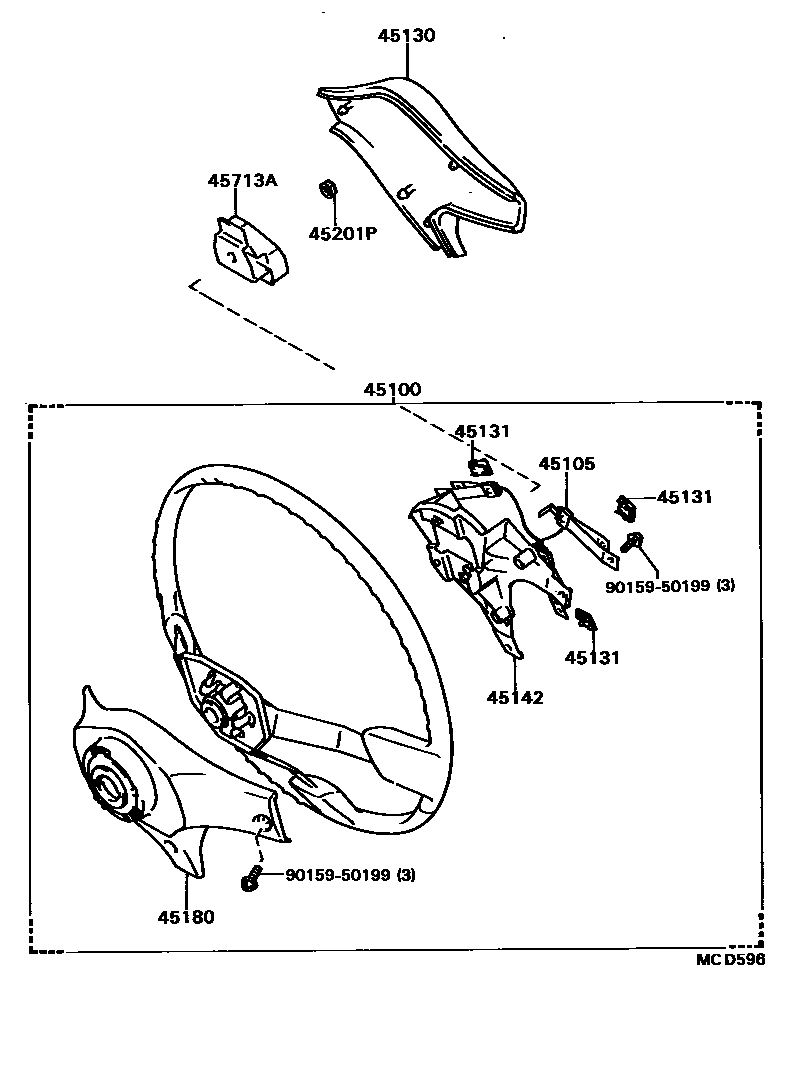

Toyota CAMRY Steering Wheel — Figure 4504
Toyota CAMRY EPC diagram 4504, Steering Wheel, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45105 | No. 1 horn button contact piece sub-assembly | 45105-32080 |
| 45131 | Speaker button No. 1 | 45131-32060 |
| 45142 | No. 1 horn button contact seat | 45142-32070 |
| 45201P | Steering wheel fixing nut | 90179-12086 |
| 45713A | steering damper | 45713-32030 |
