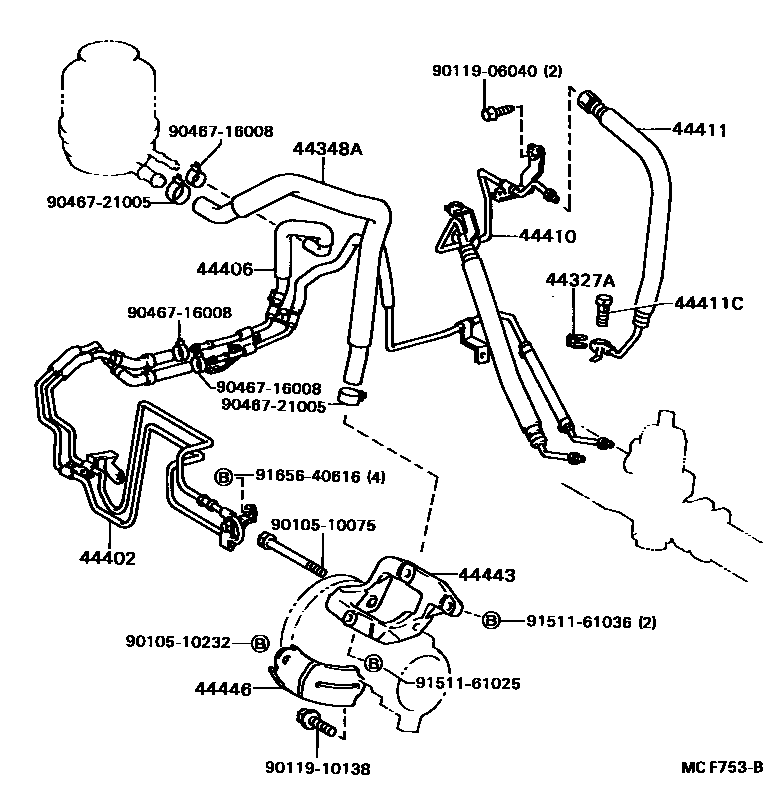

Toyota CAMRY 动力转向配管 — Figure 4503
Toyota CAMRY EPC diagram 4503, 动力转向配管, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-32120 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-32090 |
| 44406 | Oil return pipe sub-assembly | 44406-32090 |
| 44410 | Pressure supply pipe assembly | 44410-32240 |
| 44411 | pressure supply hose | 44411-32080 |
| 44411C | Connector bolt (for pressure supply hose) | 90401-16008 |
| 44443 | pump bracket | 44443-32041 |
| 44446 | Adjust the stand | 44446-32010 |
