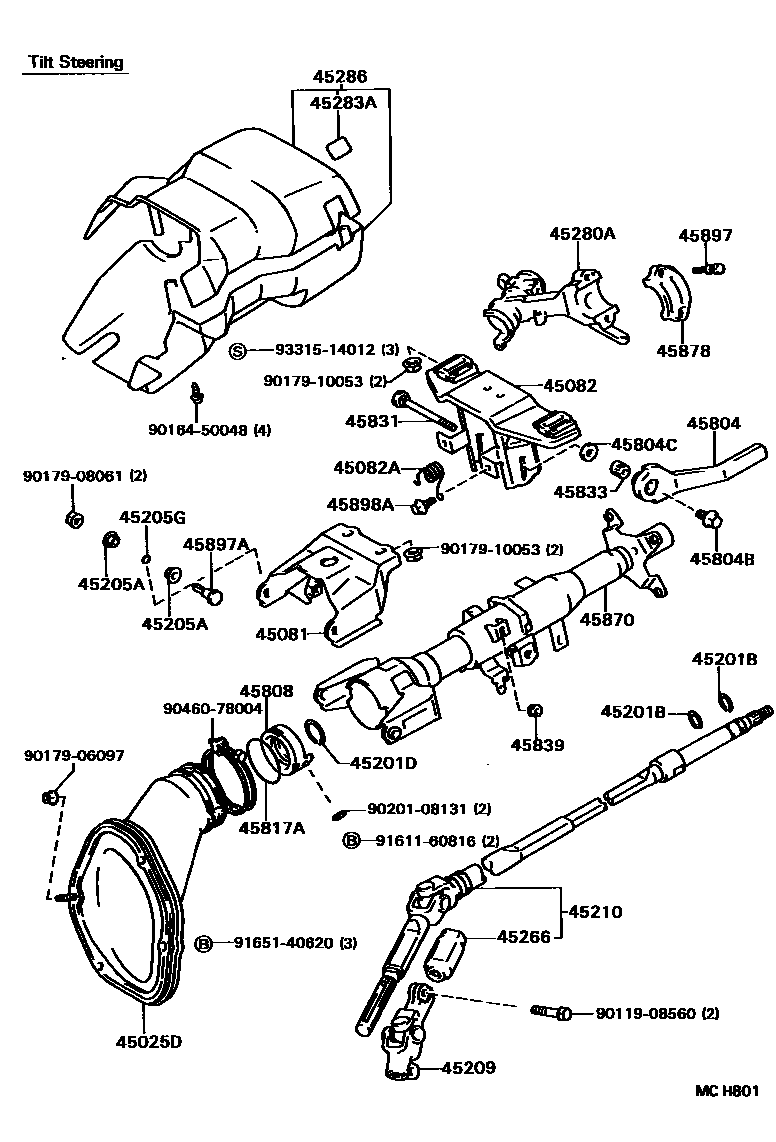

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-32070 · 45025-32110 |
| 45081 | Tilt-adjustable steering bracket sub-assembly | 45081-32070 |
| 45082 | Separate bracket sub-assembly with enclosure | 45082-32020 |
| 45082A | Torsion spring (for tilt-adjustable steering column return) | 90508-29015 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17196 |
| 45201D | Ring (for steering spindle) | 90520-28061 |
| 45205A | Bushing (for steering column tube) | 90389-11005 |
| 45205G | O-ring (for steering column tube) | 90301-11005 |
| 45209 | Steering slip fork sub-assembly | 45209-32020 |
| 45210 | Steering spindle assembly | 45210-32110 |
| 45266 | Steering intermediate shaft dust cover | 45266-20010 |
| 45280A | Steering column upper bracket assembly | 45280-32150 |
| 45283A | Beam change and turn signal warning plate | 45283-22010 |
| 45804 | Steering tilt adjustment lever sub-assembly | 45804-20010 |
| 45804B | Bolt (for steering tilt adjustment lever) | 90105-08060 |
| 45804C | Flat washer (for steering tilt adjustment lever) | 90201-08029 |
| 45808 | Steering shaft thrust stop sub-assembly | 45808-32010 · 45808-32020 |
| 45817A | O-ring (for steering shaft thrust stop) | 90301-54002 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-20010 |
| 45833 | Tilt-adjustable steering column adjustment nut No. 1 | 45833-20010 |
| 45839 | return spring seal | 45839-20010 |
| 45870 | Steering column tube assembly | 45870-32080 · 45870-32081 |
| 45878 | Steering column upper bracket | 45878-32030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-26010 |
| 45898A | return spring fixing bolt | 45898-20020 |
