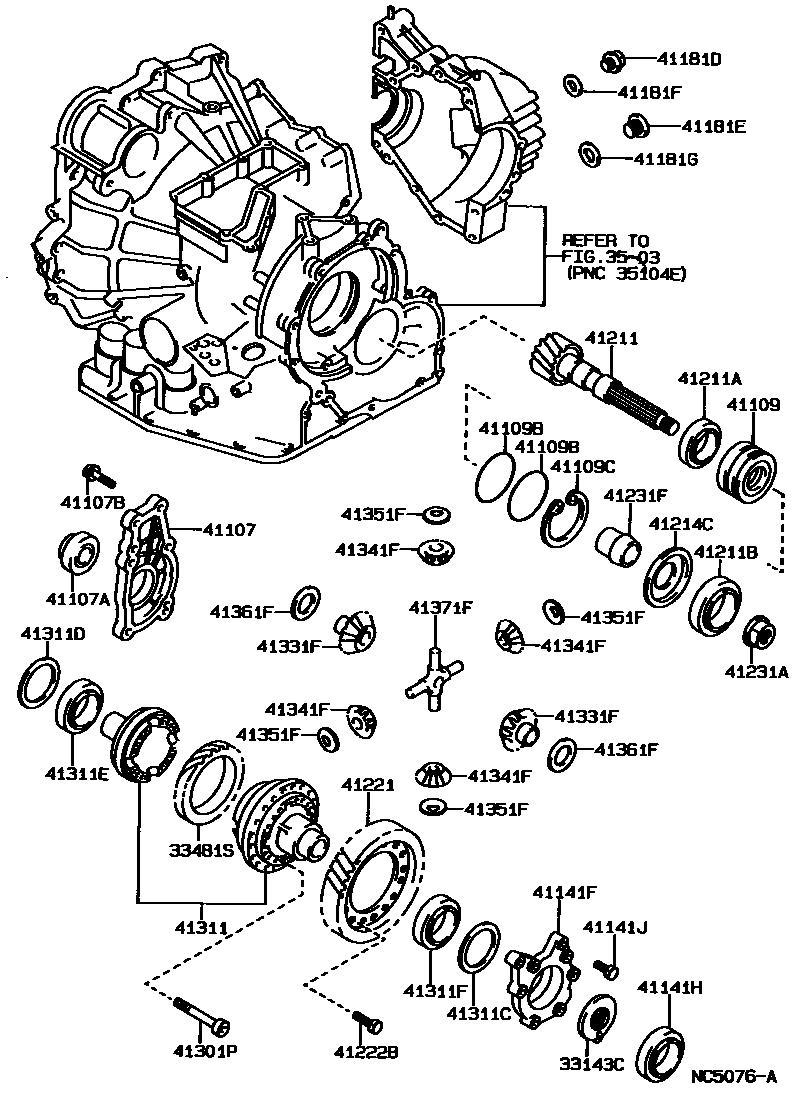

Toyota CAMRY 前桥壳和差速器 — Figure 4301
Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 1 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33143C | Front differential oil baffle | 33143-32010 |
| 33481S | Speedometer driving gear (ATM) | 33481-32040 |
| 41107 | Front differential oil seal race sub-assembly | 41107-32010 |
| 41107A | Oil seal (for front differential oil seal race) | 90311-40010 |
| 41107B | Bolt (for front differential oil seal race) | 90105-08155 |
| 41109 | Differential driving pinion bearing cover sub-assembly | 41109-32020 · 41109-32030 |
| 41109B | O-ring (for differential drive pinion bearing housing) | 90301-69003 |
| 41109C | Hole snap ring (for differential drive pinion bearing housing) | 90521-79007 · 90521-79008 |
| 41141F | Front differential side bearing retainer | 41101-32020 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-50011 |
| 41141J | Bolt (for front differential side bearing retainer) | 90105-08155 |
| 41181D | Plug (for front differential oil fill port) | 90341-18002 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181F | Gasket (for front differential oil plug) | 90430-18008 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41211 | Differential drive pinion | 41211-32050 · 41211-32051 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-36002 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-40051 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-32020 |
| 41221 | Front differential ring gear | 41221-12240 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12154 |
| 41231A | Drive pinion lock nut | 90179-24006 |
| 41231F | Front differential drive pinion bearing spacer | 41231-32020 |
| 41301P | Screw (for front differential case) | 90149-10004 |
| 41311 | front differential case | 41302-32020 |
| 41311C | Rear gasket (for front differential case) | 90564-76001 · 90564-76002 · 90564-76003 · 90564-76004 · 90564-76005 · 90564-76006 · 90564-76007 · 90564-76008 · 90564-76009 · 90564-76010 · 90564-76011 · 90564-76012 · 90564-76013 · 90564-76014 · 90564-76015 · 90564-76016 · 90564-76017 · 90564-76018 |
| 41311D | Front gasket (for front differential case) | 90564-80001 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-57020 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50030 |
| 41331F | Front differential side gear | 41331-17010 |
| 41341F | Front differential planetary gear | 41341-20020 |
| 41351F | Front differential planetary gear thrust washer | 41351-32020 |
| 41361F | No. 1 front differential side gear thrust washer | 41362-17010 · 41362-17020 · 41362-17030 · 41362-17040 · 41362-17050 · 41362-17060 · 41362-17070 |
| 41371F | Front differential cross shaft | 41371-32010 |
