Toyota CAMRY 后桥半轴和后桥轮毂 — Figure 4102

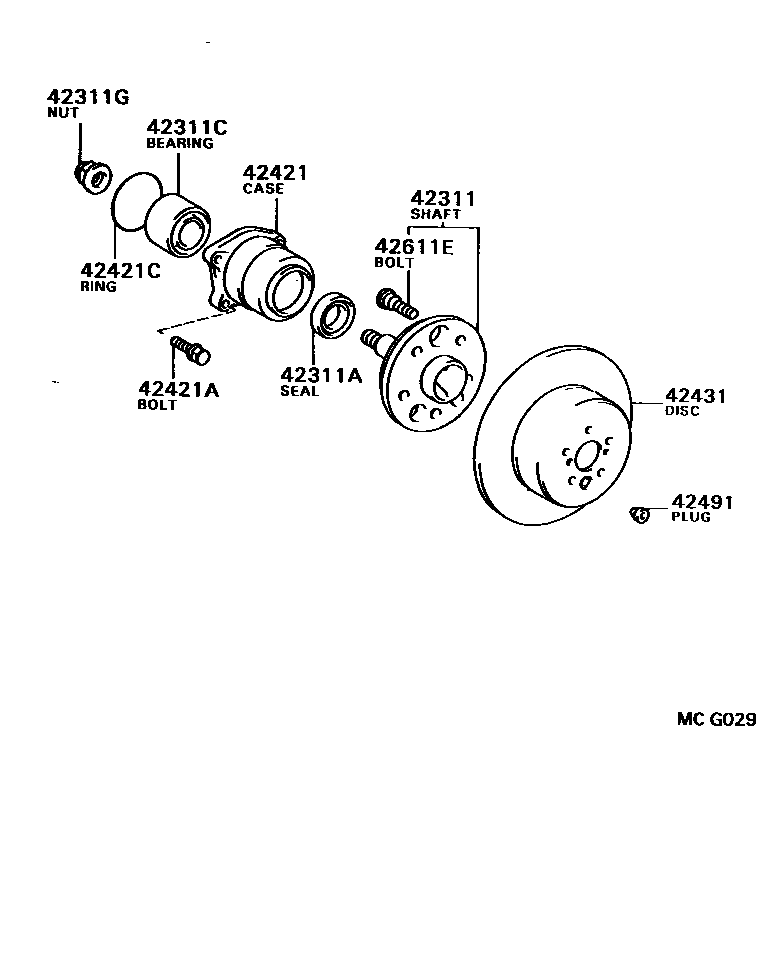

Toyota CAMRY EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311 | Rear axle half shaft | 42301-32031 |
| 42311A | Oil seal (for rear axle half shaft) | 90311-42018 |
| 42311C | Bearings (for rear axle half shaft) | 90369-30044 |
| 42311G | Nut (for rear axle half shaft) | 90179-20003 · 90179-20017 |
| 42421 | Rear axle bearing housing | 42421-20020 |
| 42421A | Bolt (for rear axle bearing housing) | 90105-10124 · 90105-10309 |
| 42421C | O-ring (for rear axle bearing housing) | 90301-63003 |
| 42431 | rear brake disc | 42431-20090 |
| 42491 | Brake shoe adjustment hole plug (for parking brake) | 47491-22020 |
| 42611E | Hub bolts (for rear axle) | 90942-02047 |
