Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514

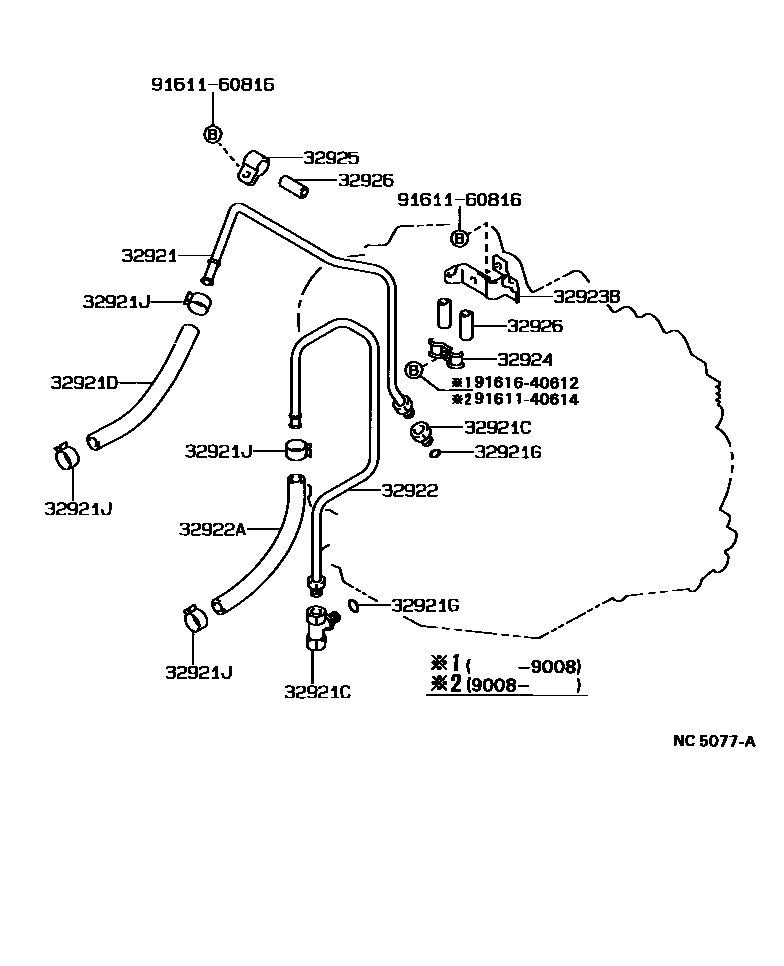

Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-32071 · 32921-32072 |
| 32921C | Fitting (for transmission oil cooler tube) | 32901-32020 · 32901-32050 · 90404-16021 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-32060 · 32941-32150 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-16013 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-32020 · 32922-32021 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-17076 · 90445-17105 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32923-32040 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 90462-12044 |
| 32925 | No. 3 transmission oil cooler pipe clamp | 90461-06207 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-32010 |
